Gravador IP Tiandy TC-R3104 de 4 canais com 4 portas PoE, H.265+, 8MP

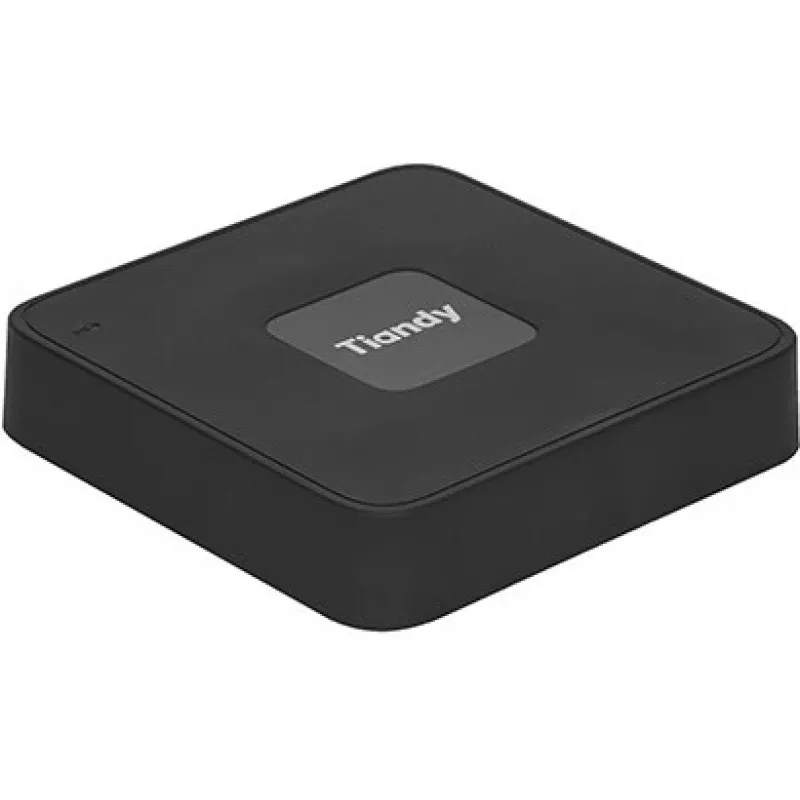

The Tiandy TC-R3104 is a high-performance 4-channel IP video recorder designed for small to medium surveillance systems. With 4 integrated PoE ports (IEEE 802.3af/at), it simplifies installation by powering cameras directly. Supporting H.265+ compression and up to 8MP (4K) recording resolution, it delivers exceptional video quality while saving bandwidth and storage. The recorder features a single SATA HDD bay supporting up to 10TB, HDMI and VGA outputs for local monitoring, and two-way audio via RCA connectors. ONVIF compliance ensures compatibility with a wide range of IP cameras, and the Tiandy View Pro app enables remote viewing via P2P technology.

Advantages

Efficient H.265+ compression reduces storage requirements by up to 50% compared to H.264. Built-in PoE eliminates the need for separate power supplies for cameras. Compact design with low power consumption (<10W without HDD) makes it ideal for cost-effective deployments. Easy setup with plug-and-play camera detection and intuitive mobile app.

Suitable for

• Small retail stores and offices
• Residential surveillance systems
• Warehouses and storage facilities
• Remote monitoring of multiple locations

Key specifications

• Video Input: 4 IP channels
• PoE Ports: 4 x RJ45 (802.3af/at)
• Max Recording Resolution: 8MP (4K)
• Video Output: 1x HDMI, 1x VGA (up to 1920x1080)
• Audio: 1x RCA input, 1x RCA output
• Compression: H.265+, H.265, H.264
• Decoding: 1-ch@8MP or 4-ch@1080P
• HDD Bay: 1 SATA, up to 10TB
• Network: 1x RJ45 10/100Mbps
• USB: 2x USB 2.0
• Power: DC 48V, <10W

Recommendations

For optimal performance, pair with Tiandy or ONVIF-compatible IP cameras. Use a high-quality SATA HDD (e.g., WD Purple or Seagate SkyHawk) for reliable 24/7 recording. Ensure network switch supports PoE if additional cameras are needed.
