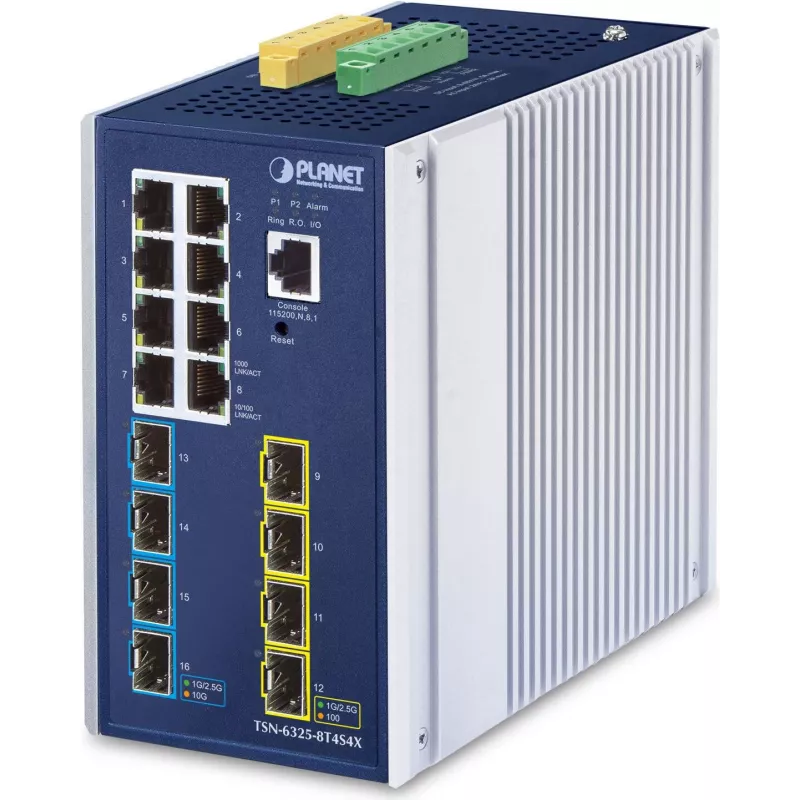

PLANET TSN-6325-8T4S4X switch industrial L3 Managed TSN com 8x GbE RJ45, 4x 1G/2.5G SFP, 4x 10G SFP+

Time-sensitive networking meets industrial-grade Layer 3 routing in the PLANET TSN-6325-8T4S4X. This DIN-rail switch combines eight Gigabit RJ45 ports with four 1G/2.5G SFP and four 10G SFP+ uplinks, delivering deterministic Ethernet for real-time control systems. Unlike conventional industrial switches, it supports IEEE 802.1AS, Qbv, Qbu, Qci, and CB, ensuring precise synchronization and traffic shaping for automation, energy, and transportation networks.

Highlights

• 16-port total: 8x 10/100/1000T RJ45, 4x 1G/2.5G SFP, 4x 10G SFP+
• Full TSN suite: 802.1AS, Qbv, Qbu, Qci, CB for deterministic latency
• Layer 3 routing: static, RIP v1/v2, OSPF v2, VRRP
• Redundant 9-60V DC power input with reverse polarity protection
• IP30 aluminum housing, -40 to 75°C operating range
• DIN-rail and wall-mount options for flexible deployment

In daily use

Deploy this switch on the factory floor or in trackside cabinets without worry. Its fanless design and hardened components withstand vibration, shock, and wide temperature swings. The 128 Gbps switching capacity and 95.23 Mpps forwarding rate handle high-bandwidth video and control traffic with ease. Manage it via web, CLI, or SNMP, and secure access with SSH, SSL, and multi-level passwords. ERPS, RSTP, MSTP, and LACP ensure network resilience, while 16K MAC addresses and 10K jumbo frames support large industrial networks.

Full specifications

• 8x 10/100/1000BASE-T RJ45 ports, auto-negotiation, auto-MDI/MDI-X
• 4x 1G/2.5G SFP slots, 4x 10G SFP+ slots
• Switching capacity: 128 Gbps; forwarding rate: 95.23 Mpps
• MAC address table: 16K entries; jumbo frame: 10K bytes
• VLAN: IEEE 802.1Q tagged, Q-in-Q, GVRP; private VLAN
• Redundancy: ERPS (ITU-T G.8032), RSTP, MSTP, LACP
• Layer 3: static route, RIP v1/v2, OSPF v2, VRRP
• Management: web, CLI (Telnet/SSH), SNMP v1/v2c/v3, SSL
• Power input: 9-60V DC redundant, terminal block; power consumption max: 24W
• Operating temperature: -40 to 75°C; storage: -40 to 85°C
• Operating humidity: 5% to 95% non-condensing; storage: 5% to 95%
• Dimensions (W x D x H): 72 x 152 x 105 mm; weight: 1.1 kg
• MTBF: 500,000 hours; compliance: CE, FCC, RoHS
• LED indicators: power, link/activity per port, alarm

Final note

The TSN-6325-8T4S4X is a future-proof investment for industrial networks where timing is critical and downtime is not an option.
