Switch Ethernet Gigabit não gerido PLANET IP30 Industrial 8 portas

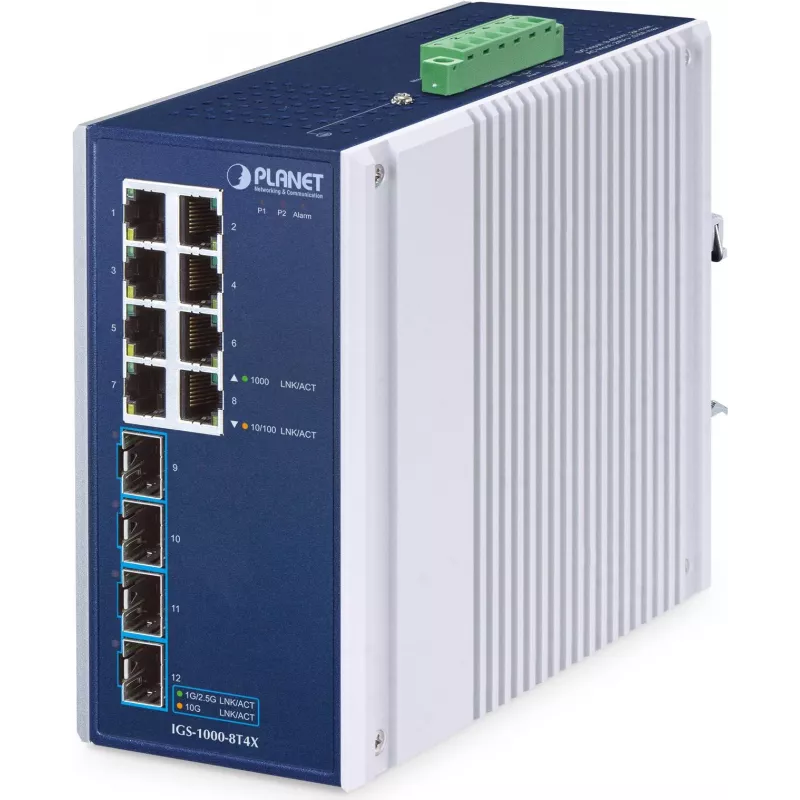

The PLANET IP30 Industrial 8-Port Unmanaged Gigabit Ethernet Switch (IGS-1000-8T4X) provides reliable industrial Ethernet connectivity with eight 10/100/1000BASE-T ports and four 1G/2.5G/10G SFP+ fiber uplink ports. Designed for harsh environments, the DIN-rail, IP30 metal housing supports an operating temperature range of -40 to 75 °C and dual 9–48 V DC power inputs for improved availability. The switch offers a non-blocking switching fabric with up to 96 Gbps switching capacity and plug-and-play operation for simple deployment.

Advantages

The device delivers high-speed uplinks via 10G SFP+ ports for backbone and server connections while maintaining gigabit access on copper ports. Its rugged IP30 metal enclosure and wide temperature tolerance enable stable operation in industrial settings without active cooling. Redundant DC power inputs and built-in ESD and surge protection increase system reliability and protect network equipment from electrical disturbances. The unmanaged design allows straightforward, maintenance-free installation.

Suitable for

• Industrial LAN backbone connections and remote aggregation
• High-bandwidth applications such as video streaming and virtualization
• Transporting data over long distances using 10G SFP+ fiber links
• Factory floors, traffic control cabinets, and other hardened environments

Key specifications

• Ports: 8 × 10/100/1000BASE-T RJ-45; 4 × 1G/2.5G/10G SFP+ slots
• Switching capacity: 96 Gbps
• Power input: Dual 9–48 V DC
• Operating temperature: -40 to 75 °C
• Housing: IP30 metal, DIN-rail mountable
• Protection: Ethernet ESD (contact ±6 kV, air ±8 kV) and ±6 kV surge immunity
• Weight: 1.211 kg

How to use

Mount the IGS-1000-8T4X on a DIN rail or wall-mount per installation requirements and connect the DC power supplies to the dual power inputs (9–48 V DC). Plug copper devices into the RJ-45 ports and insert compatible SFP/SFP+ transceivers into the SFP+ slots for fiber uplinks. The switch is unmanaged and operates in plug-and-play mode, requiring no additional configuration. When using fiber, select appropriate multimode or single-mode transceivers to achieve the desired distance.

Recommendations

Use single-mode 10G SFP+ transceivers for long-distance links (several kilometers) and multimode 10G transceivers for shorter runs (up to ~300 meters). Provide redundant DC power sources when high availability is needed and install the switch in a location that meets the specified temperature and EMI conditions.
