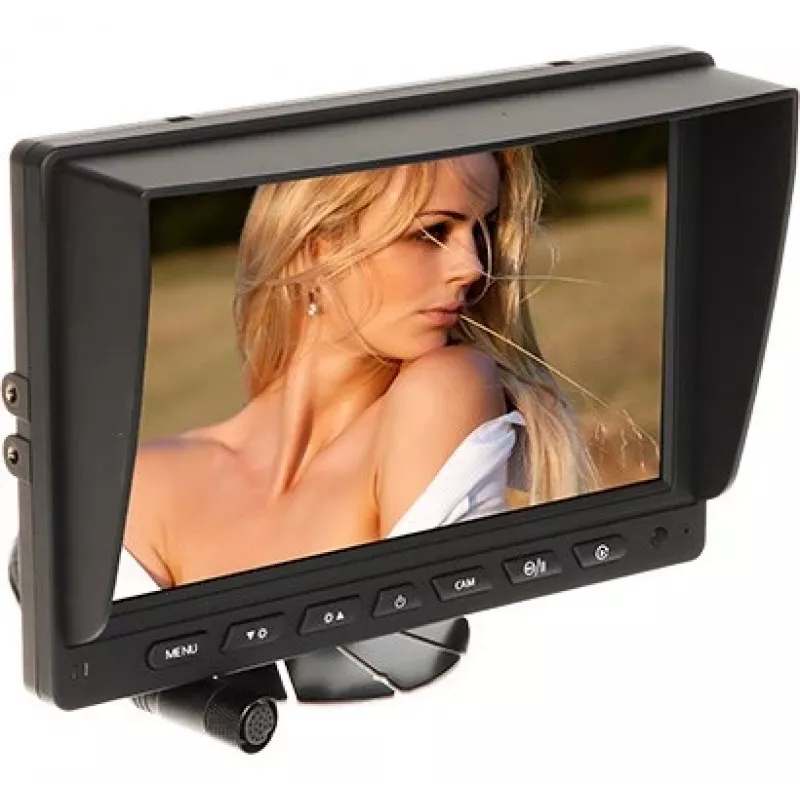

Gravador móvel com monitor 9 polegadas 4 canais AHD/CVBS ATE-NTFT9-4CH-T3

The ATE-NTFT9-4CH-T3 is a professional mobile recorder with a built-in 9-inch TFT LCD monitor, designed for vehicle surveillance systems. It supports 4-channel AHD (720P/1080P) and CVBS (960H) video inputs with auto-sensing, ensuring compatibility with various camera types. The device records in H.264 compression at up to 1080P resolution per channel, providing clear and detailed footage. With dual SD card slots supporting up to 256GB each (512GB total), it offers ample storage for extended recording. The recorder features multiple recording modes including manual, scheduled, motion detection, G-sensor triggered, and alarm input, making it versatile for security needs.

Advantages

This mobile recorder combines a high-resolution monitor with advanced recording capabilities, offering real-time viewing and playback. The 9-inch display provides a clear view of all four camera feeds simultaneously or individually. The auto-sensing AHD/CVBS input ensures easy integration with existing cameras. The built-in G-sensor automatically locks and protects footage upon impact, crucial for accident evidence. The wide power input range (DC 9V-36V) makes it suitable for various vehicles including cars, trucks, buses, and RVs.

Suitable for

• Fleet management and vehicle security
• Public transportation (buses, trains)
• Taxi and ride-sharing services
• Emergency vehicles (ambulances, police cars)
• Construction and heavy machinery
• RV and camper surveillance

Key specifications

• Monitor: 9-inch TFT LCD, 1024x600 pixels
• Video Input: 4 channels, AHD (720P/1080P) / CVBS (960H) auto-sensing
• Video Compression: H.264
• Recording Resolution: Up to 1080P per channel
• Recording Frame Rate: 25/30 fps per channel (adjustable)
• Storage: Dual SD card slots, up to 256GB each (512GB total)
• Power Input: DC 9V-36V
• Operating Temperature: -20°C to +70°C
• Audio: 4 channels input, 1 channel output
• Recording Modes: Manual, scheduled, motion detection, G-sensor, alarm
• G-Sensor: Built-in
• Trigger Inputs: 4 (reverse, left/right turn, brake)
• Video Output: 1x RCA for external display
• System Features: OSD menu, multi-language, time/date stamp

Recommendations

For optimal performance, use high-endurance SD cards rated for continuous recording. Ensure proper power connection within the specified voltage range. The device supports loop recording to overwrite old footage when storage is full. For installation, consult a professional to integrate trigger inputs and cameras.
