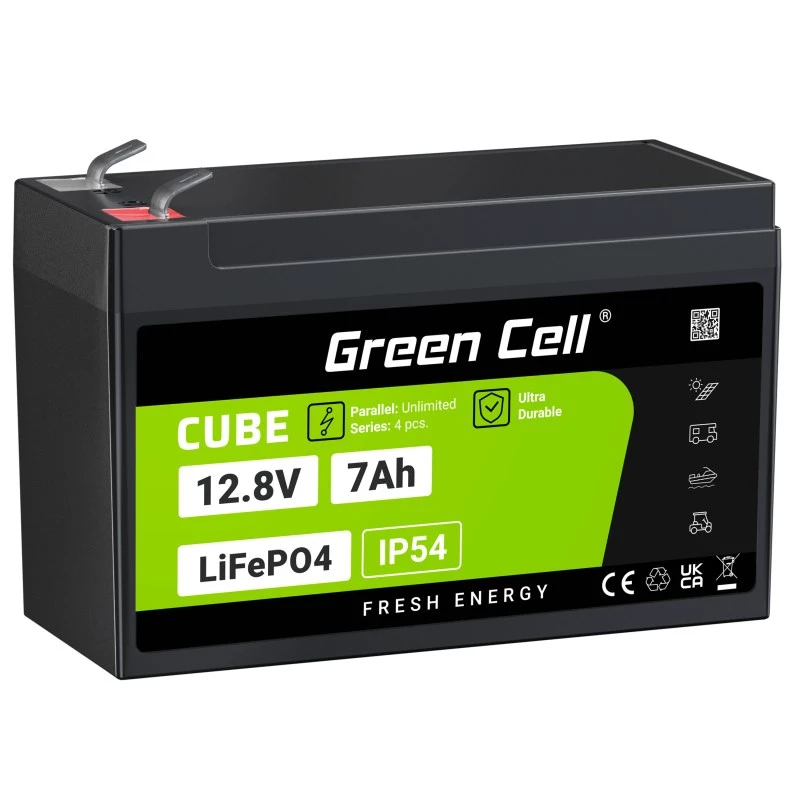

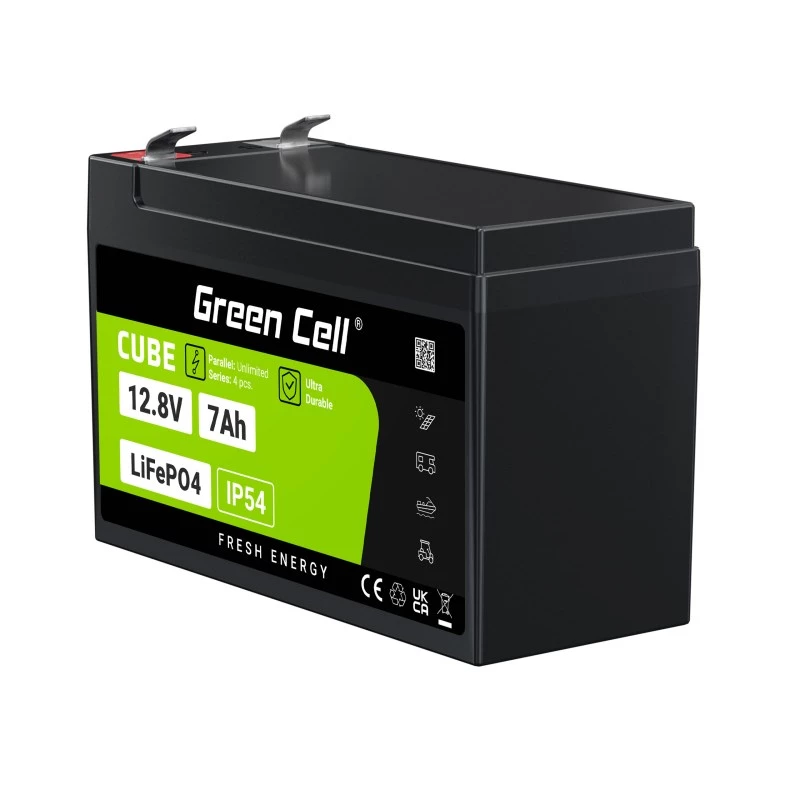

Green Cell LFPGC12V7AH Bateria UPS Lítio-Ferro-Fosfato (LiFePO4) 12,8 V 7 Ah

The Green Cell LFPGC12V7AH is a high-performance Lithium Iron Phosphate (LiFePO4) UPS battery designed to replace standard 12V 7Ah SLA batteries. With a nominal voltage of 12.8V and a capacity of 7Ah (89.6Wh), it offers superior energy density, longer cycle life, and built-in BMS protection. Ideal for UPS systems, alarm systems, toys, CCTV, and telecom equipment.

Advantages

LiFePO4 chemistry provides over 2000 cycles at 100% DoD, lightweight design, and stable performance across a wide temperature range. The built-in Battery Management System (BMS) ensures safe charging and discharging, preventing overvoltage, undervoltage, overcurrent, and short circuits.

Suitable for

• UPS backup power systems
• Alarm and security systems
• CCTV cameras and DVRs
• Telecom equipment
• Toys and hobby projects
• Replacement for 12V 7Ah/9Ah/12Ah SLA batteries

Key specifications

• Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 12.8 V
• Capacity: 7 Ah
• Energy: 89.6 Wh
• Max Continuous Discharge Current: 10 A
• Peak Discharge Current: 20 A (3 seconds)
• Max Charge Current: 7 A
• Recommended Charge Voltage: 14.4 V - 14.6 V
• Discharge Cut-off Voltage: 10 V
• Cycle Life: >2000 cycles (100% DoD), >3500 cycles (80% DoD)
• Built-in BMS: Yes

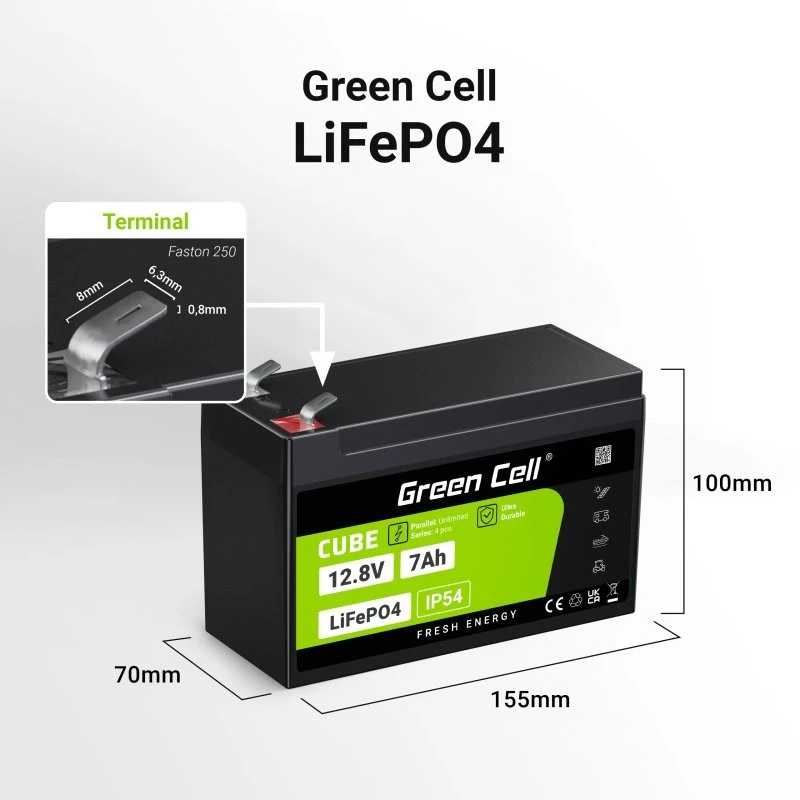

• Terminal Type: F2 (T2)
• Operating Temperature (Discharge): -20°C to 60°C
• Operating Temperature (Charge): 0°C to 45°C
• Self-Discharge Rate: <3% per month

Recommendations

For optimal performance, use a compatible LiFePO4 charger with a charge voltage between 14.4V and 14.6V. Ensure the device's charging profile matches the battery requirements. This battery is a direct replacement for most 12V 7Ah SLA batteries with F2 terminals.
