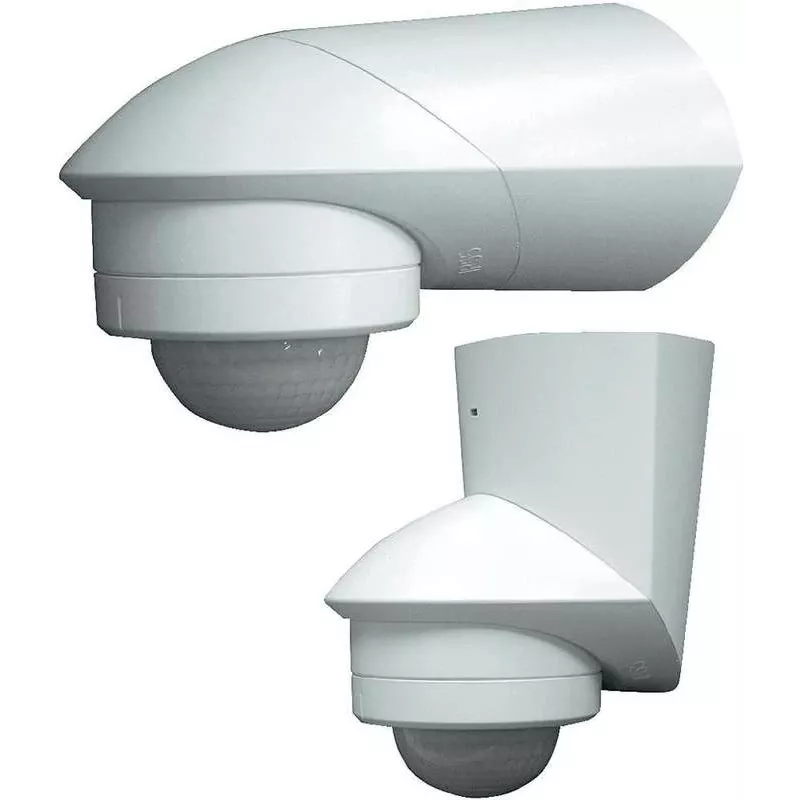

Grothe Detetor de movimento 120° branco 94530

Reliable motion detection for outdoor lighting and security, the Grothe 94530 senses movement across a 120° field and switches connected lights automatically. It eliminates the need to leave lights on or fumble for switches in the dark.

Who is it for

Homeowners and businesses seeking a durable, weather-resistant motion sensor for wall mounting. Ideal for driveways, entrances, gardens, and pathways where automatic lighting improves safety and convenience.

Main features

• 120° detection angle with 12 m range at 2.5 m mounting height
• Adjustable time delay from 10 seconds to 15 minutes
• Twilight threshold adjustable from 3 to 2000 lux
• High switching capacity: 1200 W incandescent, 300 W LED
• IP44 rated for outdoor use
• UV-stabilized polycarbonate housing

Specifications

• Detection angle: 120°
• Detection range: 12 m
• Mounting height: 1.8 - 2.5 m
• Switching capacity (incandescent): 1200 W
• Switching capacity (LED): 300 W
• Time setting: 10 sec - 15 min
• Twilight setting: 3 - 2000 lux
• IP rating: IP44
• Power supply: 230 V AC, 50 Hz
• Installation type: Wall mounting
• Colour: White
• Protection class: II
• Operating temperature: -20°C to +40°C
• Housing material: UV-stabilized polycarbonate
• Standby power consumption: < 0.5 W

Tips

Mount at 2.5 m for optimal coverage. Adjust the twilight setting to prevent activation during daylight. For LED loads, ensure total wattage does not exceed 300 W.
