Câmara de videoconferência MAXHUB UC S07 12 MP 4K Ultra HD 120° campo de visão

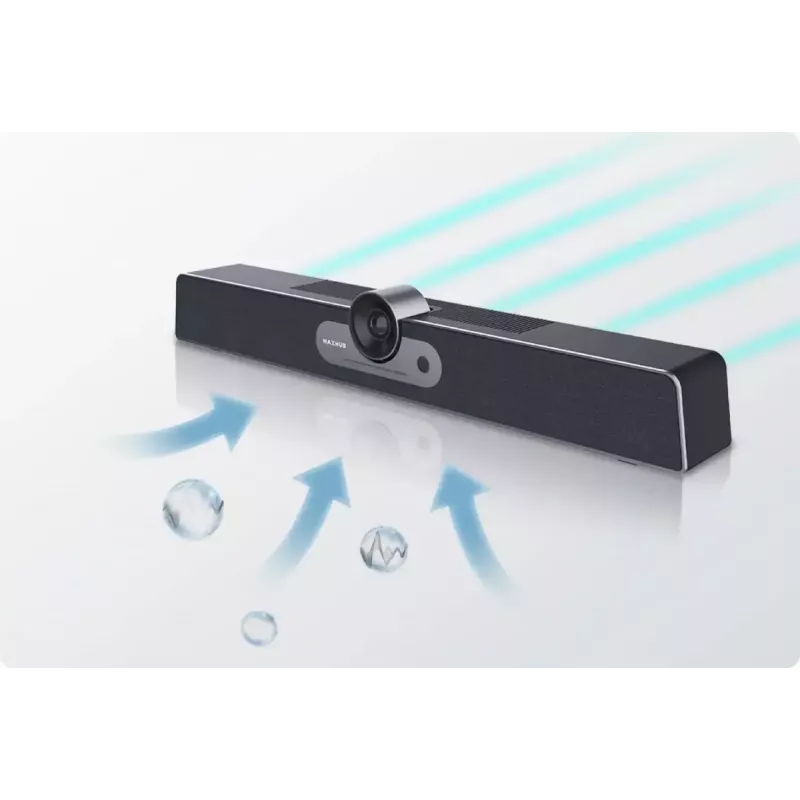

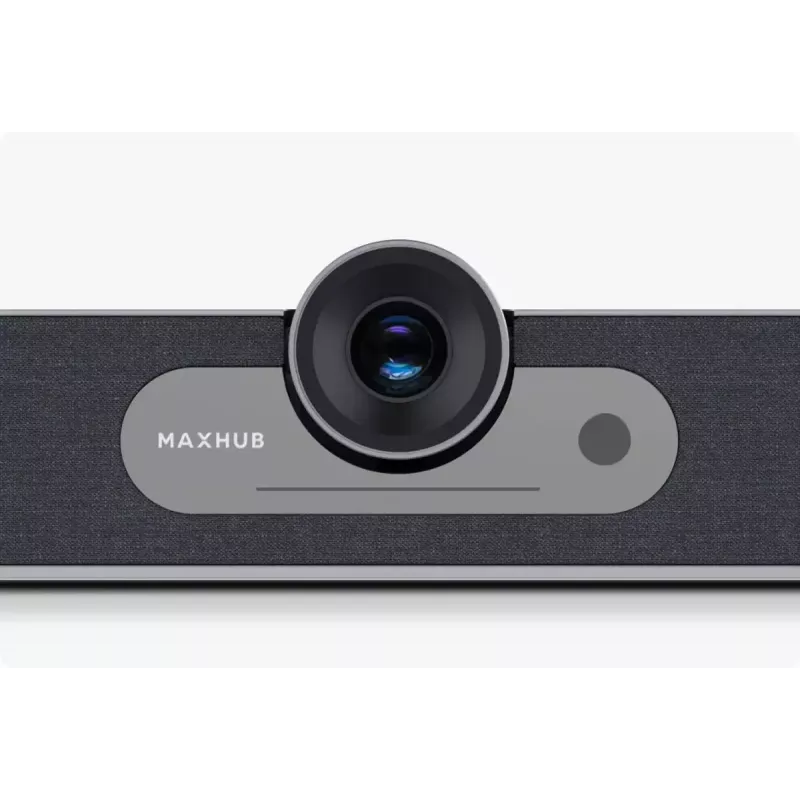

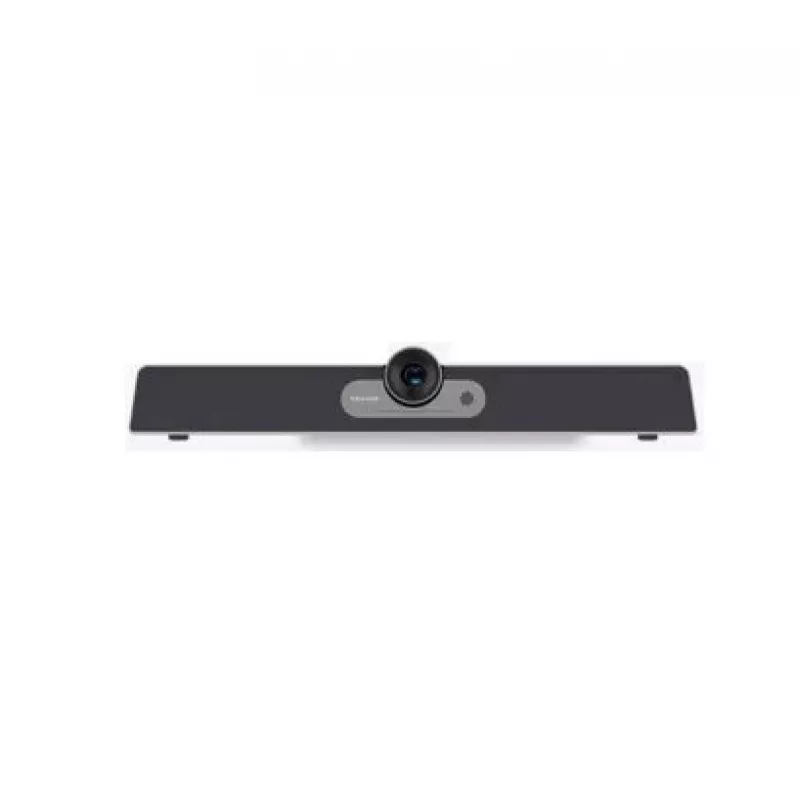

The MAXHUB UC S07 is an all-in-one Ultra-HD USB videobar designed for huddle rooms of 2–8 people. It integrates a 12 MP 4K camera with a 120° field of view, 5x digital zoom, a studio-quality Hi‑Fi speaker and a beam‑forming microphone array to provide clear video and audio in a compact, plug-and-play form factor. The unit supports simple connectivity using Power over Ethernet (PoE) and a Type‑C USB cable and is intended for BYOD meeting environments.

Advantages

The UC S07 offers 4K video capture with intelligent auto-framing and face detection, six beam‑forming microphones with an 8 m voice pickup range and speaker tracking, and a tweeter+woofer speaker system delivering 8 W + 3 W output for natural sound. A PIR sensor enables hands‑free activation within 3 m and energy‑saving standby after 30 minutes of inactivity. Noise suppression and AGC maintain stable, intelligible voice output while filtering background noises. Device management is flexible via local USB (MAXHUB ALIGN) or cloud (MAXHUB Pivot).

Suitable for

• Huddle rooms and small meeting rooms for 2–8 participants
• Bring Your Own Device (BYOD) setups requiring plug-and-play USB video
• Video calls, presentations and small team meetings needing wide FOV and close-up zoom

Key specifications

• Resolution: 12 MP, UHD 4K
• Field of view: 120°
• Zoom: 5x digital zoom
• Microphones: 6 intelligent beam‑forming mics, 8 m pickup range
• Speakers: Hi‑Fi tweeter + woofer, 8 W + 3 W output
• Connectivity: Type‑C USB and PoE power
• Auto features: Auto‑framing, face detection, speaker tracking
• Sensors: PIR motion sensor (auto on within 3 m, standby after 30 min inactivity)
• Warranty note: 3‑year hot swap warranty

How to use

Place the videobar centered below or above the display in the meeting room and connect it to a host device with the Type‑C USB cable. Provide power via PoE or the recommended power source. The device is plug‑and‑play for most conferencing applications; install MAXHUB ALIGN locally or register with MAXHUB Pivot for remote management. During meetings the PIR sensor will power the device on automatically when movement is detected within approximately 3 m and auto‑framing will track the active speaker.

Recommendations

Position the UC S07 at eye level and avoid placing it behind strong light sources to ensure best video quality. For optimal audio pickup, install the unit where participants sit within an 8 m radius and enable noise suppression features for rooms with background activity.
