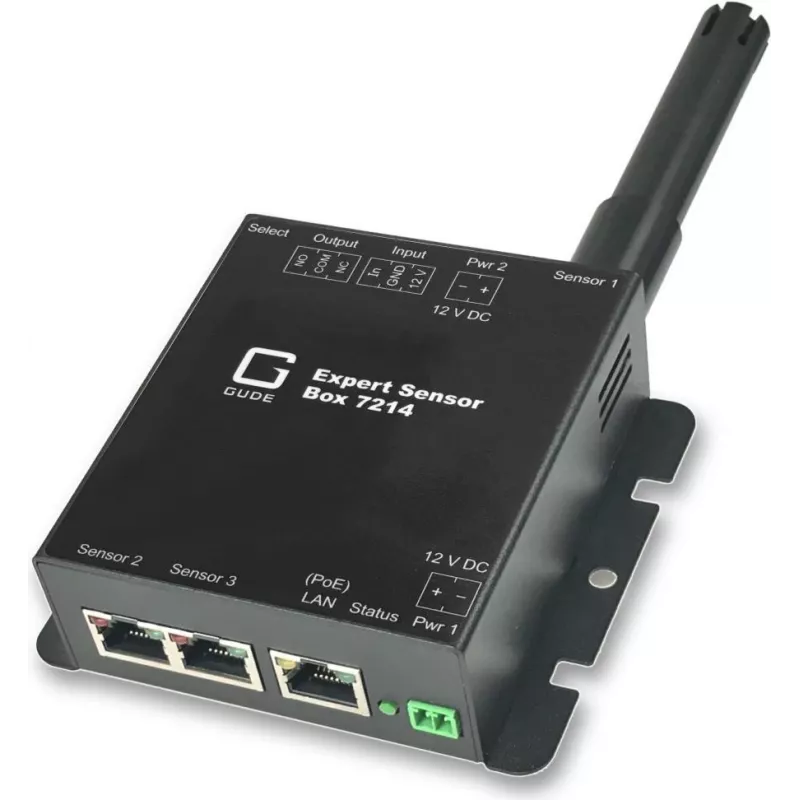

GÜDE 7214-11 Expert Sensor Box Temperatura 2x entrada de sensor 1x saída de relé 1x entrada IO PoE

Power over Ethernet meets precision environmental monitoring in the Güde Expert Sensor Box 7214-11. This compact unit draws its power directly from the network cable (IEEE 802.3af Class 1), eliminating the need for separate power supplies and simplifying installation in remote or difficult-to-reach locations. With two analog sensor ports, a potential-free relay output, and a digital input, it extends your Didactum monitoring system to cover temperature, humidity, water leakage, smoke, motion, and door contacts—all managed through an intuitive web interface.

Overview

The Expert Sensor Box 7214-11 is a network-attached environmental monitoring unit that connects via standard 10/100 Mbit Ethernet. It features two RJ11 sensor ports for analog sensors, one relay output for controlling external devices or alarms, and one digital input for dry contact integration, such as door switches or fire alarm panels. The device supports a wide range of communication protocols including HTTP(S), SNMP v1/v2c/v3, SMTP, Syslog, NTP, DHCP, and FTP, ensuring compatibility with existing IT infrastructure.

What stands out

• Power over Ethernet (PoE) for simple, single-cable installation
• Two analog sensor ports for versatile environmental monitoring
• Potential-free relay output for alarm signaling or device control
• Digital input for connecting door contacts, fire alarms, or other dry contacts
• Integrated web server for easy configuration and status monitoring
• Multiple alerting methods: email, SNMP traps, syslog

Technical details

• Device Type: Expansion Sensor Box
• Connectivity: Ethernet (IP-based)
• Power Supply: Power over Ethernet (PoE) IEEE 802.3af Class 1
• Alternative Power: 12V DC (optional, power adapter not included)
• Sensor Ports: 2x RJ11 for analog sensors
• Supported Sensor Types: Temperature, Humidity, Water Leakage, Smoke, Motion, Door Contact (via analog input)
• Relay Outputs: 1x potential-free (dry contact)
• Digital Inputs: 1x dry contact (e.g., for door contacts, fire alarms)
• Network Interface: 10/100 Mbit Ethernet
• Protocols Supported: HTTP(S), SNMP v1/v2c/v3, SMTP, Syslog, NTP, DHCP, FTP
• Management Interface: Integrated Web Server
• Alerting Methods: E-mail, SNMP Traps, Syslog, SMS (via external gateway)
• Compatibility: Didactum Monitoring Systems (e.g., 500/600/700 series)
• Operating Temperature: 0°C to +50°C (32°F to 122°F)
• Mounting: Wall mountable
• Housing Material: ABS Plastic
• LED Indicators: Power, Network, Sensor Status

Our verdict

The Güde Expert Sensor Box 7214-11 is a reliable and versatile PoE-powered environmental monitoring unit that seamlessly integrates with Didactum systems. Its dual sensor ports, relay output, and digital input provide comprehensive coverage for critical infrastructure, while the web-based management and multiple alerting options ensure you stay informed of any environmental changes. Ideal for server rooms, data centers, and remote facilities.
