H-Tronic TLF 1000 Termostato -25 a +70 °C 1114660

The H-Tronic TLF 1000 stands out with its wide -25 to +70 °C control range and selectable heating or cooling mode, making it suitable for both frost protection and overtemperature shutdown. The external NTC sensor on a 2 m cable allows flexible placement away from the control unit.

Highlights

• Adjustable switching hysteresis from 0.5 to 10 °C
• 3-digit LED display with 0.1 °C resolution
• SPDT relay output rated up to 10 A / 2300 W
• Sensor protection class IP67 for demanding environments

In daily use

The TLF 1000 is wall-mounted and connected via screw terminals. Two LEDs indicate the selected operating mode and relay status. With a power consumption of approximately 2 W, it remains efficient in continuous operation.

Full specifications

• Operating voltage: 230 V/AC
• Switching capacity (resistive load): max. 10 A / 2300 W
• Temperature control range: -25 to +70 °C

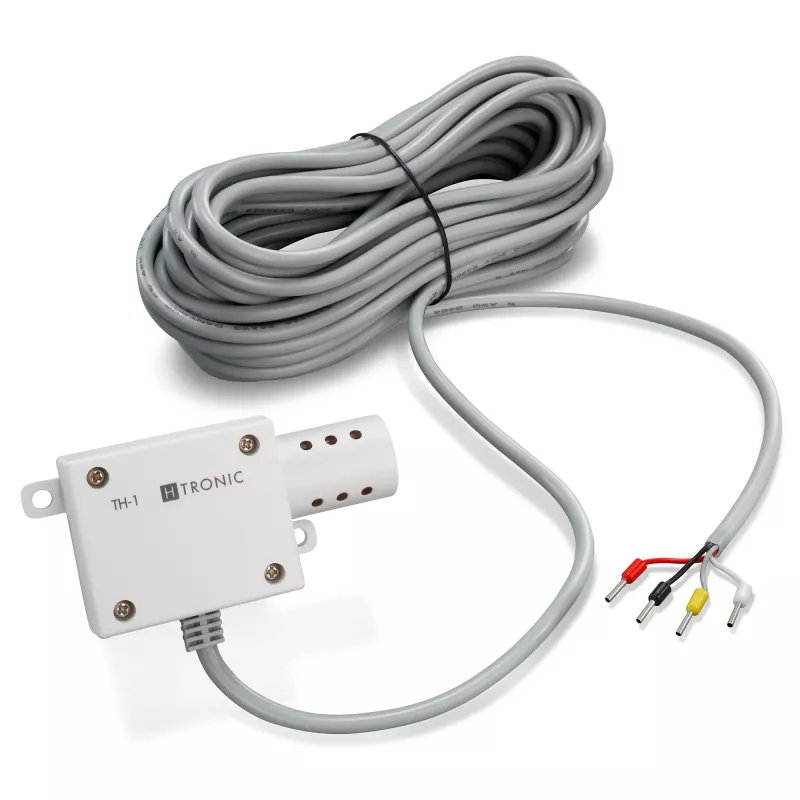

• Sensor type: external NTC sensor (KTY 81-210)
• Sensor cable length: 2 m
• Switching hysteresis: adjustable 0.5 to 10 °C
• Operating modes: heating or cooling (selectable)
• Display: 3-digit LED
• Temperature resolution: 0.1 °C
• Temperature accuracy: ±1 °C
• Power consumption: approx. 2 W
• Connection type: screw terminals
• Mounting type: wall mounting (surface-mounted)
• Housing protection class: IP20
• Sensor protection class: IP67
• Relay output: 1x changeover contact (SPDT)
• Status indicators: 2x LEDs (heating/cooling, relay active)

Final note

The TLF 1000 combines precise temperature control with robust switching capability for a wide range of industrial and domestic applications.
