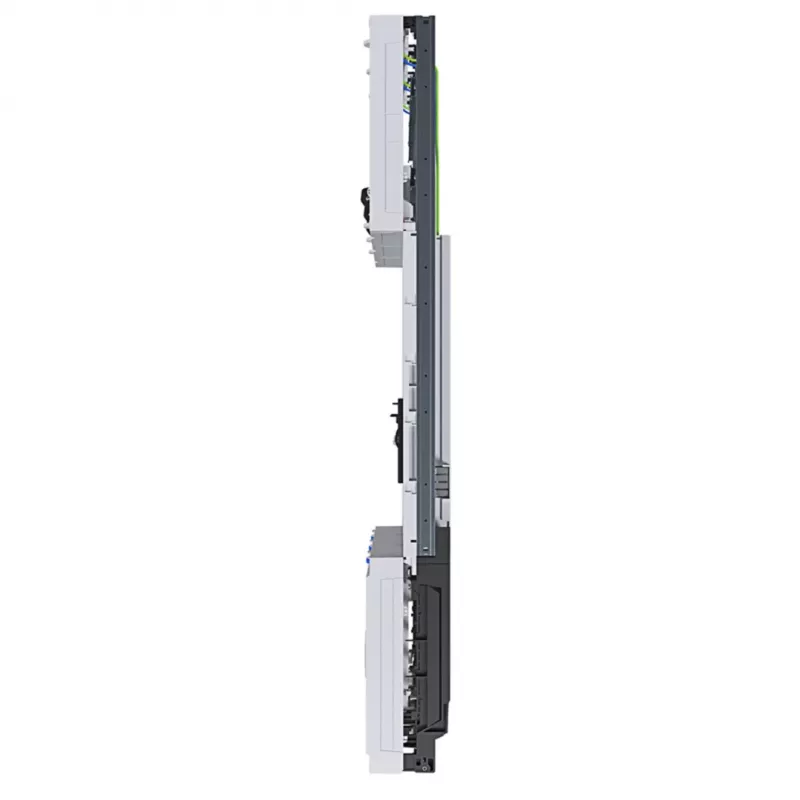

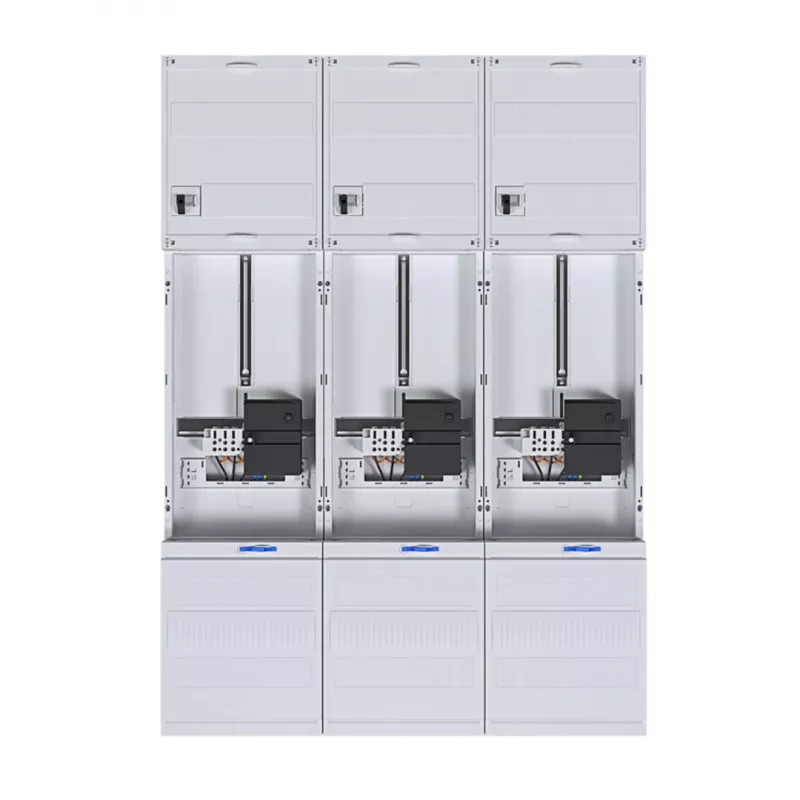

HAGER armário de contadores completo 3 pontos universal Hessen 1050mm 3 campos ZL34C4N

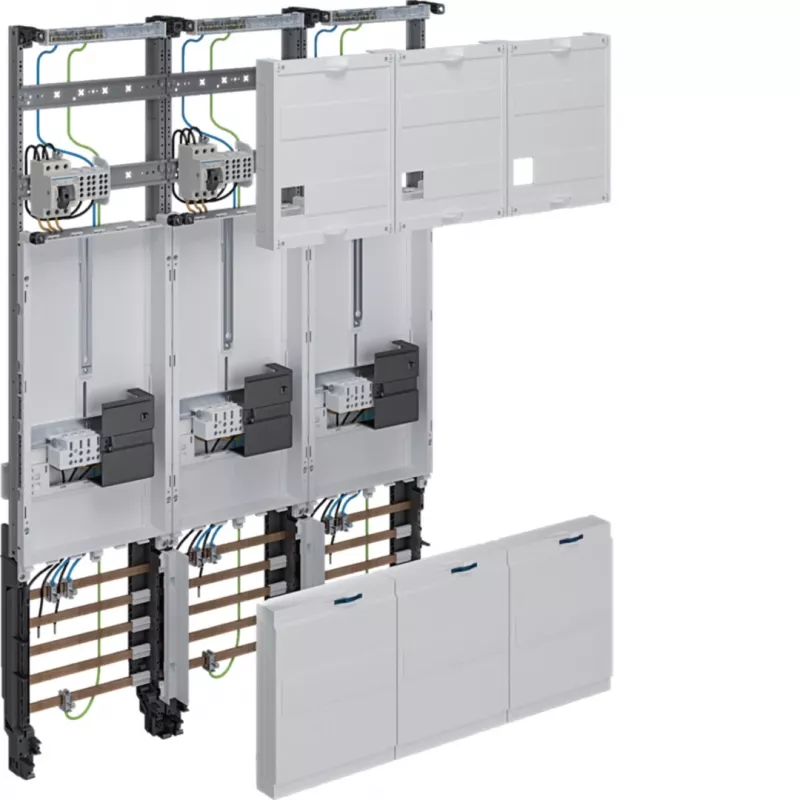

In residential and commercial electrical installations across Hessen, electricians and panel builders use the HAGER ZL34C4N complete meter panel to consolidate the utility connection, metering, and power distribution in one compact enclosure. This three-field unit stands 1050 mm tall, providing a universal 3-point meter mounting position alongside two distribution fields for circuit breakers and residual current devices.

Key specifications

• Three meter positions with universal 3-point mounting (BKE-I compatible)
• One meter field and two distribution fields
• Each distribution field offers 5 rows of 12 space units (TE), totaling 120 TE
• Main busbar rated up to 63 A
• 5-pole busbar system for TN-S and TT networks
• Sheet steel enclosure with IP2XC protection
• Overall dimensions: 1050 mm height, 750 mm width, 160 mm depth
• Includes PE/N busbar and main line branch terminal (HAK)

Why choose it

The panel is pre-configured for Hessen regional requirements, reducing planning and assembly time. Its universal meter mounting accepts standard 3-point meters without adapters, and the generous distribution space accommodates a wide range of protective devices. The robust steel construction ensures durability in utility rooms and basements.

Ideal use cases

• Residential multi-meter installations in apartment buildings
• Commercial sub-distribution with three-phase metering
• Retrofit projects where a compact, compliant meter panel is required

Good to know

The panel is designed for wall mounting and is supplied without meters or protective devices, allowing full customization of the distribution fields. The main line branch terminal supports connection of incoming service cables up to 63 A.
