Hager botão de comando com chave 1 polo para encastrar WDE385620

Rated at 10 A and 250 V AC, this Hager key-operated push-button switch provides a momentary 1-pole normally open contact for access control, door openers, alarm systems and general circuit control.

Overview

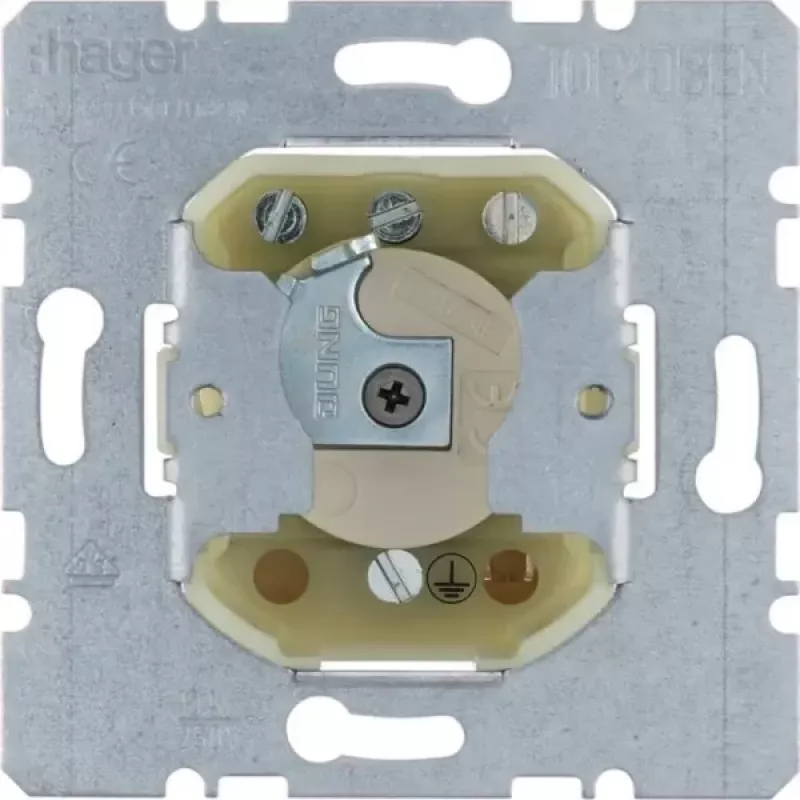

The WDE385620 is a flush-mounted key push-button switch with screw terminals, supplied with two keys. The mechanism is made of thermoplastic and is white/grey in colour. It is designed for use with a separate cover plate and frame (not included).

What stands out

• Momentary switching function: press the key to close the contact, release to open.
• Key removal possible in neutral position.
• Compact installation depth of approximately 32 mm.
• Operating temperature range from -5 to +40 °C.

Technical details

• Product type: Key push-button switch
• Mounting type: Flush-mounted (UP)
• Number of poles: 1
• Contact configuration: 1 NO
• Rated current: 10 A
• Rated voltage: 250 V AC
• Connection type: Screw terminals
• Material: Thermoplastic
• Colour: White / Grey
• Number of keys included: 2
• Protection class: IP20 (mechanism only)

Our verdict

A reliable key-operated momentary switch for controlled circuit activation, with a simple flush-mounted design and two keys included.
