Hager BR651705H9016 cotovelo plano 170x68 mm branco tráfego RAL 9016

90-degree flat angle for Hager BR cable trunking, 170 mm width × 68 mm height, traffic white RAL 9016.

Overview

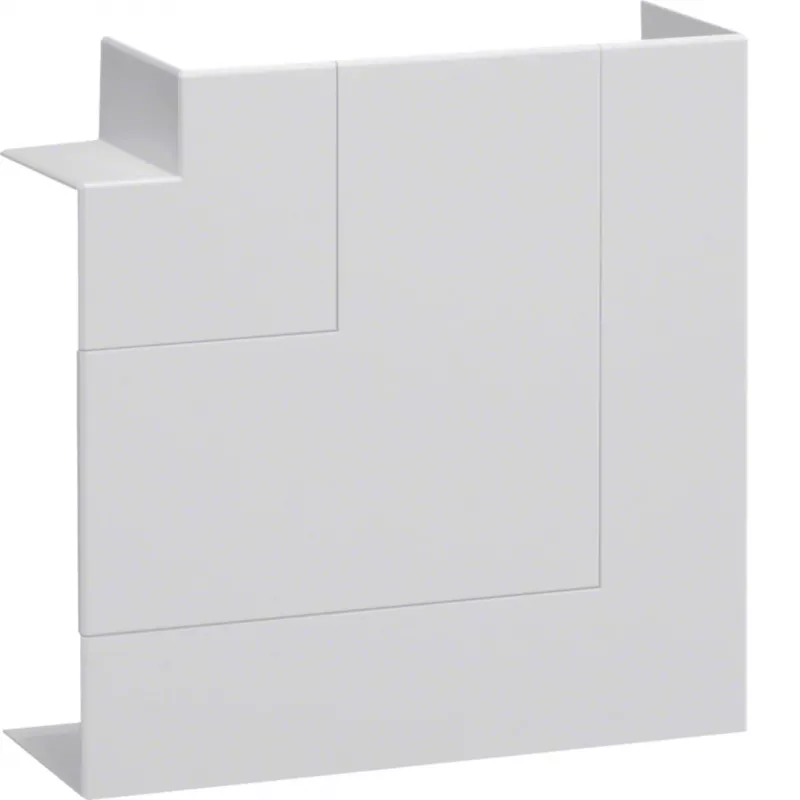

The Hager BR651705H9016 is a flat angle fitting for the Hager BR cable trunking system. It enables a 90-degree change of direction in cable routing on a flat surface. The component matches the nominal duct dimensions of 170 mm width and 68 mm height, ensuring a seamless fit with corresponding trunking sections.

What stands out

• Precise 90-degree angle for clean directional changes
• Compatible with Hager BR trunking system
• Traffic white RAL 9016 colour blends with standard installations
• Made of PVC for durability and easy handling

Technical details

• Product type: Flat angle
• Nominal duct width: 170 mm
• Nominal duct height: 68 mm
• Angle: 90°
• Material: PVC
• Colour: Traffic white RAL 9016
• Halogen-free: No
• Surface protection: Untreated
• Protective film: No
• Number of pieces: 1
• Application: Direction change for cable routing
• Series: BR
• UV resistant: No (indoor use)
• Impact resistance: Standard
• Operating temperature range: -5°C to +60°C

Our verdict

A straightforward flat angle accessory that ensures reliable cable routing changes in Hager BR trunking installations.
