Hager canto interior LFF6006049016 branco tráfego para calha de cabos 60x60mm

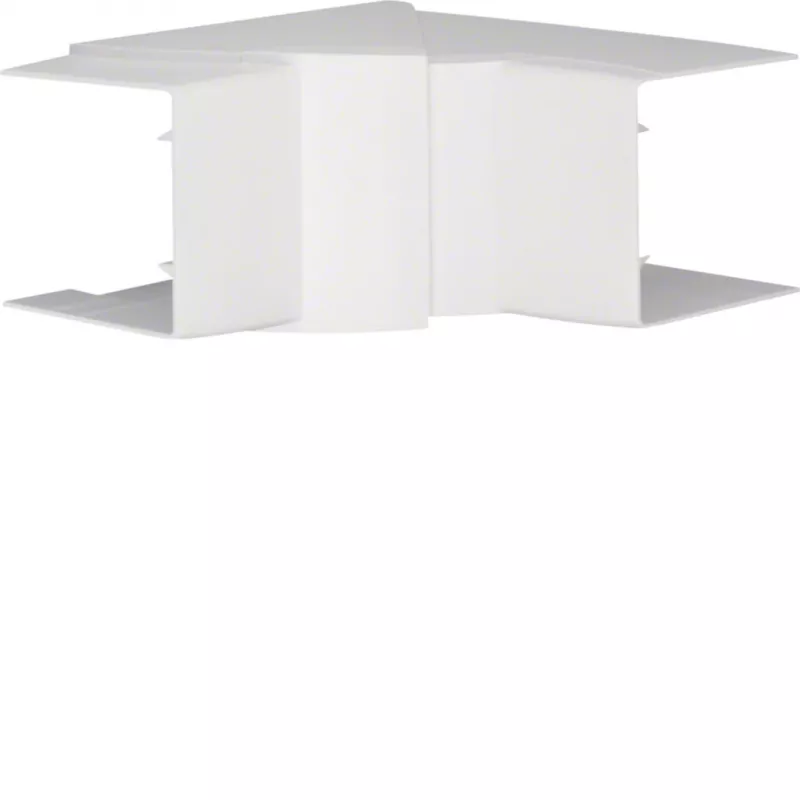

Halogen-free PVC inner corner in traffic white (RAL 9016) for the Hager LFF cable trunking system, engineered for 60 x 60 mm duct profiles. The clip-on design snaps securely onto the trunking, creating a clean 90° bend while maintaining the duct's protective enclosure.

Overview

This inner corner is a system accessory for Hager LFF cable trunking. It routes cables around internal corners without kinking or exposing conductors. Made from self-extinguishing, UV-resistant PVC with a matt finish, it matches the trunking's traffic white colour and withstands temperatures from -5°C to +60°C.

What stands out

• Halogen-free material for safer installations
• UV-resistant and self-extinguishing PVC
• Clip-on mounting – no tools required
• Impact resistance IK07 for durable use
• Traffic white (RAL 9016) matches standard trunking

Technical details

• Compatible trunking dimensions: 60 x 60 mm
• Material: PVC (polyvinyl chloride)
• Mounting type: clip-on / snap-on
• Halogen-free: yes
• UV-resistant: yes
• Impact resistance: IK07
• Operating temperature range: -5°C to +60°C
• Fire behaviour: self-extinguishing
• Surface finish: matt
• Number of compartments: 1
• Type of accessory: system accessory for cable trunking

Our verdict

A precise, halogen-free inner corner that keeps Hager LFF trunking installations neat and code-compliant. The clip-on design saves time on every internal bend.
