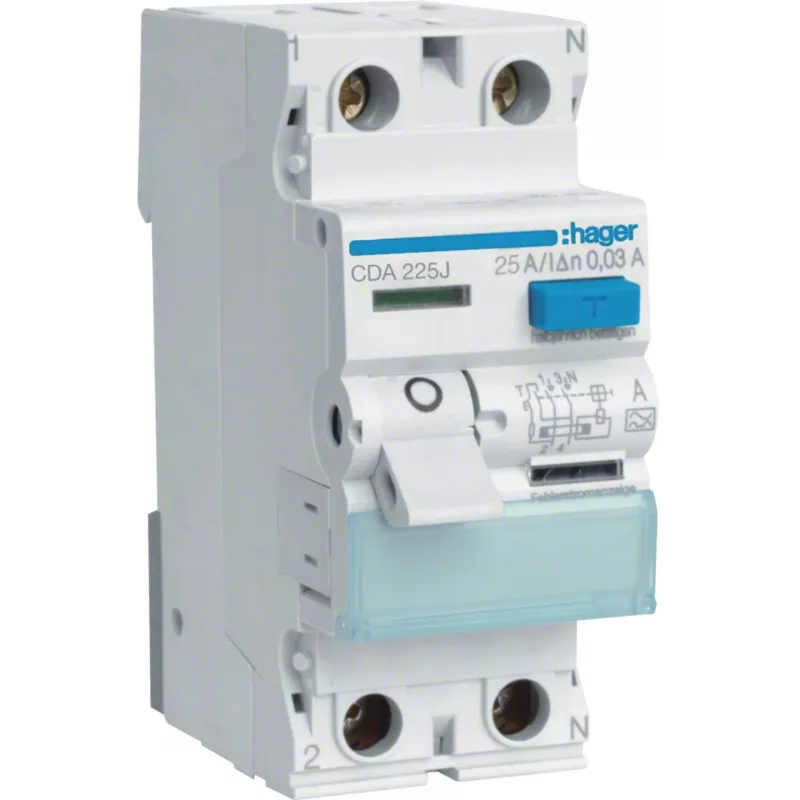

HAGER CDA225J Interruptor diferencial 1P+N 25A 30mA Tipo A 6kA

The HAGER CDA225J is a high-quality Residual Current Circuit Breaker (RCCB) designed for reliable protection against earth faults. With a rated current of 25A and a residual operating current of 30mA, it ensures safety in residential and commercial electrical installations. This Type A RCCB is sensitive to sinusoidal AC residual currents and pulsating DC residual currents, making it suitable for a wide range of applications.

Advantages

Compact 2-module design (35mm) for easy DIN rail mounting. High breaking capacity of 6kA ensures robust performance. Complies with EN 61008-1 standards for quality and safety. Suitable for operating temperatures from -25°C to +40°C.

Suitable for

• Residential electrical panels
• Commercial building distribution boards
• Protection of circuits with sensitive electronic equipment

Key specifications

• Rated Current (In): 25 A
• Rated Residual Operating Current (IΔn): 30 mA
• Rated Short-Circuit Breaking Capacity (Icn): 6 kA
• Residual Current Type: Type A
• Number of Poles: 2P (1P+N)
• Rated Voltage (Ue): 230/400 V AC
• Frequency: 50/60 Hz
• Mounting: DIN Rail
• Terminal Capacity (Rigid): 25 mm²
• Terminal Capacity (Flexible): 16 mm²
• Degree of Protection: IP20
• Electrical Endurance: 2000 cycles
• Mechanical Endurance: 20000 cycles
• Module Width: 2 modules (35 mm)

Recommendations

For optimal safety, always use RCCBs in combination with MCBs. Ensure proper installation by a qualified electrician.
