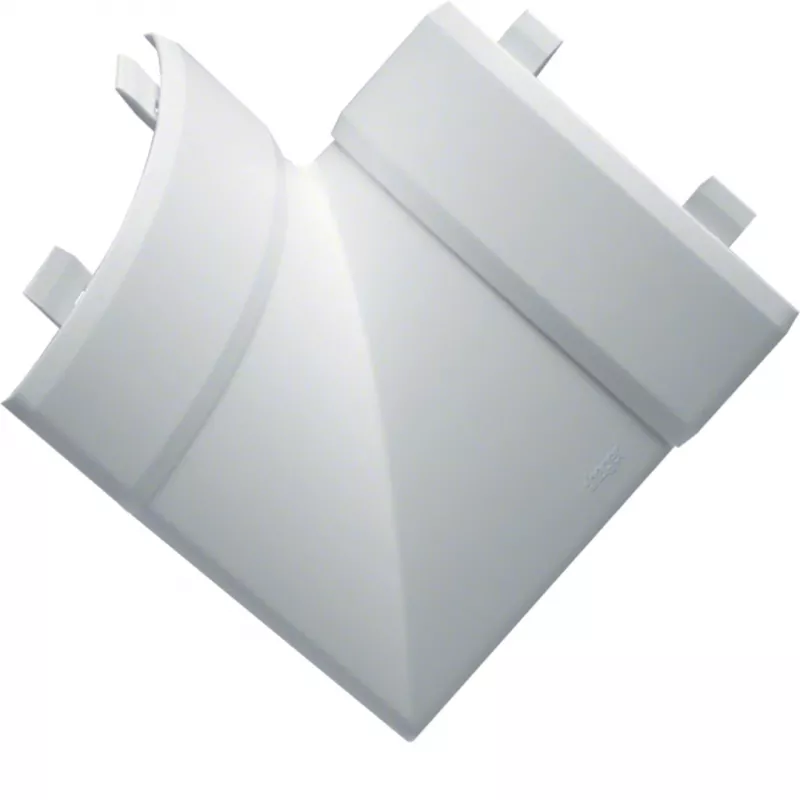

Hager EK4004059016 Curva plana para calha de cabos PVC 40x40mm, branco tráfego

When cable trunking must turn a corner, a clean 90-degree bend keeps the installation tidy and protects the cables inside. This flat angle is made for 40x40mm PVC trunking and matches the profile exactly, so the turn looks like part of the original run.

Who is it for

Electricians and installers who work with 40x40mm PVC trunking and need a concealed, snap-on corner piece. It suits indoor electrical installations where a neat, professional finish is required.

Main features

• Flat angle for 90-degree turns in 40x40mm trunking
• Made from PVC, colour traffic white (RAL 9016)
• Concealing (kaschierend) design hides the joint
• Snap-on mounting for quick installation

Specifications

• Type: Flat angle
• Compatible trunking: 40x40mm
• Material: PVC
• Colour: Traffic white (RAL 9016)
• Mounting: Snap-on
• Angle: 90 degrees
• Halogen-free: No
• Operating temperature: -5°C to +60°C
• UV resistant: No
• Surface finish: Smooth
• Application: Indoor

Tips

Ensure the trunking ends are cut square before snapping on the flat angle. For outdoor use, choose a UV-resistant alternative.
