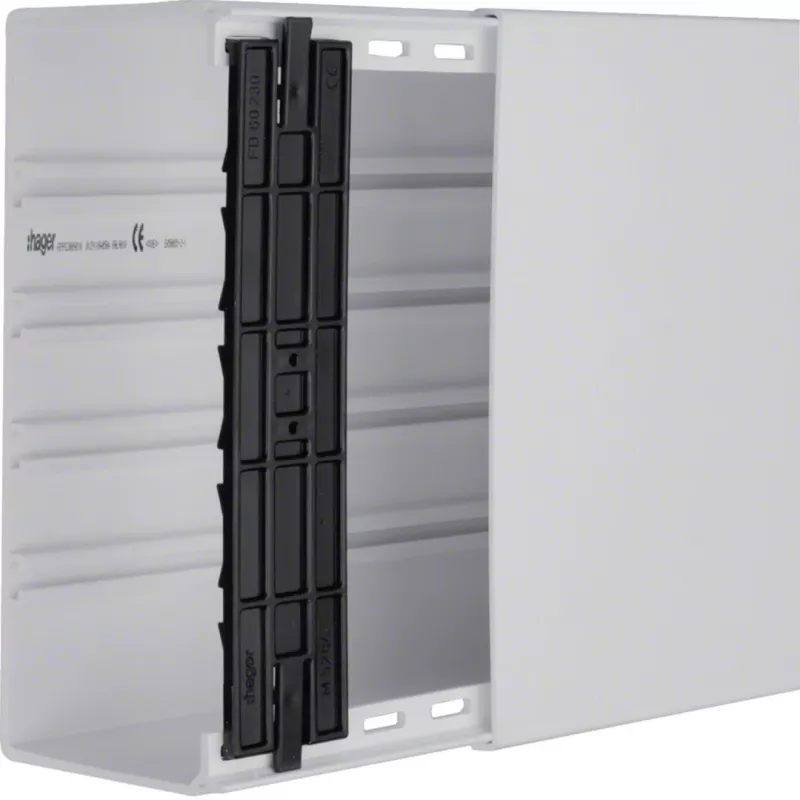

Hager FB9923007035 Calha de cablagem PVC 100x230mm cinzento claro 2m

Routing and protecting cables in industrial or commercial installations often becomes messy and unsafe when cables are left exposed. This PVC wiring duct from Hager provides a clean, organized solution for cable management, keeping cables neatly contained and protected.

Who is it for

Electricians, panel builders, and maintenance technicians who need a reliable, easy-to-install cable trunking system for control panels, switchgear, or building installations.

Main features

• Durable PVC construction in light grey (RAL 7035) for long-lasting performance.
• Slotted design with pre-punched base holes for quick and secure screw or adhesive mounting.
• Includes a lid for a clean, finished appearance and easy cable access.
• Self-extinguishing material (UL94 V-0) for enhanced fire safety.
• Dimensions: 100 mm height, 230 mm width, 2000 mm length.

Specifications

• Material: PVC (Polyvinyl Chloride)
• Colour: Light Grey (RAL 7035)
• Height: 100 mm
• Width: 230 mm
• Length: 2000 mm
• Slot width: 5 mm
• Slot spacing: 10 mm
• Lid included: Yes
• Halogen-free: No
• Self-extinguishing: Yes (UL94 V-0)
• Operating temperature range: -5 °C to +60 °C
• Mounting type: Screw mounting / Adhesive mounting

Tips

When cutting the duct to length, use a fine-tooth saw to avoid burrs. For adhesive mounting, ensure the surface is clean and dry for optimal adhesion.
