Hager FWK-Plus canto interior 60x150 mm peça moldada de canal de cabos de proteção contra incêndio galvanizado a quente FWKP601504VERZ

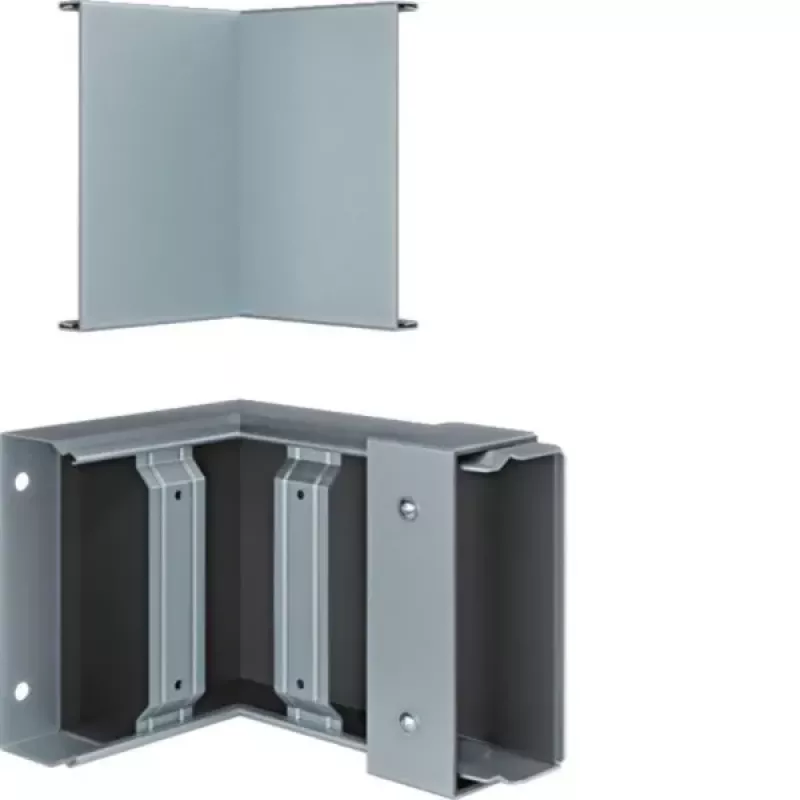

For fire protection cable duct systems, the Hager FWK-Plus Inner Corner FWKP601504VERZ provides a 90-degree direction change for ducts with 60 mm height and 150 mm width. Its galvanized steel construction maintains system fire resistance up to E90.

Overview

This inner corner fitting is part of the Hager FWK-Plus series, designed for electrical and data installations in fire-sensitive areas. It supports both horizontal and vertical duct runs, ensuring a secure and compliant cable routing path.

What stands out

• Compatible with FWK-Plus fire protection duct system
• Galvanized steel for corrosion resistance and durability
• Maintains fire resistance class E30, E60, E90 as part of system
• 90-degree angle for efficient direction change

Technical details

• Product type: Inner corner fitting
• System series: Hager FWK-Plus
• Application: Fire protection cable duct system
• Compatible duct height: 60 mm
• Compatible duct width: 150 mm
• Material: Steel
• Surface finish: Galvanized
• Angle: 90 degrees
• Installation type: For horizontal and vertical duct runs
• Colour: Metallic
• Standard compliance: DIN 4102-11 (for system fire resistance)
• Protection against: Fire spread, mechanical damage

Our verdict

A reliable inner corner fitting for FWK-Plus fire protection ducts, offering robust galvanized steel construction and system-compliant fire resistance.
