Hager FWK-Plus Conector de calha 100x150 mm galvanizado a quente proteção contra incêndio FWKP1001509VERZ

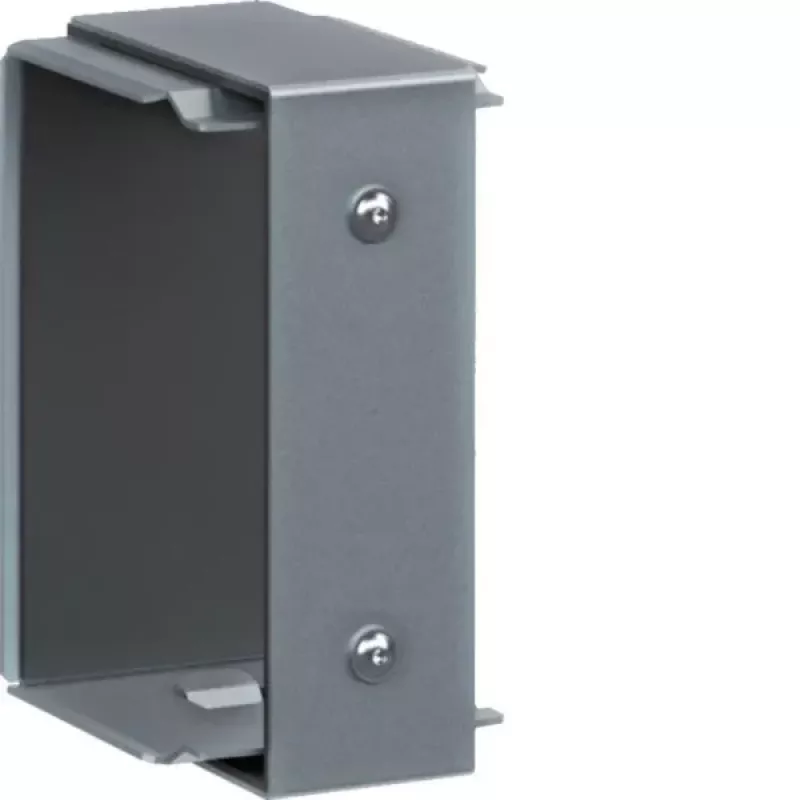

The FWK-Plus coupling from Hager provides a secure straight connection for fire-rated cable tray systems. Its 100 mm width and 150 mm height match the FWK-Plus tray profile, while the galvanized steel construction ensures corrosion resistance in indoor installations. This coupling is engineered to maintain fire resistance up to E90 according to DIN 4102-12, making it suitable for fire protection cable routing.

Highlights

• Straight coupling for FWK-Plus cable trays
• Galvanized steel for corrosion protection
• Fire resistance up to E90 per DIN 4102-12
• Screw connection for secure mounting

In daily use

Installers can quickly join cable tray sections with this coupling, ensuring a stable and fire-rated pathway for cables. The galvanized finish blends with standard metallic tray systems and withstands typical indoor environments.

Full specifications

• Product Type: Cable Tray Coupling
• Series: FWK-Plus
• Compatible Cable Tray Width: 100 mm
• Compatible Cable Tray Height: 150 mm
• Material: Steel
• Surface Finish: Galvanized
• Fire Protection: Yes
• Fire Resistance Class: Up to E90 (according to DIN 4102-12)
• Connection Type: Straight Coupling
• Mounting Method: Screw Connection
• Application: Fire-rated Cable Routing Systems
• Corrosion Protection: Yes
• System Compatibility: Hager FWK-Plus Cable Tray System
• Colour: Metallic
• Environmental Use: Indoor
• Standard Compliance: DIN 4102-12

Final note

This coupling is a dedicated component for the Hager FWK-Plus system, ensuring compliance and performance in fire protection scenarios.
