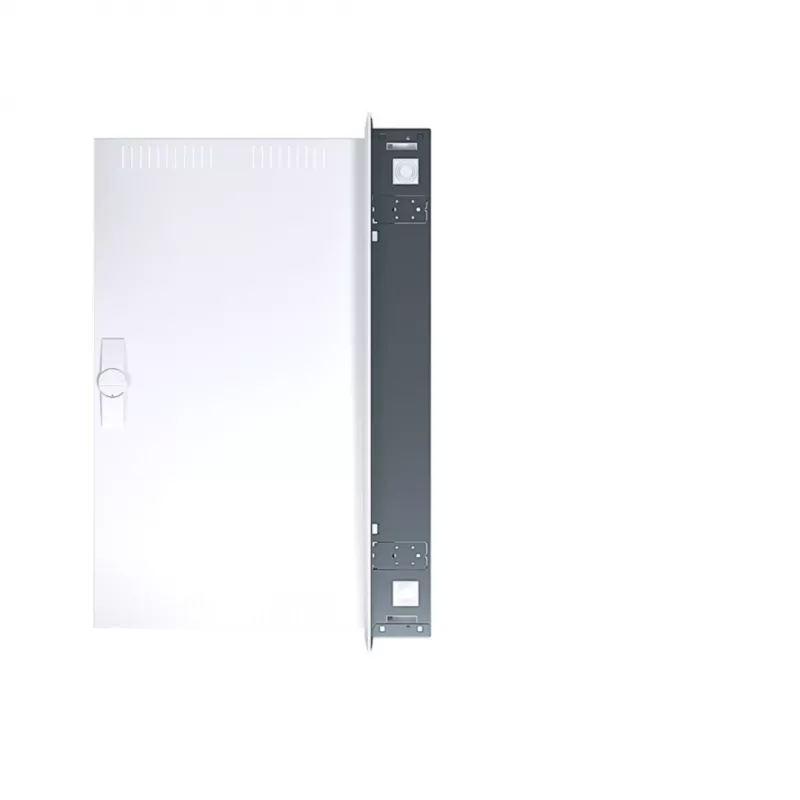

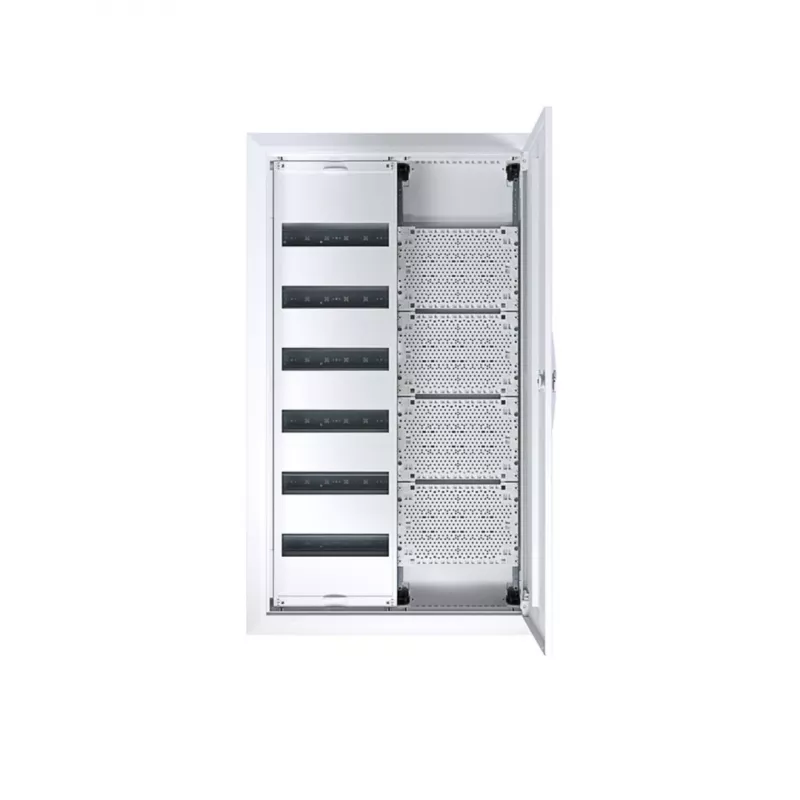

HAGER FWU62K1 Quadro de distribuição encastrado UP72PLE+Multimédia, IP30, classe de proteção II, dimensões de nicho 980x580x110 mm

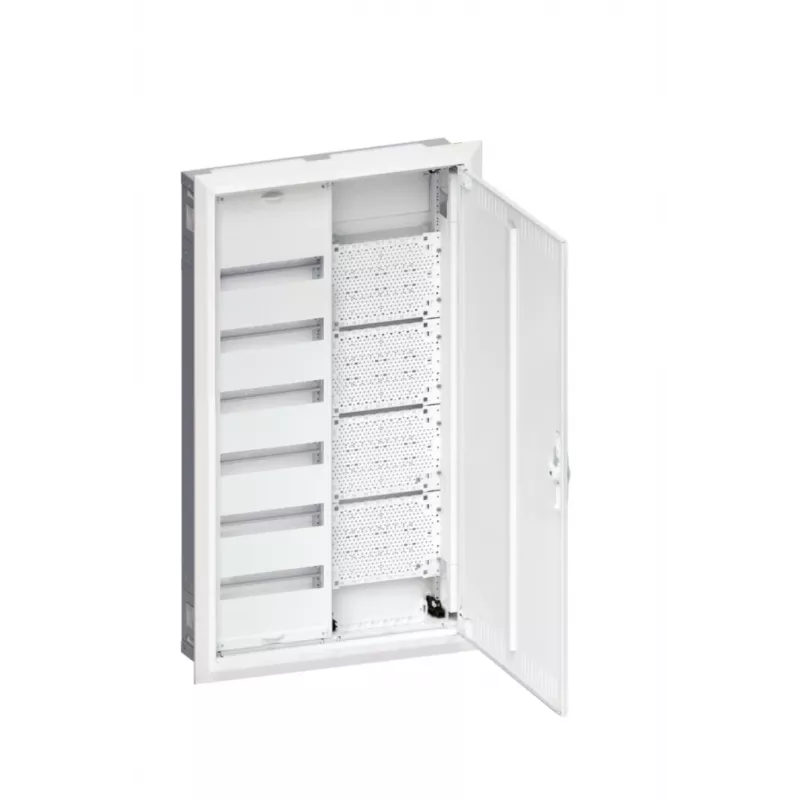

The HAGER FWU62K1 is a high-quality flush-mounted distribution board designed for electrical and multimedia distribution in residential and commercial buildings. With a 72-module capacity (6 rows of 12 modules) and integrated multimedia field, it offers flexible and organized installation. The cabinet is made of steel sheet with a white RAL 9010 finish, featuring a lockable steel door for security. It complies with DIN VDE 0603-1 and DIN 43870-1 standards, ensuring reliability and safety.

Advantages

Space-saving flush-mounted design with IP30 protection and double insulation (Class II). The integrated multimedia field allows for structured cabling alongside electrical distribution. Pre-punched knockouts at top and bottom simplify cable entry. N and PE terminal blocks are included for quick wiring.

Suitable for

• Electrical distribution in residential and commercial buildings
• Multimedia and data network distribution
• Installations requiring flush-mounted enclosures with high module capacity

Key specifications

• Mounting Type: Flush-mounted (UP)
• Number of Rows: 6
• Module Capacity: 72 (6 x 12 modules)
• Ingress Protection: IP30
• Protection Class: II (double insulated)
• Material: Steel sheet (cabinet), Plastic (internal components)
• Door Type: Steel door, hinged, lockable
• Colour: White (RAL 9010)
• Application: Electrical and Multimedia Distribution
• Niche Dimensions (H x W x D): 980 x 580 x 110 mm
• Overall Dimensions (H x W x D): 1000 x 600 x 110 mm
• Rated Voltage: 400 V AC
• Rated Current: Up to 63 A
• Terminal Blocks: N and PE included
• Cable Entry: Top and bottom, pre-punched knockouts
• Standard Compliance: DIN VDE 0603-1, DIN 43870-1
• Multimedia Field: Integrated
• Depth of Installation: 110 mm

Recommendations

For optimal installation, ensure the niche dimensions are accurately prepared. Use appropriate cable glands for the knockouts. This board is ideal for new constructions or renovations requiring a combined electrical and multimedia distribution point.
