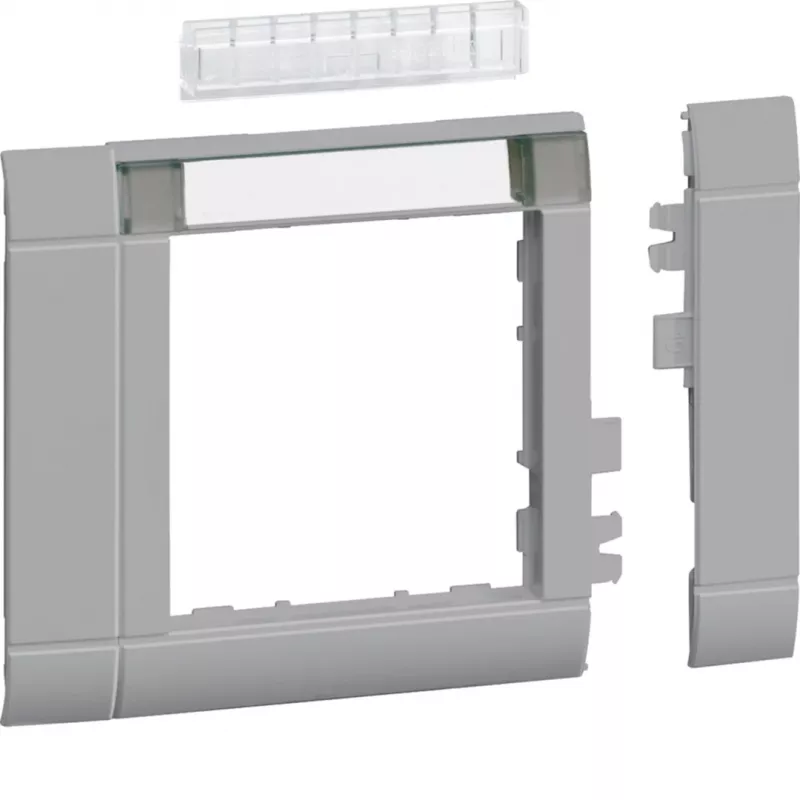

HAGER GR0802ALAN Tampa de moldura modular, ZS 55, 80x80 mm, cinzento-claro, isenta de halogéneos

Modular frame cover for HAGER ZS 55 metering point system, providing a clean 80x80 mm aperture for modular devices in distribution boards and meter cabinets. Its halogen-free thermoplastic construction supports fire safety in building installations.

Advantages

Snap-in mounting allows quick installation without tools. The light grey (RAL 7035) finish blends with standard enclosures, while UV resistance ensures colour stability in exposed areas. Halogen-free material reduces toxic smoke in case of fire.

Suitable for

• Distribution boards and meter cabinets
• ZS 55 modular system installations
• Indoor electrical enclosures (IP20)

Key specifications

• Opening dimensions: 80 x 80 mm
• Material: thermoplastic, halogen-free
• Colour: light grey (RAL 7035)
• Mounting: snap-in / clip-on
• Glow wire test: 650 °C
• Flammability rating: UL94 V-2
• Operating temperature: -25 to +70 °C

Recommendations

Verify compatibility with your ZS 55 enclosure before ordering. Combine with HAGER modular devices for a seamless front finish.
