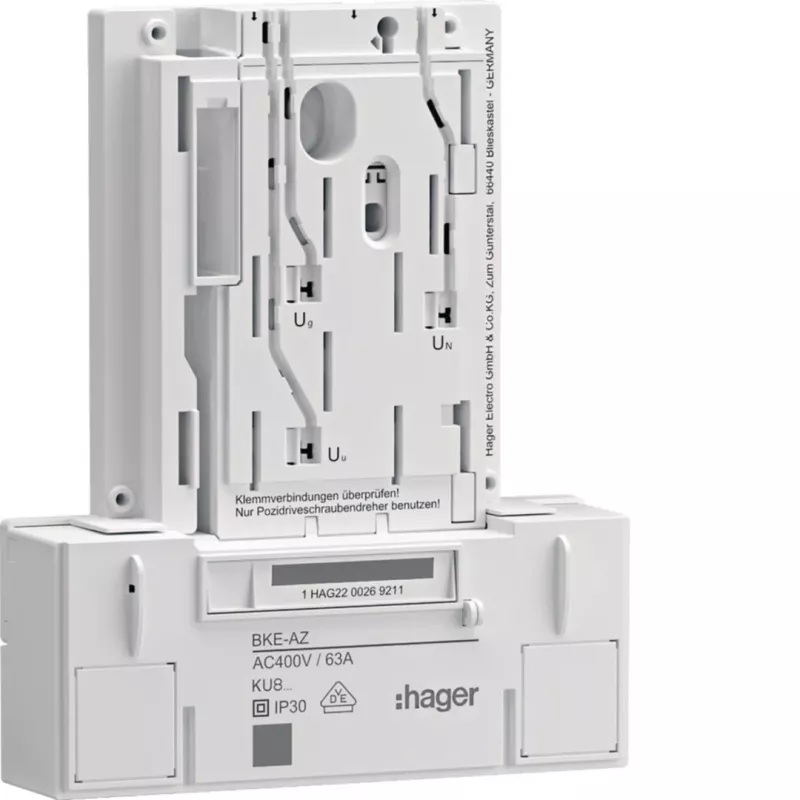

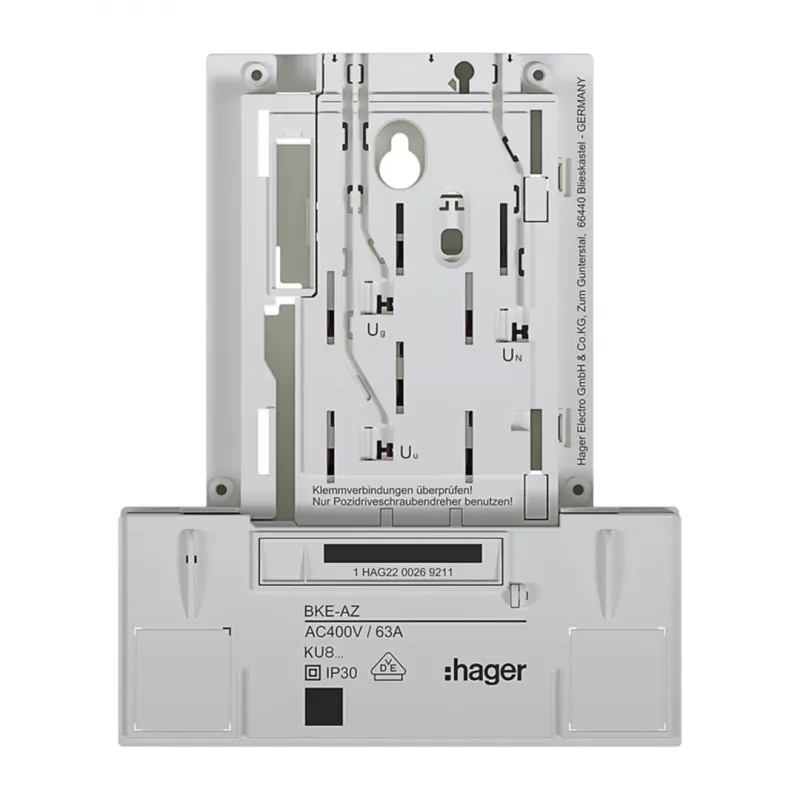

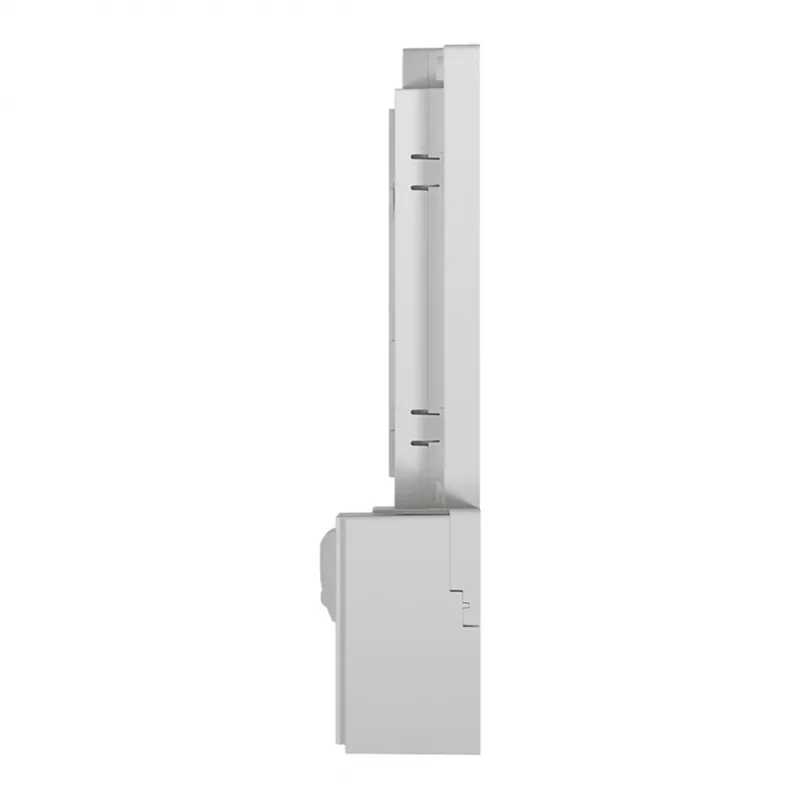

HAGER KU83LHE BKE-A versão base 3 fases adaptador de quadro de contadores

The HAGER KU83LHE BKE-A is a 3-phase basic version adapter for meter cabinets, designed for use in residential and commercial electrical installations. It provides a reliable busbar connection system for electronic household meters (eHZ) and includes N and PE terminal blocks for easy wiring.

Advantages

This adapter simplifies the integration of eHZ meters into existing distribution boards, offering a compact and organized solution. The 5-pole busbar system ensures efficient power distribution, while the 36 TE (3 x 12 TE) configuration provides ample space for circuit breakers and other components.

Suitable for

• Residential electrical installations requiring 3-phase metering
• Commercial buildings with eHZ meter compatibility
• Distribution boards and meter cabinets (e.g., universZ series)

Key specifications

• Number of Phases: 3-phase
• Rated Current: 63 A
• Meter Type Compatibility: eHZ (electronic household meter)
• Number of Meter Positions: 1
• Main Circuit Breaker Space: 1 (for SLS switch)
• Distribution Units (TE): 36 TE (3 x 12 TE)
• Connection Type: Busbar connection
• Busbar System: 5-pole
• Terminal Blocks Included: N and PE terminals
• Mounting Type: For meter cabinets / distribution boards
• Installation Height: 1050 mm
• Installation Width: 250 mm
• Material: Sheet steel / Plastic components
• Design: Basic version (Basisausführung)

Recommendations

Ensure compatibility with your specific meter cabinet model. Professional installation by a qualified electrician is recommended.
