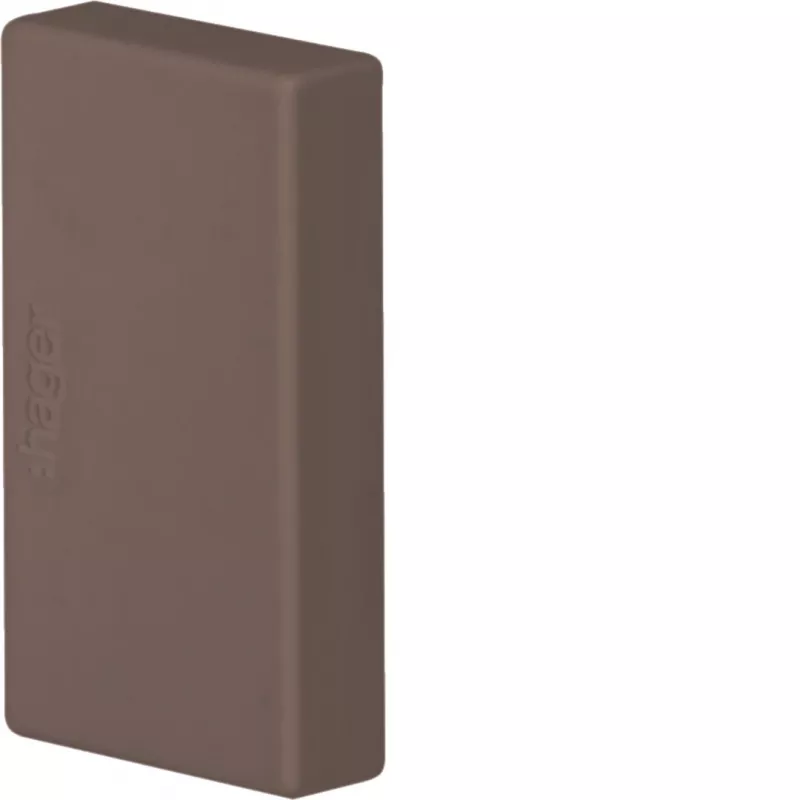

Hager LFF2003568014 Tampa de extremidade para calha de cabos LF/LFF 20x33mm, castanho

Self-extinguishing PVC-U end cap that cleanly closes the open end of Hager LF/LFF cable trunking, sized 20x33 mm, in brown (RAL 8014).

Overview

The Hager LFF2003568014 is a clip-on end cap designed to finish and seal the open ends of Hager LF/LFF cable trunking with dimensions 20 mm height and 33 mm width. It provides a neat, professional appearance while protecting cable ends from dust and accidental contact. The brown colour (RAL 8014) blends with the trunking for a seamless look.

What stands out

• Halogen-free PVC-U material for enhanced safety in fire conditions.
• Self-extinguishing flame retardancy reduces fire propagation risk.
• Tool-free push-fit installation for quick assembly.
• Good chemical resistance against common acids, alkalis, and oils.
• RoHS compliant, meeting environmental standards.

Technical details

• Product type: End Cap
• Compatibility: Hager LF/LFF cable trunking system
• Trunking dimensions (H x W): 20 x 33 mm
• Colour: Brown (RAL 8014)
• Material: PVC-U (halogen-free)
• Mounting type: Clip-on / Push-fit
• Installation environment: Indoor
• Temperature resistance: -5°C to +60°C
• Flame retardancy: Self-extinguishing
• Chemical resistance: Good against common acids, alkalis, and oils
• Compliance: RoHS

Our verdict

A reliable finishing accessory for Hager trunking installations, offering safety and a clean finish in a matching brown colour.
