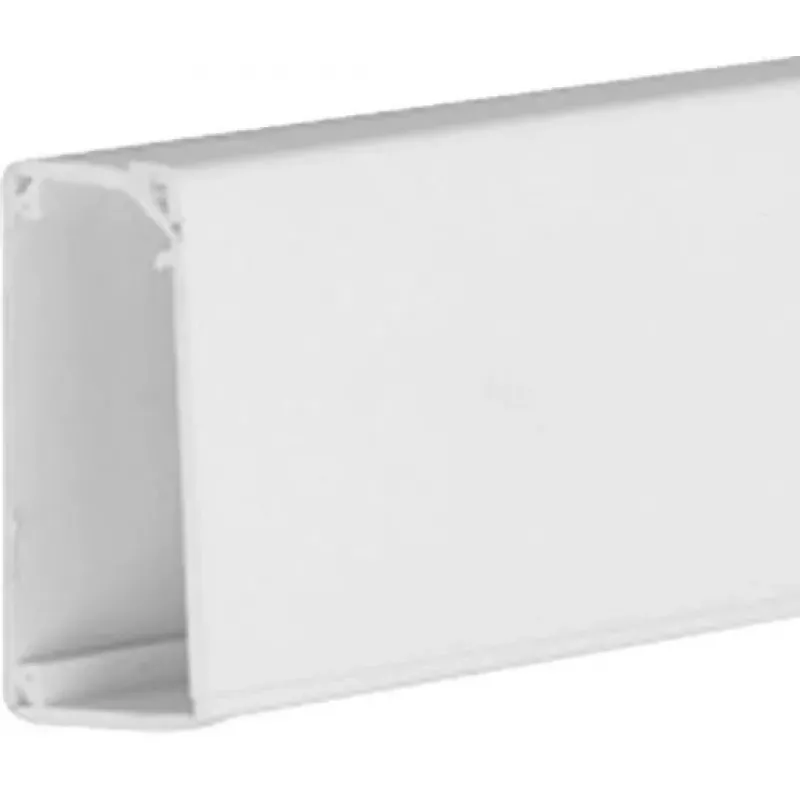

Hager LFR2003509016A canalete 20x35 mm branco tráfego (RAL 9016) 2 m rolo

The Hager LFR2003509016A cable trunking is a high-quality PVC cable routing system designed for professional indoor installations. With dimensions of 20x35 mm and a length of 2 meters per roll, this trunking provides a neat and organized solution for managing cables in residential, commercial, and industrial environments. Its traffic white (RAL 9016) finish blends seamlessly with light-colored walls and surfaces.

Advantages

This cable trunking offers easy installation with a clip-on cover, allowing quick access for cable changes or additions. The self-extinguishing PVC material ensures safety in case of fire, while the IP30 protection class guards against solid objects. The roll format simplifies handling and cutting to required lengths.

Suitable for

• Indoor cable routing in offices, homes, and workshops
• Surface mounting on walls or ceilings
• Concealing low-voltage cables, data cables, and electrical wires

Key specifications

• Product Type: Cable Trunking System
• Material: Polyvinyl Chloride (PVC)
• Colour: Traffic White (RAL 9016)
• External Width: 35 mm
• External Height: 20 mm
• Length per Unit: 2000 mm (2 meters)
• Number of Compartments: 1
• Cover Type: Clip-on / Snap-on
• Halogen-free: No
• Self-extinguishing: Yes
• Temperature Range (Operation): -5°C to +60°C
• Protection Class (IP): IP30
• Mounting Method: Screw fixing
• Standard: EN 50085-2-1
• Application Area: Indoor cable routing
• UV Resistance: No
• Lead-free: Yes
• Impact Resistance: IK07

Recommendations

For a complete installation, use Hager compatible accessories such as corners, end caps, and mounting clips. Ensure proper screw fixing for secure attachment. Suitable for use with standard cables and wires.
