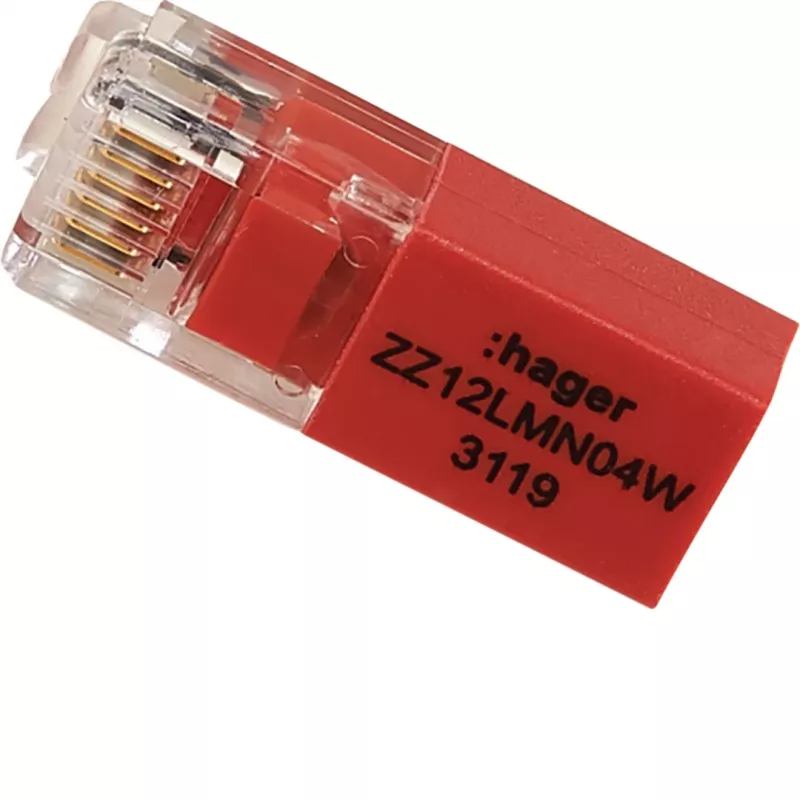

Hager resistência de terminação ZZ12LMN04W RJ12 para módulo LMN 120 Ohm

Installers and building automation technicians use the Hager ZZ12LMN04W termination resistor to properly terminate the LMN bus in Hager building automation and energy management systems. This plug-in resistor prevents signal reflections at the end of the bus line, ensuring stable communication between LMN modules.

Key specifications

• Resistance: 120 Ohm
• Connection: RJ12 plug
• Compatibility: Hager LMN bus system
• Function: Bus termination, signal reflection prevention
• Mounting: Direct plug-in to LMN module slot
• Operating temperature: -5 to +45 °C
• Storage temperature: -25 to +70 °C
• Protection degree: IP20
• Housing material: Plastic
• Compliance: RoHS, REACH

Why choose it

This termination resistor ensures reliable data transmission on the LMN bus by eliminating signal reflections that can cause communication errors. Its plug-in design makes installation quick and tool-free.

Ideal use cases

• Terminating the end of an LMN bus line in building automation
• Preventing signal degradation in energy management systems
• Ensuring stable communication between Hager LMN modules

Good to know

The resistor is a passive component and does not require a separate power supply. It is designed for indoor use in dry environments (IP20).
