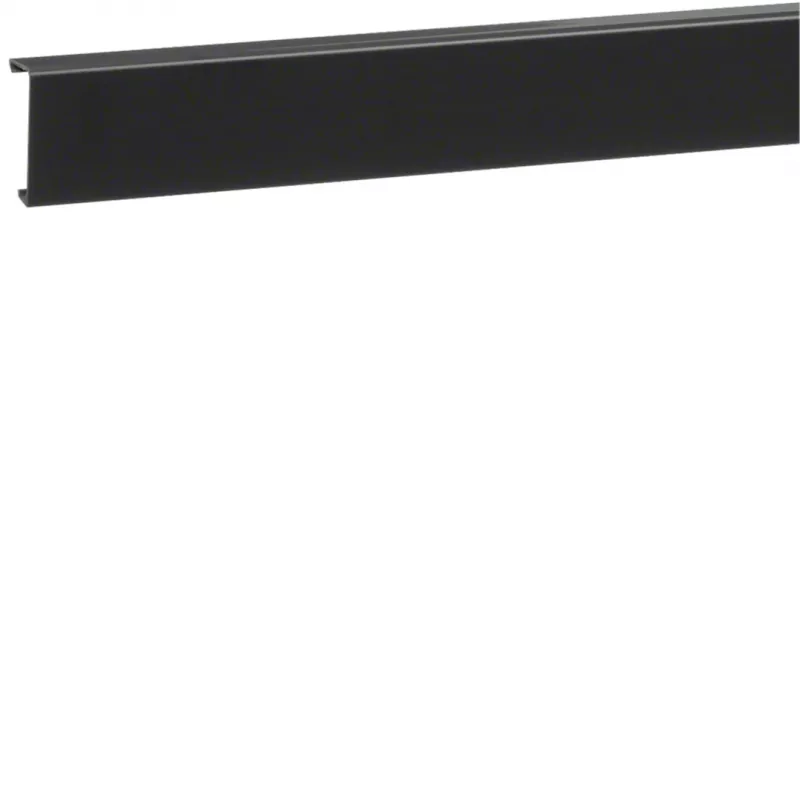

Hager SL2005529011 Calha de rodapé para cabos OT PVC SL 20x55 grafite preto 2 m

The Hager SL2005529011 is a skirting board cable duct that combines a slim 20 mm depth with a 55 mm height, making it a discreet yet spacious solution for routing cables along wall bases. Its graphite black (RAL 9011) PVC body blends into modern interiors while keeping wiring accessible and protected.

Highlights

• Single-compartment design with removable top cover for easy cable insertion and maintenance.
• Self-extinguishing PVC material (EN 61386-1) for enhanced fire safety.
• Impact resistance IK07 and IP30 protection against solid objects.
• Pre-punched base for quick wall mounting without additional drilling.
• 2-meter length, ideal for continuous runs in offices, homes, or commercial spaces.

In daily use

Install the duct along skirting boards to neatly conceal power, data, or communication cables. The removable cover allows for future cable changes without removing the entire duct. Its graphite black finish matches common dark floor trims and reduces visible dust accumulation.

Full specifications

• Product Type: Skirting Board Cable Duct
• Material: Polyvinyl Chloride (PVC)
• Colour: Graphite Black (RAL 9011)
• Duct Height: 55 mm
• Duct Width (Depth): 20 mm
• Length: 2000 mm
• Cover Type: Removable Top Part
• Number of Compartments: 1
• Halogen-Free: No
• Self-Extinguishing: Yes (according to EN 61386-1)
• Protection Class (IP): IP30
• Impact Resistance: IK07
• Operating Temperature Range: -5°C to +60°C
• Mounting Type: Wall mounting (pre-punched base)
• Standard Compliance: EN 50085-1, EN 50085-2-1
• Surface Finish: Untreated
• Insulation Voltage: 500 V
• Glow Wire Test: 850°C

Final note

With its precise dimensions and robust PVC construction, the Hager SL2005529011 offers a reliable cable management solution for both new installations and retrofits.
