HAGER SVN221 Sinalizador modular, 230V AC, 3 x LED verde, calha DIN

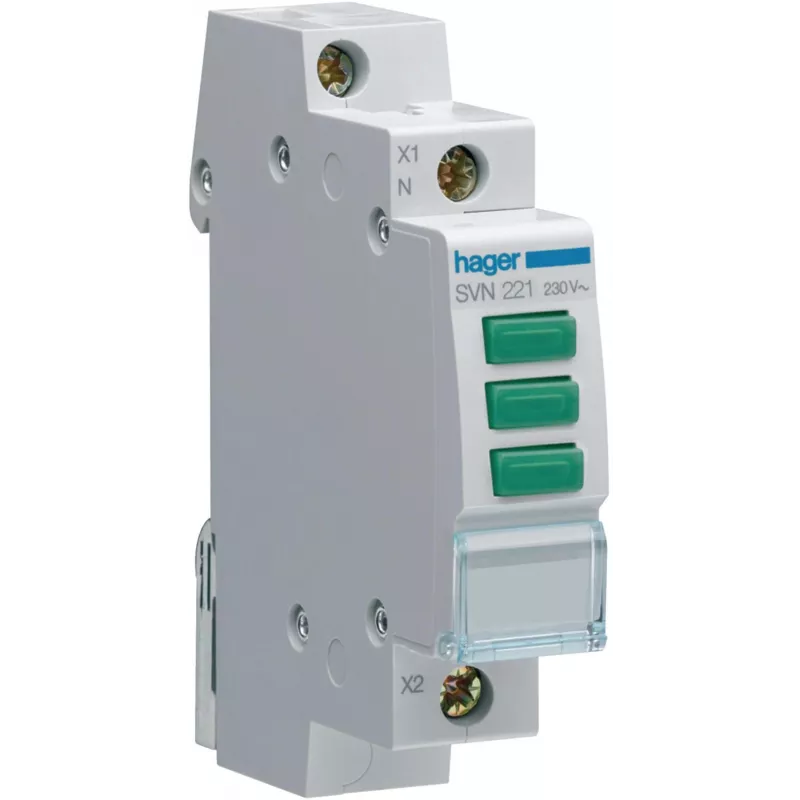

The HAGER SVN221 is a high-quality modular indicator light designed for industrial and commercial electrical installations. Operating at 230V AC, this compact device features three bright green LEDs to provide clear visual status indication. Its DIN rail mounting and 1-module width (18mm) make it ideal for use in distribution boards and control panels.

Advantages

Reliable LED technology ensures long service life and low power consumption (0.8W). The screw terminals allow secure and easy wiring, while the IP20 front protection and IP40 terminal protection ensure safe operation in typical indoor environments. Compliance with EN 60947-5-1 and EN 60947-1 guarantees adherence to international standards.

Suitable for

• Status indication in electrical distribution panels
• Industrial control systems
• Building automation and lighting control
• Machine and equipment signaling

Key specifications

• Product Type: Modular Indicator Light
• Operating Voltage: 230V AC
• Light Source: LED, 3 x Green
• Mounting: DIN Rail, 1 Module (18mm)
• Rated Insulation Voltage (Ui): 250V
• Rated Impulse Withstand Voltage (Uimp): 4kV
• Power Consumption: 0.8W
• Connection: Screw Terminals
• Terminal Capacity (Rigid): 1.5 - 4 mm²
• Terminal Capacity (Flexible): 1.5 - 2.5 mm²
• Protection Degree: IP20 (front), IP40 (terminals)
• Operating Temperature: -20 to +50 °C
• Storage Temperature: -40 to +70 °C
• Standards: EN 60947-5-1, EN 60947-1

Recommendations

For optimal performance, ensure the supply voltage is stable and within the specified range. Use appropriate cable cross-sections and tighten screw terminals to the recommended torque. This device is suitable for use in dry, indoor environments only.
