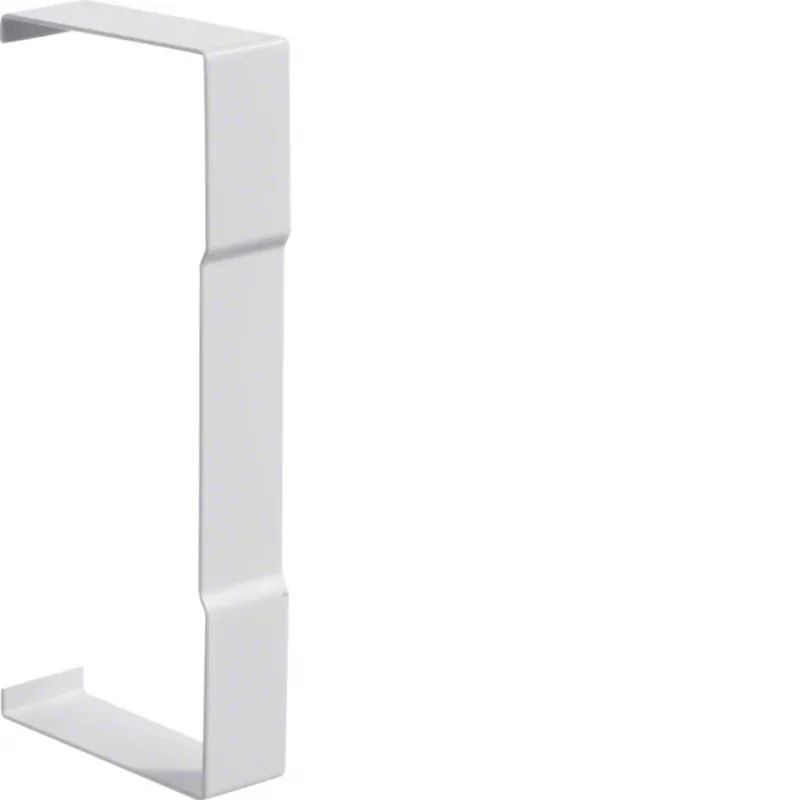

Hager tampa de corte BR6517079016 68x170mm OT 80mm branco tráfego (RAL 9016)

Electricians and installers working with Hager BR65x170mm cable trunking use this cut cover to neatly conceal and protect cut edges, ensuring a clean, professional finish. The cover snaps onto the trunking without tools, covering exposed cuts where trunking sections meet or terminate.

Key specifications

• Compatible trunking: Hager BR65x170mm
• Colour: Traffic White (RAL 9016)
• Material: PVC, halogen-free and self-extinguishing
• Mounting: Snap-on / clip-on
• Dimensions: 80 mm width, 170 mm height, approx. 20 mm depth
• Temperature resistance: -5°C to +60°C

Why choose it

This cut cover matches the trunking profile exactly, maintaining a seamless appearance. The halogen-free PVC material is self-extinguishing, adding safety in electrical installations. Its snap-on design allows quick installation without adhesives or screws.

Ideal use cases

• Finishing cut ends of Hager BR65x170mm trunking in commercial or residential wiring
• Covering joints where trunking meets walls, ceilings, or other trunking sections
• Retrofitting existing installations to improve appearance and edge protection

Good to know

The cover is designed specifically for Hager BR65x170mm trunking and is not a universal accessory. It provides protection rating IP30 when installed with compatible trunking. The product is RoHS compliant.
