HAGER TYMS616D Atuador KNX Secure de comutação/estore 16/8 vias

Equipped with 16 switching channels or 8 blind/shutter channels, the HAGER TYMS616D delivers high-density control for KNX installations. Each relay output handles up to 16 A, enabling direct switching of lighting and motor loads up to 2500 W incandescent or 1000 VA for blinds. KNX Secure encryption protects communication against unauthorized access.

Overview

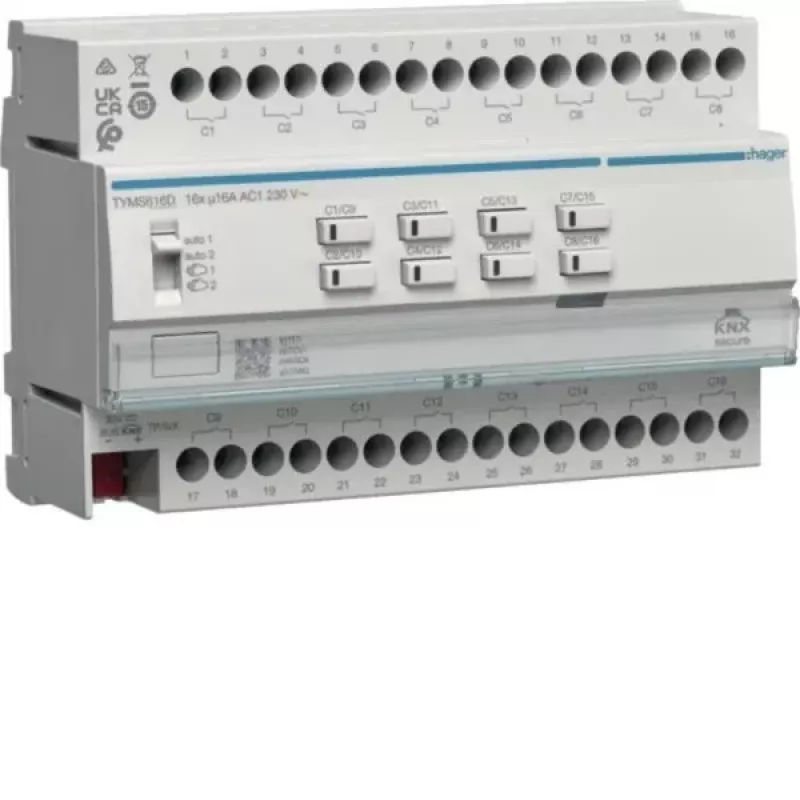

The TYMS616D is a DIN-rail mounted actuator (6 modules wide) that combines switching and blind control in one device. It operates on the KNX bus (21-30 V DC) and supports manual operation per channel for testing and commissioning. The actuator integrates logic functions such as scene control, time functions, forced operation, and status feedback, making it suitable for complex building automation.

What stands out

• 16 independent switching channels or 8 blind/shutter outputs
• High switching capacity: 16 A per channel, 2500 W incandescent load
• KNX Secure protocol for encrypted communication
• Manual override per channel for easy testing
• Compact 6 TE DIN rail housing

Technical details

• Rated voltage: 250 V AC
• Max. fluorescent load (uncompensated): 2500 VA
• Max. fluorescent load (compensated): 1300 VA (140 µF)
• Max. LED load (230V): 400 W
• Max. motor load (blinds): 1000 VA
• Operating temperature: -5 °C to +45 °C
• Protection class: IP20
• ETS software version: ETS5.7 or higher for Secure functionality

Our verdict

The HAGER TYMS616D is a versatile and secure actuator for KNX projects requiring both lighting and blind control. Its high channel count and robust switching capacity make it a reliable choice for medium to large installations.
