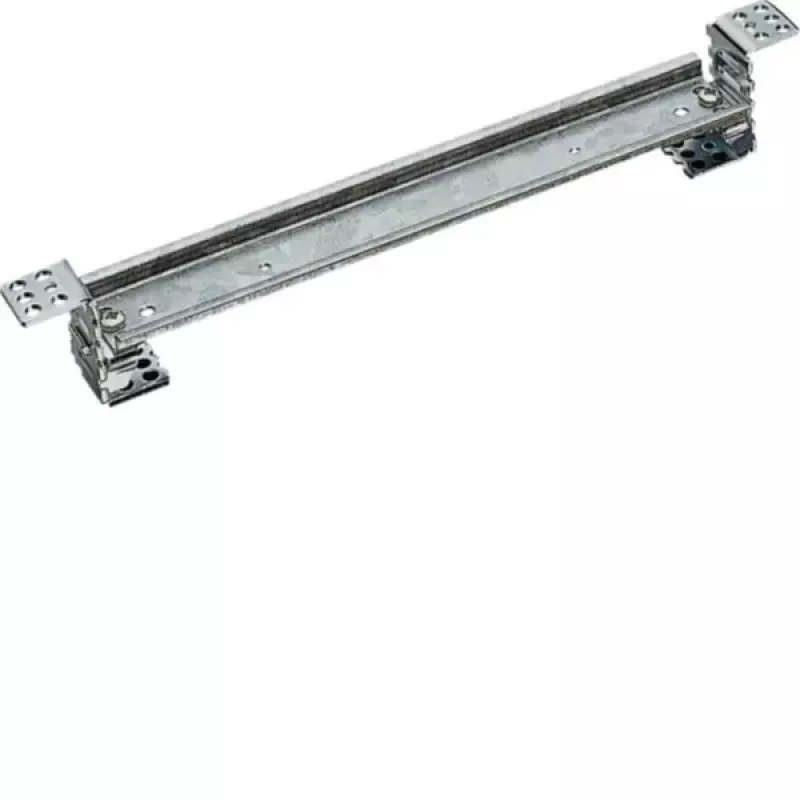

HAGER U82A calha DIN 35 x 7,5 mm, 1 m, aço, zincado, perfurado

Mounting electrical components inside control cabinets requires a stable, standardized rail. The HAGER U82A provides a 35 mm wide, 7.5 mm high DIN rail profile made of galvanized steel, ensuring secure attachment and corrosion resistance.

Who is it for

Panel builders, electricians, and machine manufacturers who install circuit breakers, relays, terminals, and other modular devices in industrial enclosures.

Main features

• Standard TS 35 profile (35 x 7.5 mm) compatible with common DIN rail mountable devices
• Galvanized and passivated steel for high corrosion resistance
• Perforated for screw mounting at regular intervals
• 1 meter length, can be cut to required size

Specifications

• Rail type: DIN Rail
• Standard: EN 60715 (TS 35)
• Profile dimensions (W x H): 35 x 7.5 mm
• Length: 1000 mm (1 m)
• Material: Steel
• Surface treatment: Galvanized and passivated
• Perforation: Yes
• Mounting type: Screw mounting
• Application: Mounting of electrical components in control cabinets
• Color: Silver / Metallic

Tips

Cut the rail to the exact length needed using a hacksaw or DIN rail cutter. Deburr the cut edges to avoid damaging components. Use appropriate screws and washers for secure mounting to the back panel.
