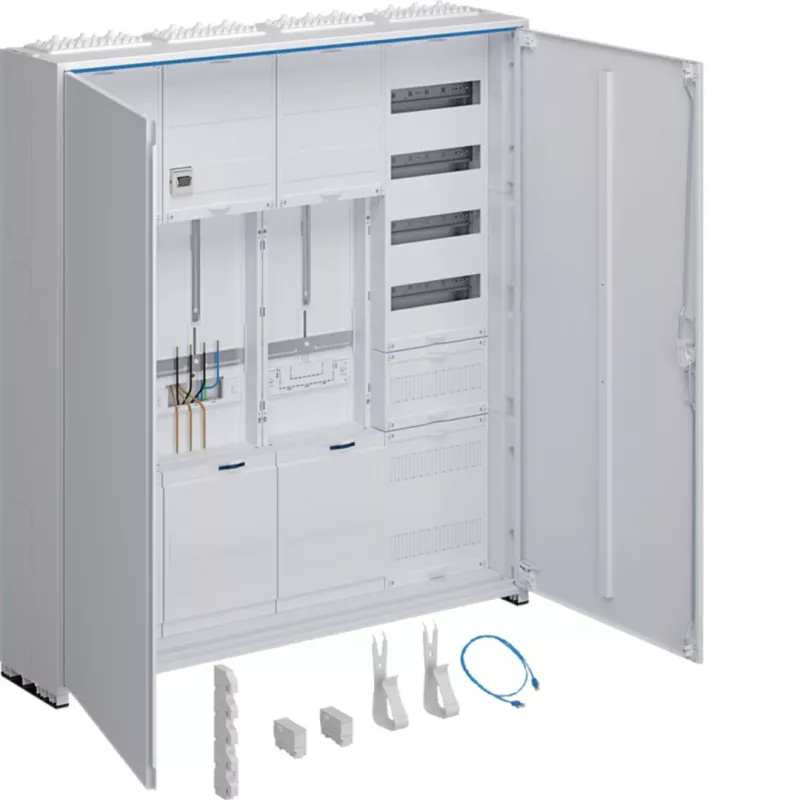

Hager universZ caixa completa de contador e distribuição, saliente, 2 lugares de contador, 3 pontos, campo APZ, 60 módulos, branco ZB343Q29ENT

Electrical installations in residential and commercial buildings require a central enclosure that safely houses the meter, main breaker, and distribution circuits while providing easy access for utility and maintenance personnel. The Hager universZ complete cabinet solves this by integrating a 3-point meter panel, an APZ field, and a distribution section in one surface-mounted unit.

Who is it for

This cabinet is intended for electricians and panel builders who need a compliant, ready-to-install enclosure for metering and power distribution in new or retrofit projects. It suits applications where a single cabinet must accommodate the utility meter, a main disconnect, and branch circuit protection.

Main features

• Complete cabinet with 2 meter places on 3-point mounting, suitable for three-phase metering
• Integrated APZ field (Anschlussplatz Zählerplatz) for utility connection and sealing
• One distribution field with 60 modules (5 rows of 12 modules each) on DIN rails
• Surface-mounted design with pre-punched knockouts for cable entry on top, bottom, and sides
• Opaque steel door with swivel lever lock and cylinder insert for secure access
• White sheet steel enclosure, RAL 9010, with IP44 protection

Specifications

• Series: Hager universZ
• Mounting type: Surface-mounted
• Number of meter places: 2 (3-point)
• Number of distribution fields: 1
• Modules per distribution field: 60 (5 x 12)
• Protection class: IP44
• Material: Sheet steel
• Colour: White (RAL 9010)
• Door type: Opaque steel door
• Rated current: up to 63 A
• Rated voltage: 230/400 V AC
• Number of phases: 3-phase
• Degree of protection: IK07
• Busbar system: 5-pole
• Standards: DIN VDE 0603-1, VDE-AR-N 4100
• Cable entry: Pre-punched knockouts (top, bottom, side)
• Lock type: Swivel lever lock with cylinder insert
• Internal grid units: 7 GU

Tips

Verify local utility requirements for meter panel configuration before installation. The APZ field allows sealing by the utility, ensuring tamper-proof metering. Plan cable routing using the pre-punched knockouts to maintain IP44 protection.
