Hager UT22C calha DIN isolada, calha de encaixe 35x7,5 mm, profundidade ajustável até 21 mm, cinzento

Fully insulated DIN rail with adjustable depth up to 21 mm for flexible mounting of electrical devices in distribution boards and control cabinets.

Overview

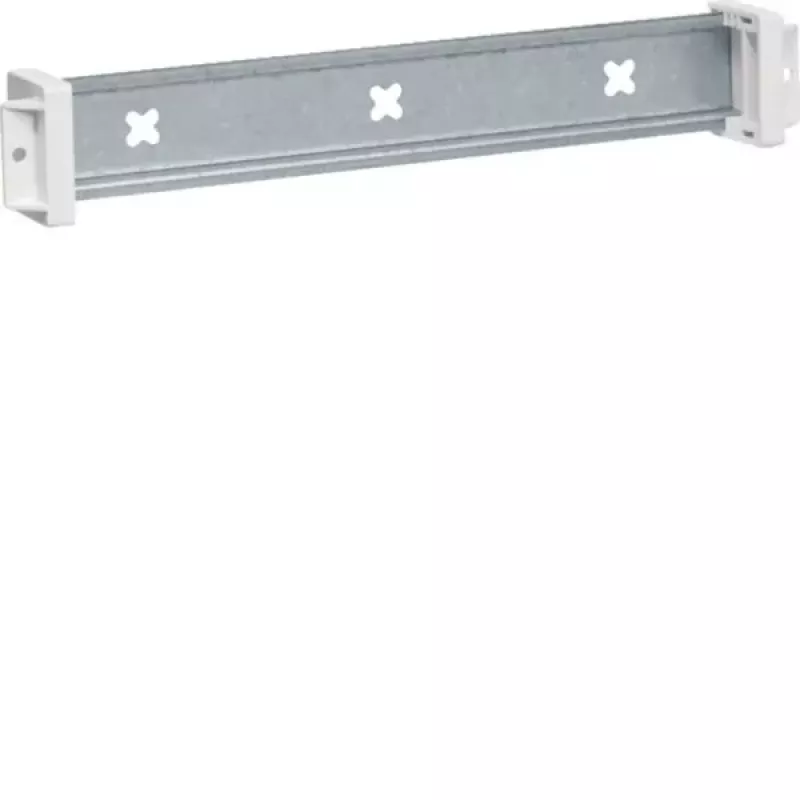

The Hager UT22C is a 35 mm top-hat DIN rail made from insulated plastic, providing electrical isolation and corrosion resistance. It features a 7.5 mm rail height and depth adjustability up to 21 mm, allowing precise alignment of mounted components. Compliant with EN 60715, it is suitable for modular devices, circuit breakers, terminal blocks, and contactors.

What stands out

• Fully insulated plastic construction for electrical safety
• Depth adjustable up to 21 mm for flexible installation
• Corrosion-resistant and electrically insulated
• Compatible with standard 35 mm top-hat mounting

Technical details

• Profile type: Top-hat (TH35-7.5)
• Rail width: 35 mm
• Rail height: 7.5 mm
• Depth adjustability: up to 21 mm
• Material: insulated plastic
• Colour: grey
• Standard compliance: EN 60715
• Mounting method: screw mounting
• Packaging unit: 1 piece

Our verdict

A reliable insulated DIN rail with adjustable depth, ideal for professional electrical installations requiring flexibility and safety.
