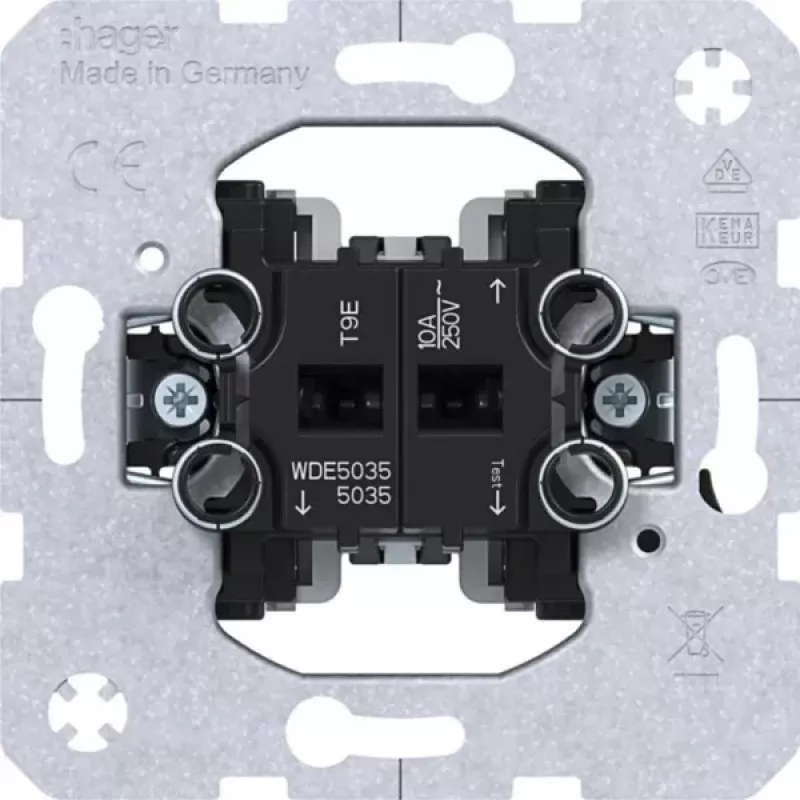

Hager WDE5035 Mecanismo interruptor de série, 2 contactos NO, entrada comum, encastrar

Rated for 10 A at 250 V AC, the Hager WDE5035 series switch insert delivers robust switching for residential and commercial circuits. This flush-mounted module provides two normally open (NO) contacts with a shared input terminal, simplifying wiring for staircase or multi-point control.

Overview

The WDE5035 is a 2-module switch insert from Hager, designed for use with the Legrand Valena Life and Valena Allure ranges. It functions as a series switch (double push-button) with momentary action, allowing control of two separate circuits from a single point. The common input terminal reduces wiring effort and ensures a neat installation.

What stands out

• Two NO contacts with common input for versatile switching.
• 10 AX switching capacity handles inductive loads like fluorescent lighting.
• Screw terminals accept up to 2.5 mm² rigid conductors.
• Halogen-free thermoplastic construction for safety and durability.
• IP20 protection suitable for indoor dry locations.

Technical details

• Product type: Switch insert
• Switch function: Series switch (double push-button)
• Number of contacts: 2 (normally open)
• Common input terminal: Yes
• Mounting type: Flush-mounted (UP)
• Rated voltage: 250 V AC
• Rated current: 10 A
• Switching capacity: 10 AX
• Connection type: Screw terminals
• Terminal capacity: Up to 2.5 mm² rigid conductor
• Material: Thermoplastic, halogen-free
• IP protection class: IP20
• Operating principle: Momentary (push-button)
• Compatibility: Requires Valena Life / Valena Allure rocker and cover frame
• Number of modules: 2-module
• Operating temperature range: -5°C to +40°C

Our verdict

The Hager WDE5035 is a reliable and efficient switch insert for professional electricians. Its dual NO contacts with common input streamline installations, and the 10 AX rating ensures compatibility with a wide range of lighting loads. Pair it with matching Valena rockers and frames for a complete, modern solution.
