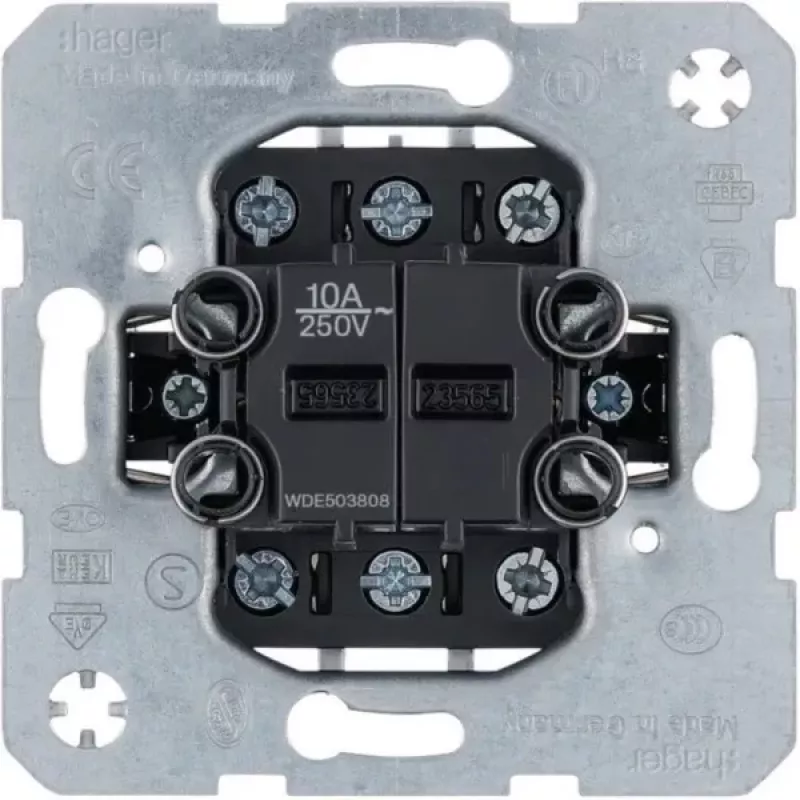

Hager WDE503808 Interruptor de comutação de série 2 vias 2 contactos de comutação terminais de entrada separados encastrado branco

The Hager WDE503808 is a high-quality series changeover switch designed for professional electrical installations. This 2-gang switch features two separate changeover contacts with independent input terminals, allowing flexible control of lighting or other electrical circuits from multiple locations. Manufactured by Hager, a trusted brand in electrical distribution and control, this switch mechanism is built to last with halogen-free thermoplastic material and meets EN 60669-1 standards.

Advantages

Reliable switching performance with 10 AX rated current at 250 V AC. Separate input terminals for each switch ensure clean wiring and independent circuit control. Flush-mount design integrates seamlessly with Hager cover plates and frames, including Kallysto and Lumina series. Screw terminals accept 1.5 to 2.5 mm² rigid conductors for secure connections. Compact installation depth of approximately 32 mm fits standard wall boxes.

Suitable for

• Residential and commercial lighting control
• Two-way or intermediate switching applications
• Replacement or new installations in Hager switch systems
• Use with Hager standard cover plates and frames

Key specifications

• Switch Type: Series Changeover Switch
• Number of Gangs: 2-Gang
• Number of Contacts: 2 Changeover (2-Way)
• Input Terminals: Separate for each switch
• Rated Current: 10 AX
• Rated Voltage: 250 V AC
• Mounting Type: Flush-mounted
• Connection Type: Screw Terminals
• Material: Thermoplastic, Halogen-free
• IP Protection Class: IP20
• Terminal Capacity: 1.5 - 2.5 mm² rigid conductor
• Color of Mechanism: White
• Operating Temperature: -5 to +40 °C
• Design: Modular insert
• Function: Switching
• Number of Terminals: 6
• Installation Depth: Approx. 32 mm
• Standards: EN 60669-1
• Type of Actuation: Rocker/Toggle (requires separate rocker)

Recommendations

For a complete installation, pair this switch mechanism with a compatible Hager cover plate and rocker from the Kallysto or Lumina series. Ensure the wall box depth accommodates the 32 mm mechanism. Always follow local electrical codes and safety regulations.
