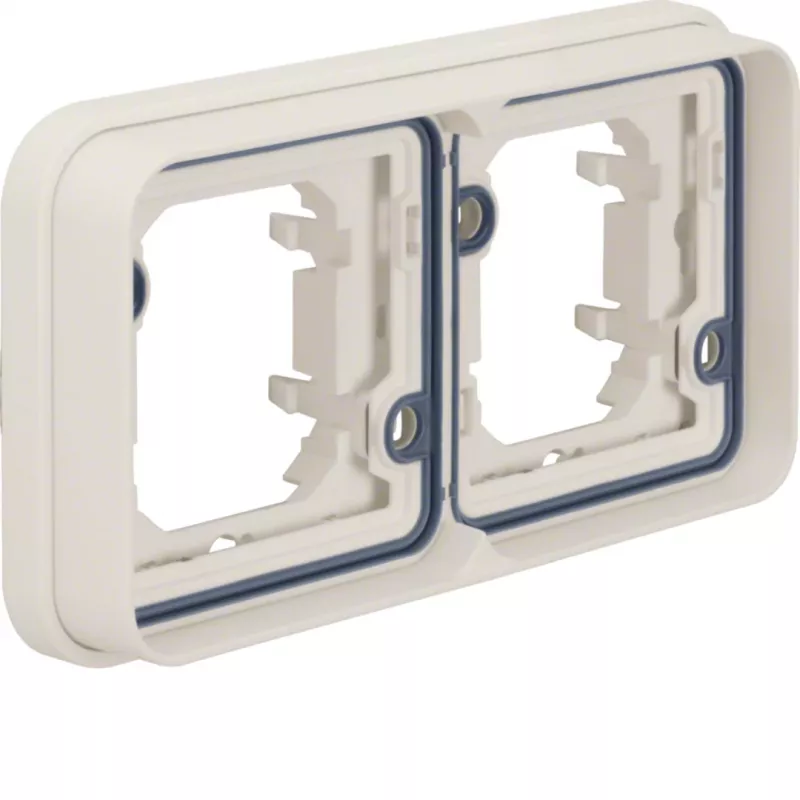

Hager WNA402B W.1 moldura de cobertura 2 módulos horizontal, branco polar, IP55

The Hager WNA402B is a high-quality 2-gang horizontal cover frame from the W.1 series, designed for flush-mounted installations. Manufactured by Hager, a leading brand in electrical installation technology, this frame offers a sleek, flat design in polar white (RAL 9010). It is crafted from durable, halogen-free thermoplastic with a matte finish, providing excellent UV resistance and easy cleaning. With an IP55 rating, it is protected against dust and water jets, making it suitable for demanding environments. The frame is impact-resistant (IK07) and operates reliably in temperatures from -5 to +40 °C.

Advantages

This cover frame combines aesthetic appeal with robust functionality. Its polar white color blends seamlessly with modern interiors, while the easy-to-clean surface ensures long-lasting beauty. The IP55 and IK07 ratings guarantee protection in industrial or outdoor settings. Being halogen-free and UV-resistant, it meets high safety and durability standards.

Suitable for

• Flush-mounted installations in residential, commercial, and industrial buildings
• Use with Hager W.1 series inserts such as switches, sockets, and push-buttons
• Applications requiring dust and water jet protection (IP55)
• Areas where impact resistance (IK07) is needed

Key specifications

• Product Type: Cover Frame
• Number of Gangs: 2-gang
• Mounting Orientation: Horizontal
• Installation Type: Flush-mounted (UP)
• Series: Hager W.1
• Colour: Polar White (RAL 9010)
• Material: Thermoplastic
• Surface: Untreated / Matte
• Ingress Protection: IP55
• Impact Protection: IK07
• Halogen-Free: Yes
• UV-Resistant: Yes
• Operating Temperature: -5 to +40 °C
• Storage Temperature: -25 to +55 °C
• Design: Flat

Recommendations

For optimal performance, pair this frame with genuine Hager W.1 series inserts. Ensure proper sealing for IP55 protection. Suitable for indoor and outdoor use where specified.
