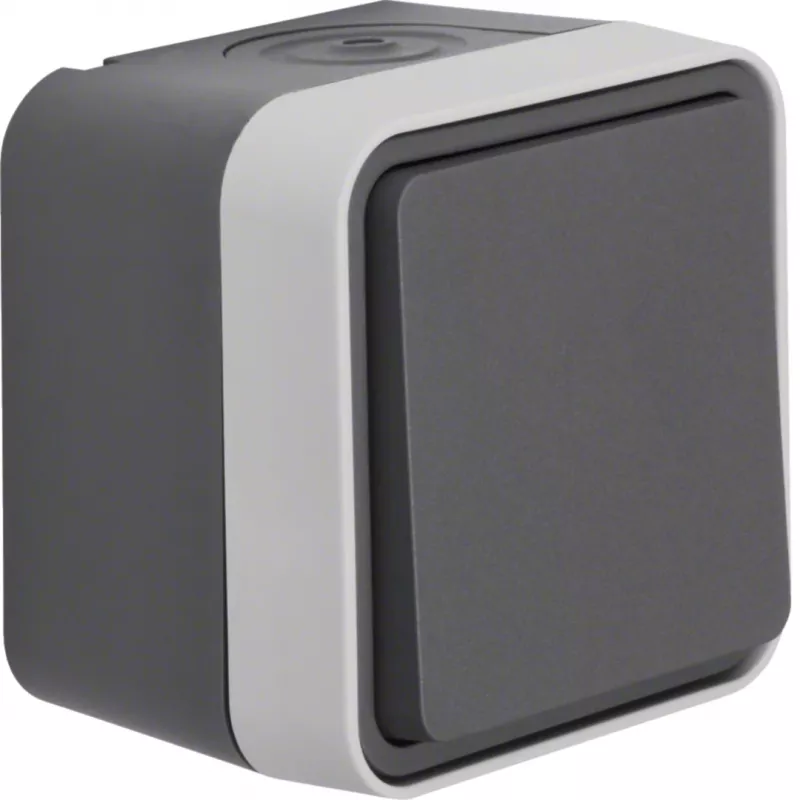

Hager WNC011 interruptor duplo de superfície, série W.1, IP55, cinzento

IP55-rated protection against dust and water jets makes the Hager WNC011 two-way switch a robust choice for demanding residential and commercial circuits. Rated at 10 AX and 250 V AC, this surface-mounted switch delivers reliable switching even in damp or dusty environments.

Overview

The Hager WNC011 is a surface-mounted two-way switch from the W.1 series, finished in grey. It features a single rocker for straightforward control and screw terminals for secure wiring. Constructed from halogen-free thermoplastic, it meets strict safety standards including an 850 °C glow wire test and IK07 impact resistance.

What stands out

• IP55 protection against dust and water jets
• Halogen-free thermoplastic housing
• High impact resistance (IK07)
• Wide operating temperature range (-25 to 40 °C)
• Suitable for damp rooms

Technical details

• Switch function: Two-way (changeover)
• Mounting type: Surface-mounted
• Rated current: 10 AX
• Rated voltage: 250 V AC
• Connection type: Screw terminals
• Terminal capacity: 1.5 - 2.5 mm² (rigid and flexible)
• Material: Thermoplastic, halogen-free
• Glow wire test: 850 °C
• Impact resistance: IK07
• Degree of pollution: 2
• Operating temperature: -25 to 40 °C

Our verdict

A rugged and reliable two-way switch that excels in challenging environments, combining safety, durability, and ease of installation.
