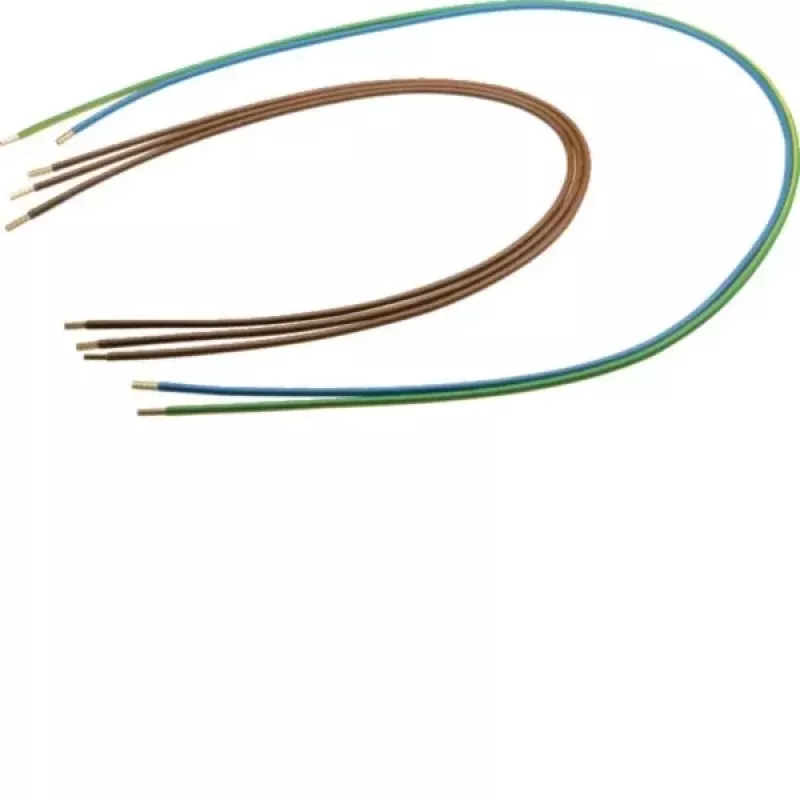

HAGER Y89T Chicote de cabos de saída de 5 polos, 3m, ficha Wieland GST18i5 para extremidade livre

5-pole output cable harness for power distribution and lighting installations, featuring a Wieland GST18i5 male connector on one end and stripped wires on the other. The 3-meter H05VV-F cable with 1.5 mm² conductors supports up to 16 A at 250 V AC, making it a reliable link in building automation systems.

Advantages

Pre-assembled connector saves installation time and reduces wiring errors. The flexible PVC jacket withstands temperatures from -5°C to +70°C, suitable for indoor use. The GST18i5 system offers secure, tool-free mating for quick commissioning.

Suitable for

• Connecting luminaires and power distribution blocks
• Building automation and control cabinet wiring
• Wieland GST18i5 compatible installations

Key specifications

• Connector: Wieland GST18i5 male, 5-pole
• Second end: stripped wires
• Cable length: 3 m
• Conductor cross-section: 1.5 mm²
• Rated voltage: 250 V AC
• Rated current: 16 A
• Cable type: H05VV-F, PVC jacket, black
• Operating temperature: -5°C to +70°C

Recommendations

Verify polarity and strain relief before energizing. For outdoor or damp locations, use an appropriate enclosure as the connector is IP20 rated.
