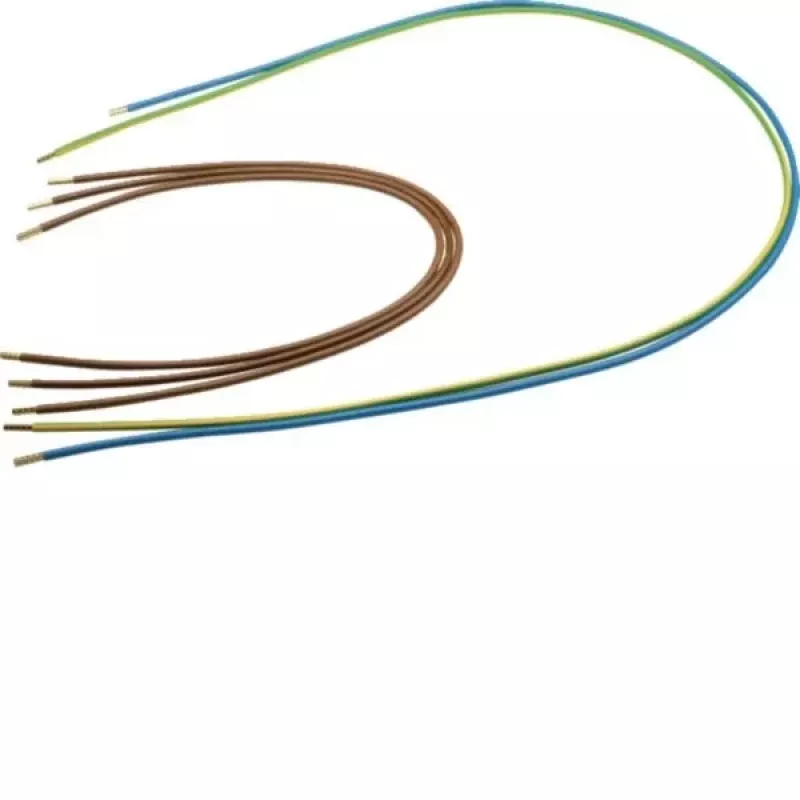

Hager Y89Z feixe de cabos de saída de 5 polos, 10 mm², 63 A, 400 V, para distribuidor univers Z

In distribution boards, connecting the main busbar to outgoing circuit protection devices often requires time-consuming individual wiring. The Hager Y89Z solves this by providing a pre-assembled 5-pole cable harness that streamlines installation and ensures reliable connections.

Who is it for

Electricians and panel builders who install or maintain Hager univers Z distribution systems and need a fast, dependable way to wire outgoing circuits.

Main features

• 5-pole configuration (3P+N+PE) for three-phase outgoing circuits
• 10 mm² copper conductors rated for 63 A and 400 V AC
• Pre-assembled with wire end ferrules on one side for quick connection
• Flexible single-core PVC-insulated cables with standard colour coding
• Designed specifically for Hager univers Z distribution boards

Specifications

• Product type: Cable harness
• Number of poles: 5-pole (3P+N+PE)
• Conductor cross-section: 10 mm²
• Rated current: 63 A
• Rated voltage: 400 V AC
• Conductor material: Copper
• Insulation material: PVC
• Connection type: Pre-assembled with wire end ferrules on one side
• Colour coding: Brown, Black, Grey, Blue, Green/Yellow
• Cable type: Flexible single-core
• Compatibility: Hager univers Z distribution systems

Tips

Verify the required cable length and bending radius for your specific installation. Always de-energize the distribution board before installation.
