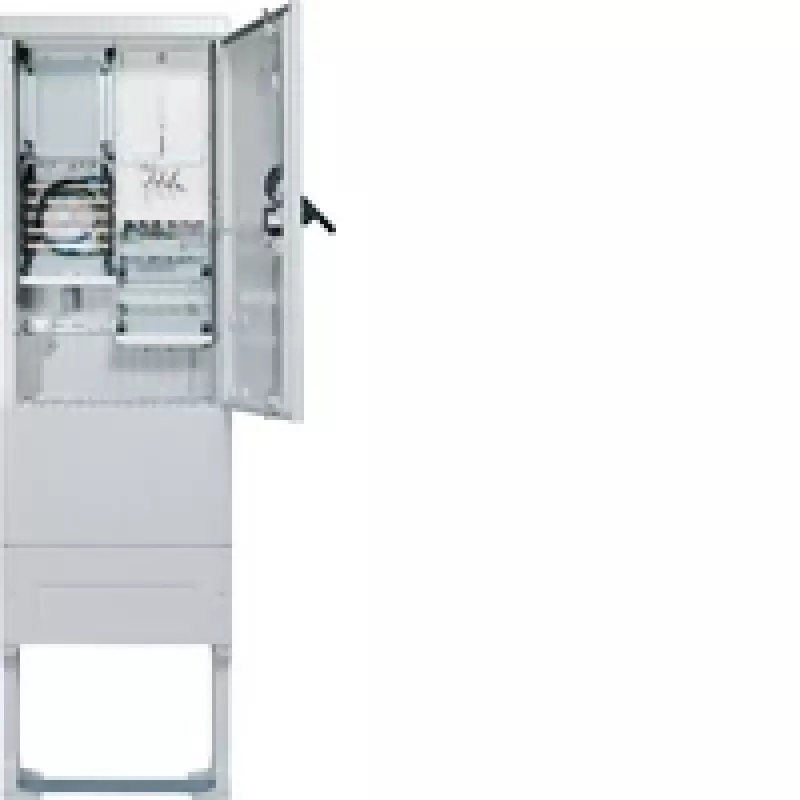

Hager ZAS205BD15A coluna de ligação de contadores 205 Base 1 metro 3 seccionadores de carga com fusíveis NH 5 polos + espaço APZ

The Hager ZAS205BD15A is a robust meter connection column from the 205 series, designed for freestanding outdoor installation. It provides a complete metering and distribution solution for single electronic household meters (eHZ) with three NH00 fuse carriers and integrated APZ space, compliant with DIN VDE AR-N 4100.

Advantages

This column offers a compact, all-in-one design that simplifies installation and reduces on-site wiring. The glass-fiber reinforced polyester (GRP) housing ensures high durability and weather resistance (IP44). Integrated APZ space allows for additional communication or control devices, future-proofing your installation.

Suitable for

• Single electronic household meter (eHZ) installations
• Three-phase (3P+N+PE) supply systems up to 63 A
• Outdoor freestanding applications requiring IP44 protection
• Compliance with German VDE AR-N 4100 standards

Key specifications

• Brand: Hager
• Model: ZAS205BD15A
• MPN: ZAS205BD15A
• EAN: 3250611073277
• Number of meter positions: 1 (eHZ)
• Number of main distribution fields: 3 (for NH00 fuses)
• Number of poles: 5 (3P+N+PE)
• Rated current (In): 63 A
• Rated voltage (Un): 230/400 V AC
• Frequency: 50 Hz
• Protection degree: IP44
• Housing material: Glass-fiber reinforced polyester (GRP)
• Mounting type: Freestanding / floor mounting
• Overall height: 1500 mm
• Width: 500 mm
• Depth: 250 mm
• Cable entry: Bottom
• Meter type: Electronic household meter (eHZ)
• Standards: DIN VDE AR-N 4100, DIN 43870-1
• Main switch: NH00 fuse base
• Connection terminals: Screw terminals
• Colour: Light grey (RAL 7035)

Recommendations

For optimal performance, use with Hager compatible eHZ meters and NH00 fuse links. Ensure proper grounding according to local regulations. The column is designed for outdoor use but should be installed on a stable, level surface.
