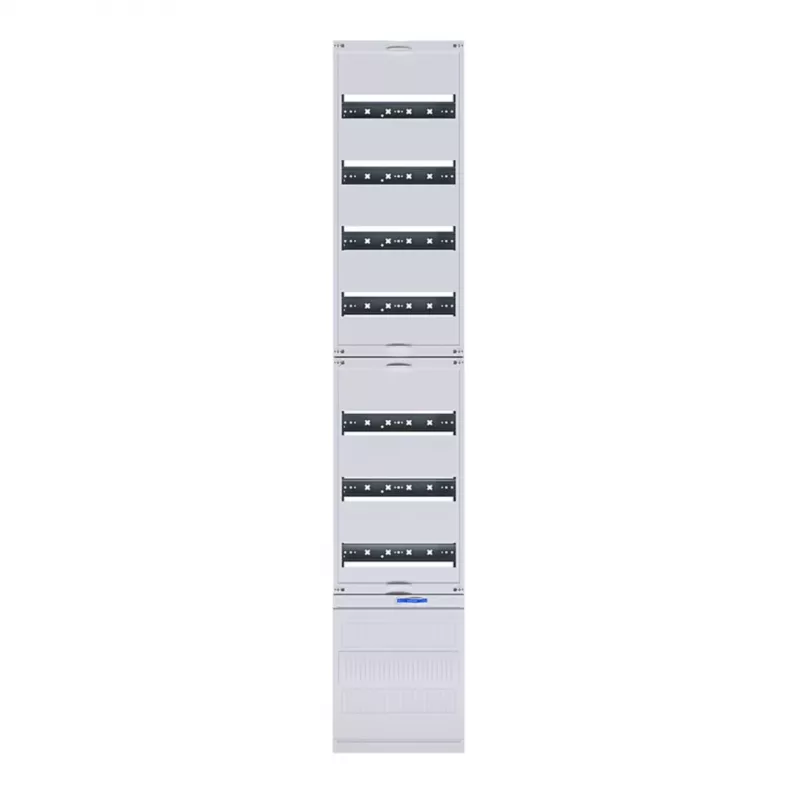

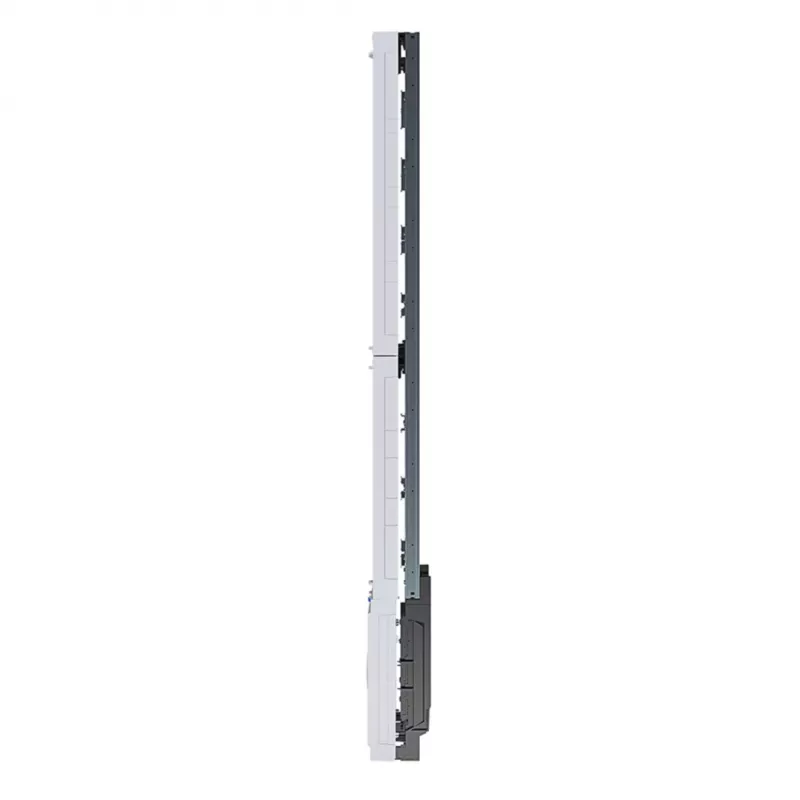

Hager ZH53XS módulo de montagem de distribuição, 12 TE, 7 filas, blocos de terminais N+PE, cinzento claro

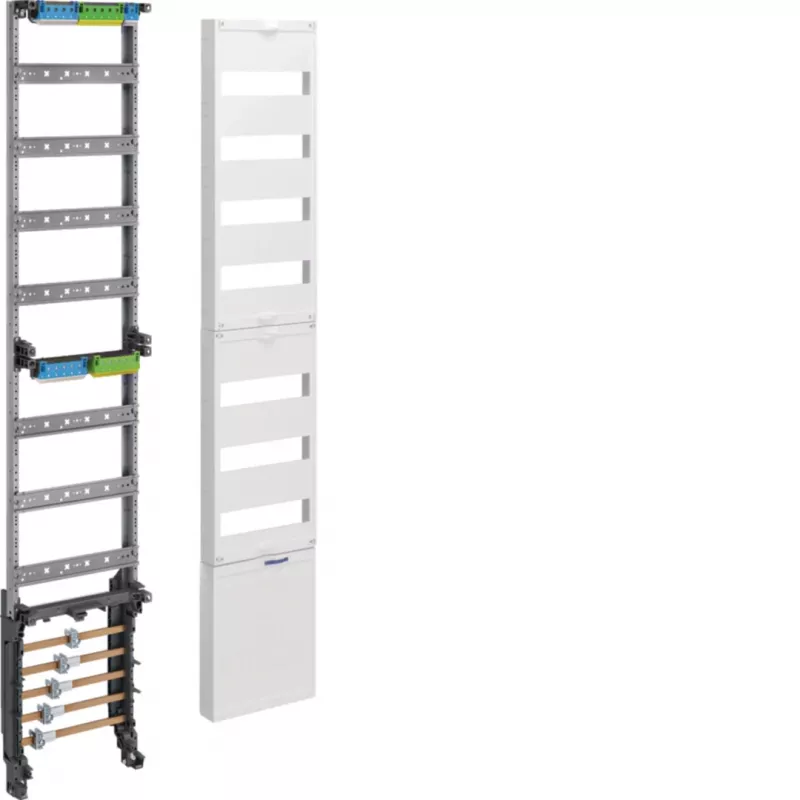

Electricians and panel builders installing a Hager universZ cabinet will use the ZH53XS distribution assembly module to quickly set up a multi-row distribution board. This pre-assembled unit provides seven rows, each with 12 module widths (TE), giving a total capacity of 84 TE. It comes with integrated N and PE terminal blocks and pre-cut device openings, reducing installation time.

Key specifications

• Module width: 12 TE per row
• Number of rows: 7
• Total module capacity: 84 TE
• Terminal blocks: N + PE included
• Pre-assembled with device cutouts
• Mounting: snap-in for cabinet installation
• Material: galvanized steel sheet frame, plastic covers
• Colour: light grey (RAL 7035)
• Rated voltage: 400 V AC
• Rated current: 250 A
• Protection class: IP2XC when installed in a cabinet
• Standards: DIN VDE 0603-1, DIN 43870-1
• Installation position: vertical
• Depth: 205 mm

Why choose it

The ZH53XS saves time on site. Instead of assembling individual rows and wiring terminal blocks, you mount one complete module into the cabinet. The pre-punched openings and integrated N/PE terminals mean fewer separate parts to order and install. Its galvanized steel frame ensures durability, and the light grey finish matches the universZ cabinet range.

Ideal use cases

• Residential distribution boards with multiple circuits
• Commercial electrical panels requiring organized circuit arrangement
• Industrial control cabinets where quick assembly is essential

Good to know

The module is designed for vertical installation inside a Hager universZ cabinet. It meets DIN VDE 0603-1 and DIN 43870-1 standards. The IP2XC protection rating applies only when the module is properly installed within a suitable enclosure.
