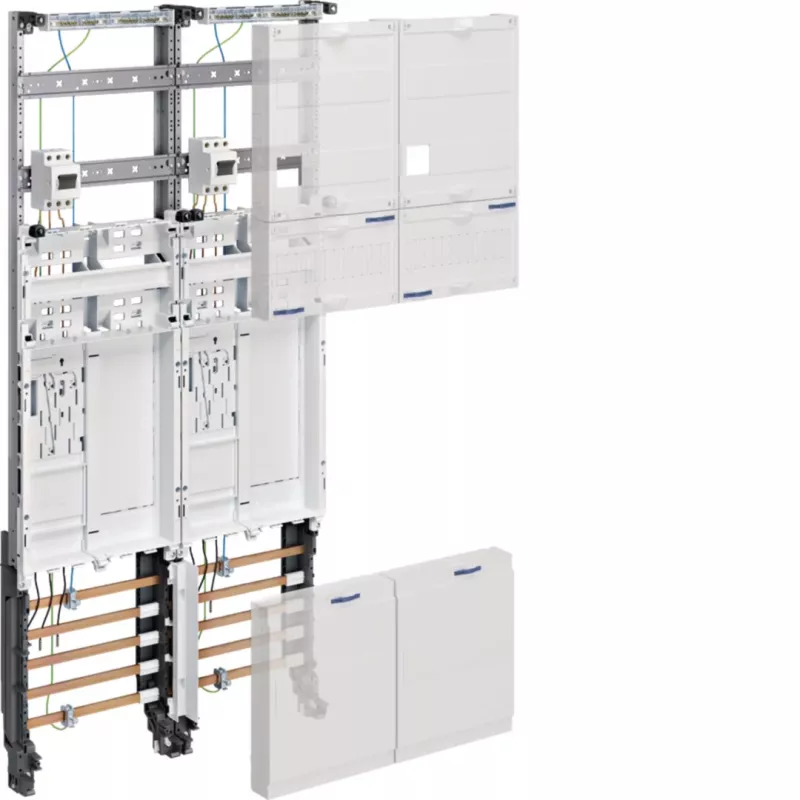

HAGER ZK3EH62 Quadro completo, 2 lugares de contador, BKE-I, interruptor principal

The HAGER ZK3EH62 is a complete meter distribution field engineered for residential and commercial electrical installations. It integrates two eHZ meter positions with BKE-I mounting, a 3-pole 63 A main switch, and a three-row distribution field, all in one pre-wired unit. This design simplifies planning and installation compared to assembling separate components, ensuring compliance with DIN VDE 0603-1 and DIN 43870-1.

Highlights

• Two meter positions with BKE-I mounting for eHZ meters
• Integrated 3-pole main switch rated 63 A
• 5-pole busbar system rated 250 A for reliable power distribution
• Distribution field with 3 rows, total 36 pitch units (12 TE per row)
• Rated voltage 230/400 V AC, suitable for three-phase systems
• Protection class IP2XC, designed for cabinet installation

In daily use

The ZK3EH62 is built for straightforward integration into Hager univers Z cabinets. Its compact steel sheet and plastic construction houses all essential components, reducing wiring effort and potential errors. The main switch allows safe isolation of the entire installation, while the busbar system ensures stable power distribution to downstream circuits. The three distribution rows provide ample space for circuit breakers and residual current devices.

Full specifications

• Number of meter positions: 2
• Meter mounting type: BKE-I (for eHZ meters)
• Integrated main switch: 3-pole, 63 A
• Busbar system: 5-pole, 250 A
• Distribution field: 3 rows, 36 TE total
• Rated voltage: 230/400 V AC
• Protection class: IP2XC
• Mounting: for cabinet installation (e.g., Hager univers Z)
• Connection type: screw terminals
• Material: steel sheet / plastic
• Standards: DIN VDE 0603-1, DIN 43870-1
• System type: 3-phase

Final note

The HAGER ZK3EH62 offers a pre-assembled solution that reduces installation time and ensures consistent quality, making it a practical choice for electricians and panel builders.
