HANWHA gravador de vídeo multissinal - 4x AHD/HDTVI/HDCVI/FBAS - 6x IP - H.265 - 1x SATA - sem disco

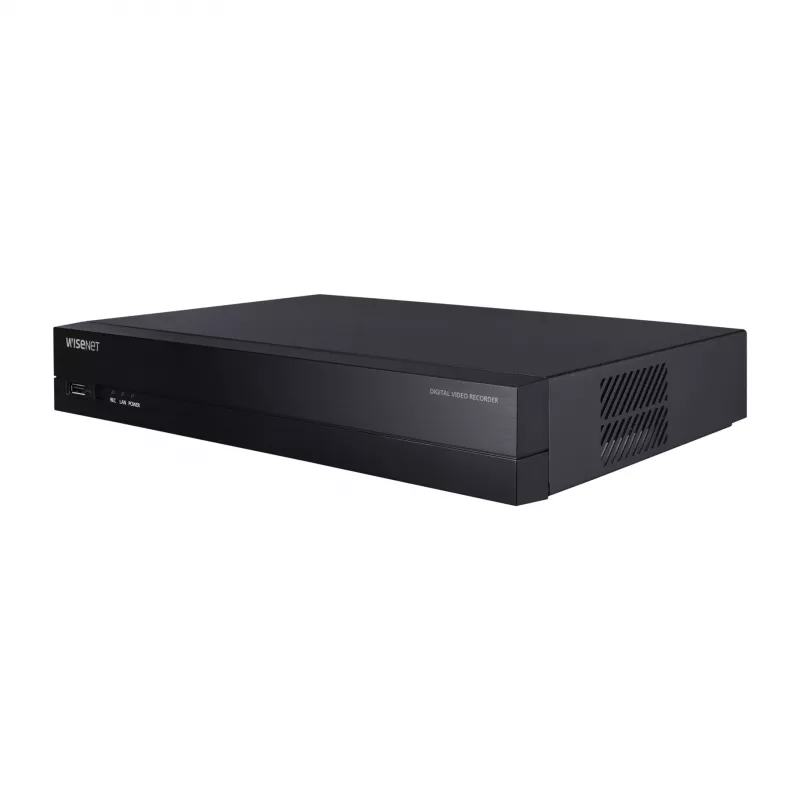

The HANWHA HRX-434 is a versatile multisignal video recorder designed for professional surveillance systems. Supporting up to 4 analog channels (AHD/HDTVI/HDCVI/CVBS) and 6 IP channels, it offers flexible integration with existing and new cameras. With H.265 compression, it maximizes storage efficiency while maintaining high-quality video. The recorder features a single SATA bay supporting up to 6TB, making it ideal for small to medium installations. Its compact design and low power consumption ensure reliable 24/7 operation.

Advantages

Multisignal compatibility allows mixing analog and IP cameras without additional converters. H.265 compression reduces bandwidth and storage requirements by up to 50% compared to H.264. The embedded Linux OS provides stable, virus-resistant performance. Easy remote access via mobile apps (Android/iOS) enables real-time monitoring from anywhere.

Suitable for

• Retail stores requiring a mix of analog and IP cameras
• Small offices needing a cost-effective 10-channel recorder
• Upgrading existing analog systems to include IP cameras
• Warehouses and workshops with limited network infrastructure

Key specifications

• Video Input: 4 Analog (AHD/HDTVI/HDCVI/CVBS) + 6 IP (ONVIF/Wisenet)
• Max Recording Resolution: 8MP @ 15fps (analog), 8MP (IP)
• Compression: H.265, H.264, MJPEG
• Storage: 1x SATA bay, up to 6TB (HDD not included)
• Video Output: 1x HDMI, 1x VGA
• Audio: 4x RCA In, 1x RCA Out
• Alarm: 4x In, 1x Out
• Network: 1x RJ-45 10/100Mbps
• USB: 2x USB 2.0 (front/rear)
• Power: 12V DC, 3A, max 18W

Recommendations

Pair with a compatible HANWHA Wisenet IP camera for seamless integration. For optimal performance, use a surveillance-grade HDD (e.g., WD Purple or Seagate SkyHawk) up to 6TB. Ensure network cabling meets CAT5e or higher standards for IP camera connections.
