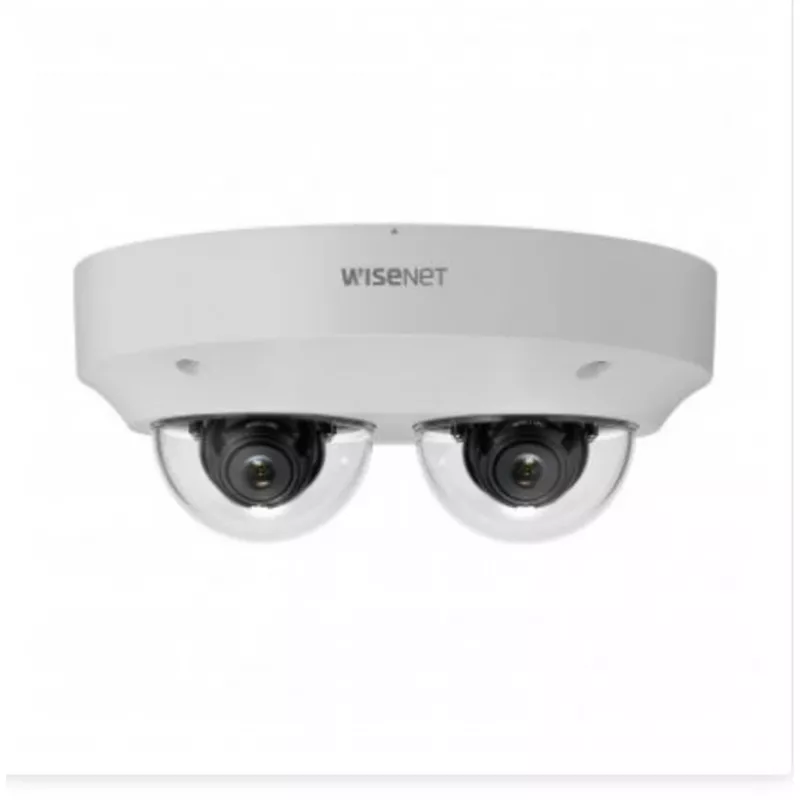

HANWHA VISION PNM-C12083RVD Câmara de Rede Multidirecional IR Dome, Dia/Noite, 3,54-6,69 mm, 2x 3328x1872, WDR, IP66, IK10

The HANWHA VISION PNM-C12083RVD is a high-performance network multidirectional IR dome camera designed for demanding surveillance applications. Featuring dual 6MP sensors with motorized varifocal lenses, it delivers exceptional image quality with 120dB wide dynamic range and true day/night functionality. Its rugged IP66 and IK10 ratings ensure reliable operation in harsh outdoor environments.

Advantages

Dual-sensor design provides comprehensive coverage with two independent channels, each offering 6MP resolution (3328x1872). The motorized varifocal lens (3.54-6.69mm) allows remote adjustment of field of view. Integrated IR illumination up to 30m per channel enables clear imaging in complete darkness. Advanced analytics including object detection, virtual line, and loitering enhance security intelligence.

Suitable for

• Perimeter surveillance for commercial and industrial sites
• Parking lots, warehouses, and logistics centers
• Retail stores and public spaces requiring wide-area monitoring
• Critical infrastructure protection with vandal-resistant housing

Key specifications

• Camera Type: Multidirectional Dome IP Camera
• Number of Sensors: 2
• Sensor Resolution: 2x 6 Megapixel (3328 x 1872)
• Lens Type: Motorized Varifocal, 3.54 ~ 6.69 mm (per channel)
• IR Illumination Range: Up to 30m (per channel)
• Day/Night: True Day/Night (ICR)
• Wide Dynamic Range: 120dB
• Video Compression: H.265, H.264, MJPEG
• Network Interface: RJ-45 (10/100BASE-T)
• Power Input: PoE+ (IEEE 802.3at), 12VDC
• Ingress Protection: IP66
• Vandal Resistance: IK10
• On-board Storage: 2x MicroSD/SDHC/SDXC slots (up to 256GB each)
• Operating Temperature: -40°C to +55°C (-40°F to +131°F)
• Analytics: Object detection, Virtual line, Enter/Exit, Loitering, Tampering
• Audio Support: Two-way (Mic in/Line in, Line out)

Recommendations

For optimal performance, use a PoE+ switch or injector to power the camera and transmit data over a single cable. Ensure the mounting surface can support the camera's weight and provides a stable base for the dome housing. Regular firmware updates are recommended to maintain security and functionality.
