HANWHA VISION WiseNet X XNP-6120H câmara de vigilância de rede - PTZ - exterior - antivandalismo - dia e noite

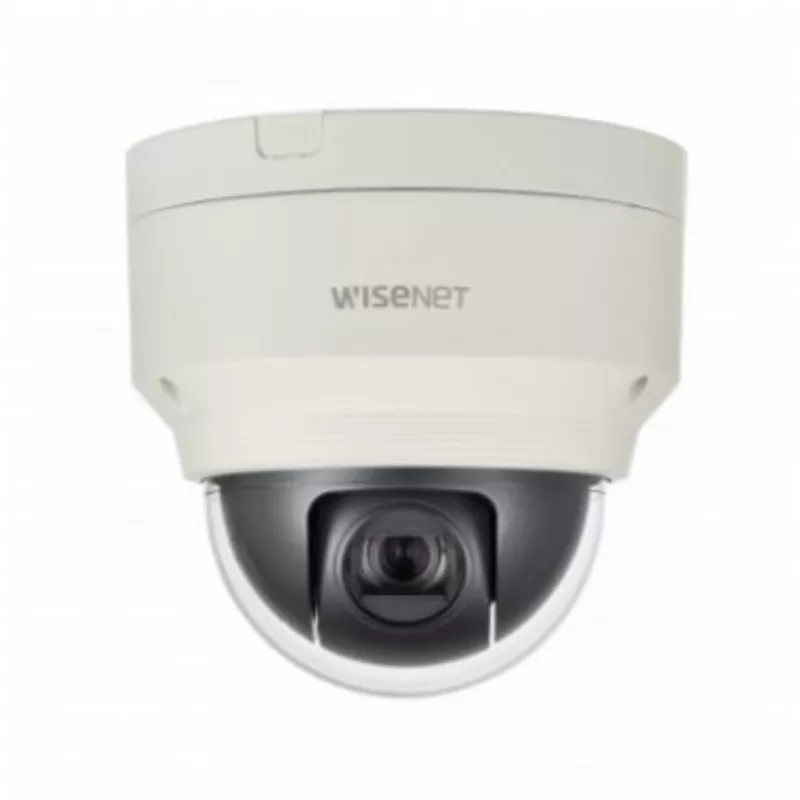

The HANWHA VISION WiseNet X XNP-6120H is a high-performance PTZ network surveillance camera designed for demanding outdoor environments. With 2MP resolution, 12x optical zoom, and advanced WiseNet X technology, it delivers exceptional image quality and intelligent analytics. Its vandal-proof (IK10) and weatherproof (IP66) housing ensures reliable operation in extreme conditions.

Advantages

This camera offers superior 150dB WDR for clear images in high-contrast scenes, 360° endless pan and wide tilt range for comprehensive coverage, and intelligent video analytics for proactive security. The compact design supports PoE+ for easy installation.

Suitable for

• Perimeter surveillance of commercial and industrial sites
• City surveillance and traffic monitoring
• Critical infrastructure protection
• Large outdoor areas requiring PTZ control

Key specifications

• Image Sensor: 1/2.8" Progressive Scan CMOS
• Max Resolution: 1920x1080 (2MP)
• Optical Zoom: 12x (4.44~52.9mm)
• Digital Zoom: 32x
• Pan Range: 360° Endless
• Tilt Range: -15° to 195°
• Max Frame Rate: 60fps @ 1920x1080
• Video Compression: H.265, H.264, MJPEG
• WDR: 150dB
• Day & Night: Auto (ICR)
• Min Illumination: Color 0.015 Lux, B/W 0.0015 Lux
• Network: RJ-45 10/100BASE-T
• Local Storage: SD/SDHC/SDXC slot (Max 512GB)
• Power: PoE+ (IEEE 802.3at), 12V DC
• IP Rating: IP66
• IK Rating: IK10
• Operating Temperature: -50°C to +55°C
• Audio: Two-way (Mic in/Line in, Line out)
• Analytics: Object detection, directional detection, defocus detection, fog detection, virtual line, enter/exit, loitering, tampering, motion detection, sound detection, shock detection

Recommendations

For optimal performance, use a PoE+ switch or injector. Ensure proper mounting to achieve full pan/tilt range. The camera is suitable for outdoor use in extreme climates.
