HARTING Han 3A capa M20 saída de cabo reta cinzento-poeira 19200031440

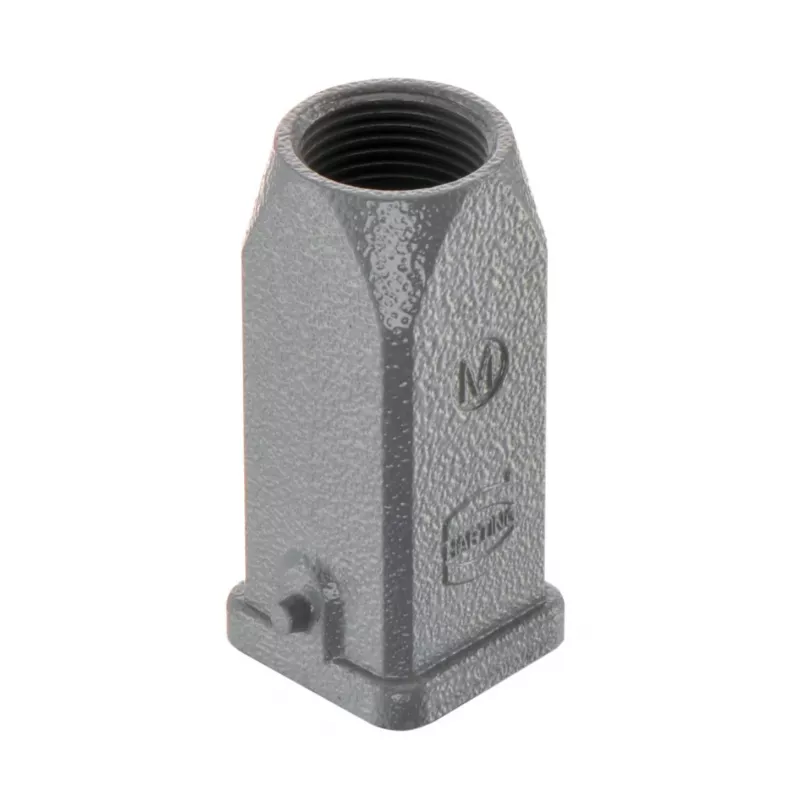

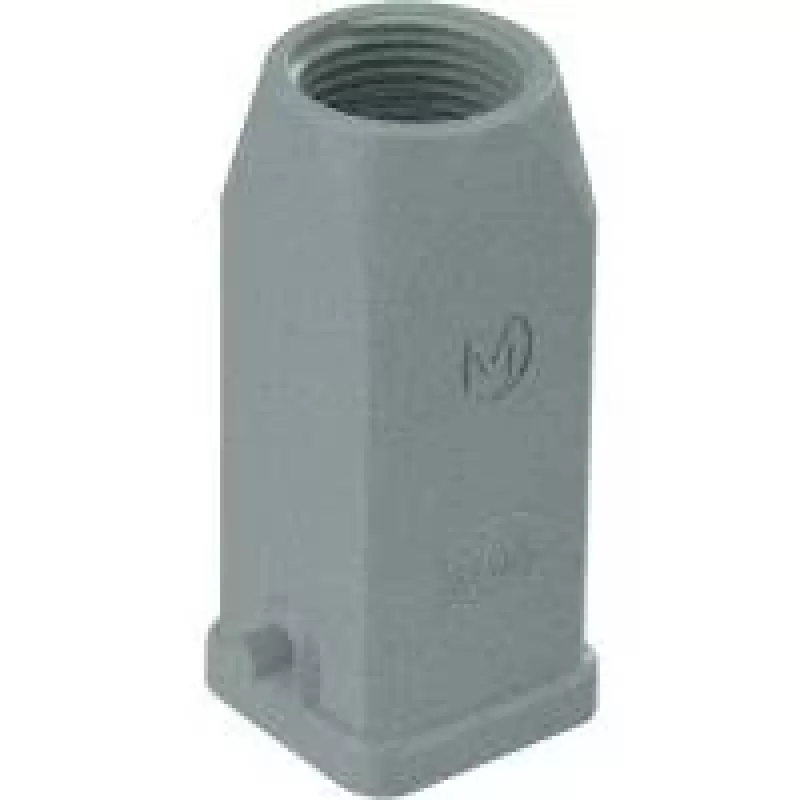

Industrial connector hood from the HARTING Han 3A series, engineered for reliable cable termination in demanding environments. Its straight cable outlet with M20 gland thread ensures secure and tidy cable routing, while the die-cast aluminium housing with powder coating offers excellent mechanical protection.

Advantages

The single locking lever provides quick and secure mating with compatible bases, reducing installation time. The hood meets IP65/IP67 protection when mated, shielding connections from dust and water. A wide operating temperature range of -40 °C to +125 °C allows use in extreme conditions. NBR gasket ensures long-term sealing performance.

Suitable for

• Industrial machinery and automation systems
• Outdoor electrical enclosures
• Transportation and railway applications
• Harsh environment connectivity requiring high IP ratings

Key specifications

• Series: Han 3A
• Housing type: Hood
• Cable outlet: Straight
• Cable gland thread: M20
• Material: Die-cast aluminium, powder-coated
• Colour: Dusty grey (RAL 7037)
• Locking: Single lever
• Protection (mated): IP65 / IP67
• Temperature range: -40 °C to +125 °C
• Approvals: UL, CSA, DNV GL
• RoHS compliant

Recommendations

Pair with HARTING Han 3A inserts and bases for a complete connector solution. Ensure proper cable gland installation to maintain IP rating. Ideal for new installations or retrofitting existing Han 3A systems.
