HAZET 2128N-1 Conjunto de brocas helicoidais HSS 25 peças DIN 338

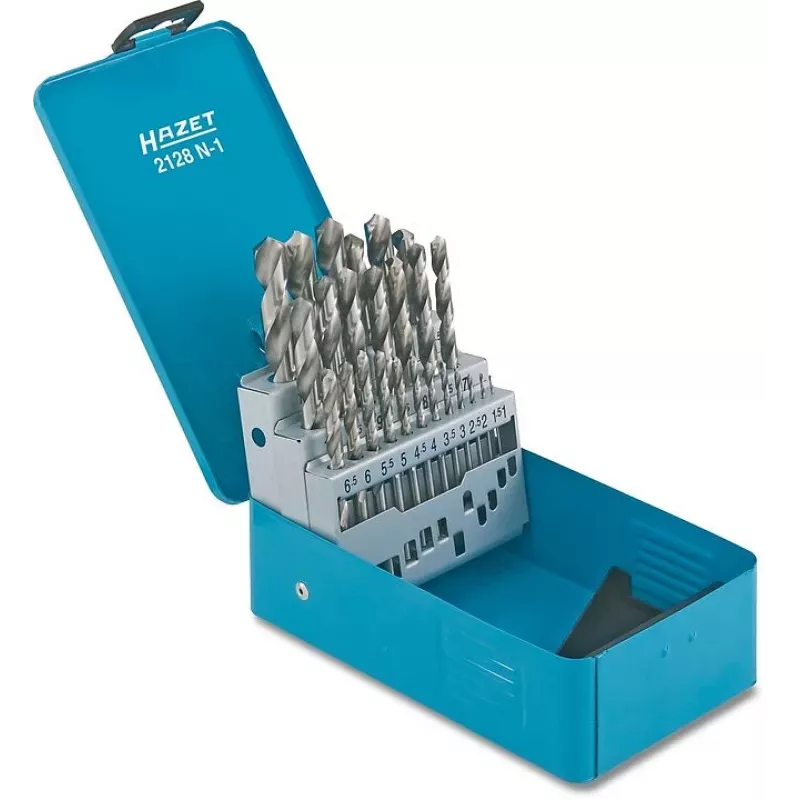

The HAZET 2128N-1 is a 25-piece spiral drill bit set made from HSS. The set includes right-hand cutting drill bits in sizes from 1.0 to 13.0 mm in 0.5 mm increments, each with a cylindrical shank and h8 diameter tolerance. The self-centering drill tip with conical relief grind according to DIN 1412 and 118° point angle allows precise drilling without center punching. The bits are manufactured to DIN 338 and are supplied in a robust metal cassette.

Key features

• 25-piece set of HSS spiral drill bits
• Right-hand cutting
• Self-centering drill tip with conical relief grind according to DIN 1412
• 118° point angle
• Two cutting edges and two spiral flutes
• Cylindrical shanks with h8 diameter tolerance
• Manufactured to DIN 338
• Metal cassette for storage

Specifications

• Brand: HAZET
• MPN: 2128N-1
• Product type: Spiral Drill Bit Set
• Drill bit material: HSS
• Quantity per pack: 25 pc(s)
• Included sizes: 1 mm, 1.5 mm, 2 mm, 2.5 mm, 3 mm, 3.5 mm, 4 mm, 4.5 mm, 5 mm, 5.5 mm, 6 mm, 6.5 mm, 7 mm, 7.5 mm, 8 mm, 8.5 mm, 9 mm, 9.5 mm, 10 mm, 10.5 mm, 11 mm, 11.5 mm, 12 mm, 12.5 mm, 13 mm
• Container: Metal cassette
• EAN: 4000896218844
