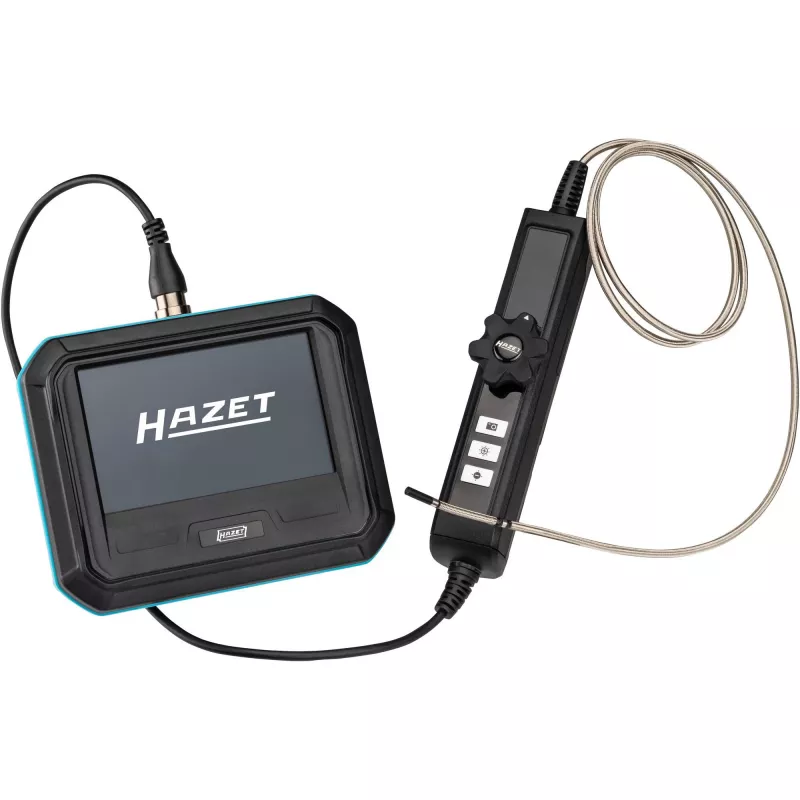

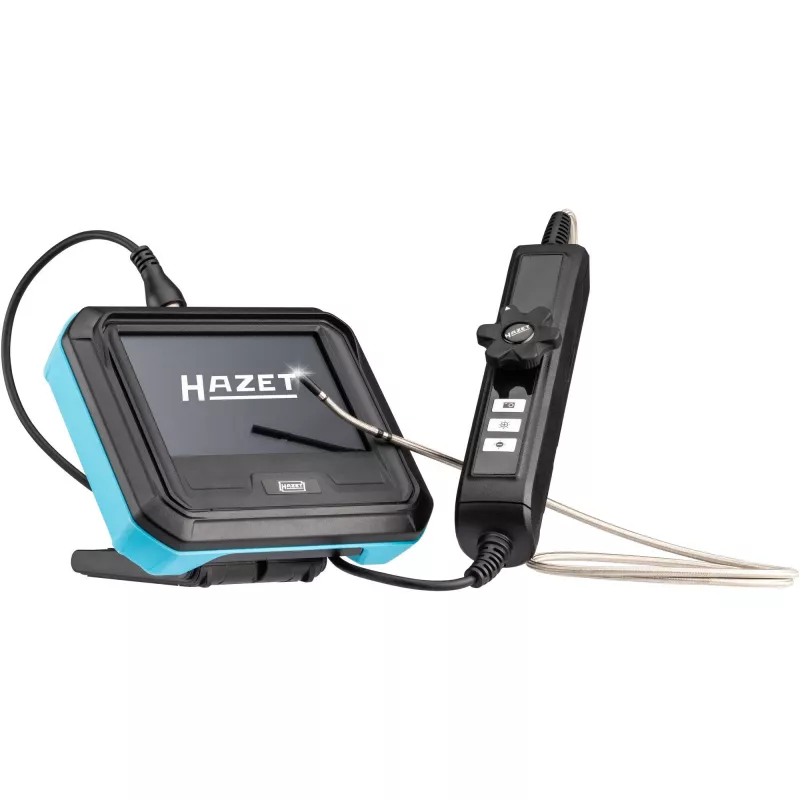

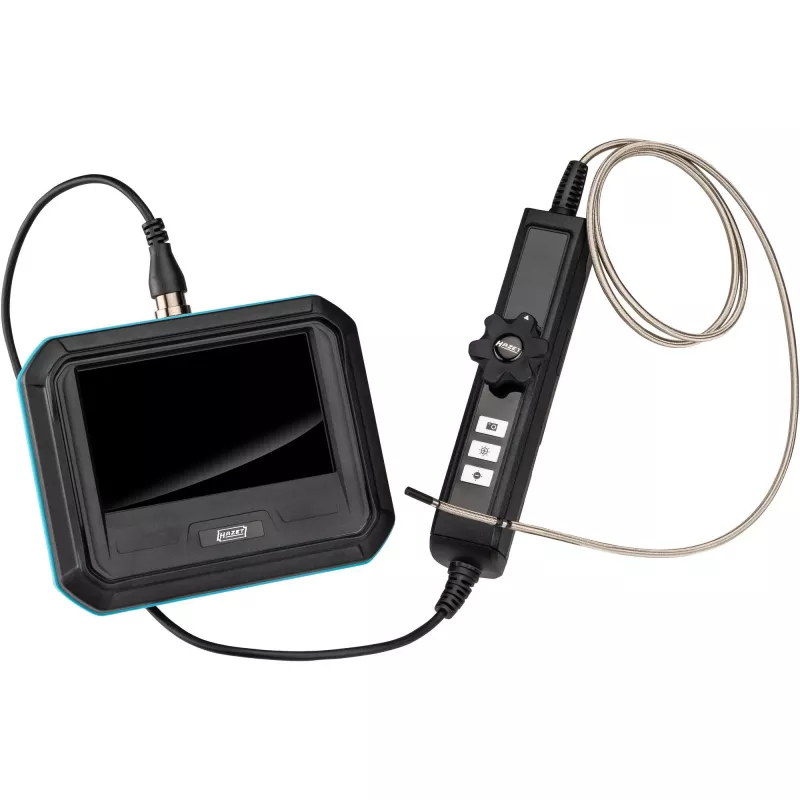

HAZET 4812-23/5AF sonda de endoscópio 3,9 mm diâmetro 1 m comprimento

Inspecting confined spaces, engine compartments, or hard-to-reach areas often requires disassembly or guesswork. The HAZET 4812-23/5AF endoscope probe solves this by providing a slim, flexible camera probe that fits through openings as small as 3.9 mm, delivering clear visuals without dismantling components.

Who is it for

Automotive technicians, maintenance engineers, and DIY enthusiasts who need to visually inspect inside engines, walls, pipes, or machinery. It is compatible with the HAZET 4812-1/5 endoscope system, making it a direct replacement or additional probe for existing setups.

Main features

• Probe diameter: 3.9 mm – fits into very narrow openings
• Probe length: 1 m – reaches deep into cavities
• Flexible cable with reinforced construction for durability
• Integrated color camera with 640 x 480 pixel resolution
• 4 dimmable white LEDs for adjustable illumination
• IP67 waterproof rating on probe head and cable
• 60° field of view and 10–100 mm depth of field
• Operating temperature range: -10°C to +50°C

Specifications

• Brand: HAZET
• Model: 4812-23/5AF
• MPN: 4812-23/5AF
• EAN: 4000896249824
• Probe diameter: 3.9 mm
• Probe length: 1 m (1000 mm)
• Probe type: Flexible
• Camera type: Integrated color camera
• Image resolution: 640 x 480 pixels (VGA)
• Sensor type: CMOS
• Illumination: 4 dimmable LEDs
• Light source color: White
• Waterproof rating: IP67 (probe head and cable)
• Field of view: 60°
• Depth of field: 10–100 mm
• Compatibility: HAZET Endoscope 4812-1/5 System
• Cable material: Reinforced flexible cable
• Operating temperature: -10°C to +50°C
• Storage temperature: -20°C to +60°C
• Connection type: Proprietary HAZET connector
• Articulation: Non-articulating
• Primary application: Visual inspection in confined spaces

Tips

To maximize image clarity, adjust the LED brightness using the dimming function on the connected HAZET endoscope unit. After use in wet or dusty environments, wipe the probe with a soft cloth and store it in a dry place within the recommended temperature range.
