HEINRICH KOPP detetor de movimento encastrar 808429007 180° branco puro IP20

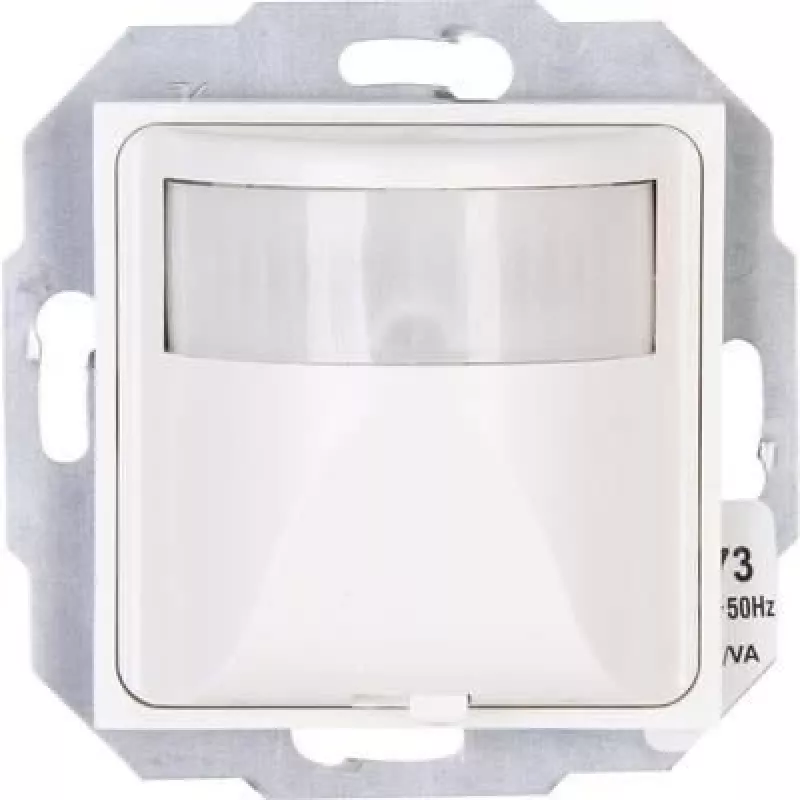

Flush-mounted motion detector with a 180° detection angle for automatic lighting control. Detects movement up to 9 m and switches connected loads up to 1000 W (incandescent/halogen) or 300 W (LED/CFL).

Advantages

Adjustable time delay from 10 seconds to 15 minutes and brightness threshold from 3 to 2000 lux allow precise adaptation to the environment. Low standby consumption below 0.5 W and UV-stabilized thermoplastic housing ensure durability.

Suitable for

• Indoor flush-mounted installation in walls or ceilings
• Automatic lighting in hallways, stairwells, and utility rooms
• Switching incandescent, halogen, LED, and CFL lamps

Key specifications

• Detection angle: 180°
• Detection range: up to 9 m
• Max. switching capacity: 1000 W incandescent/halogen, 300 W LED/CFL
• Time delay: approx. 10 s – 15 min
• Brightness threshold: approx. 3 – 2000 lux
• Operating voltage: 230 V AC, 50 Hz
• IP rating: IP20
• Recommended installation height: 1.0 – 1.8 m
• Material: UV-stabilized thermoplastic
• Operating temperature: -20 °C to +40 °C
• Connection type: 3-wire (L, N, switched L)
• Switching type: relay (normally open contact)

Recommendations

For optimal coverage, install at a height of 1.0 to 1.8 m in a location with a clear view of the detection area. Adjust time and brightness settings after installation to match the specific usage pattern.
