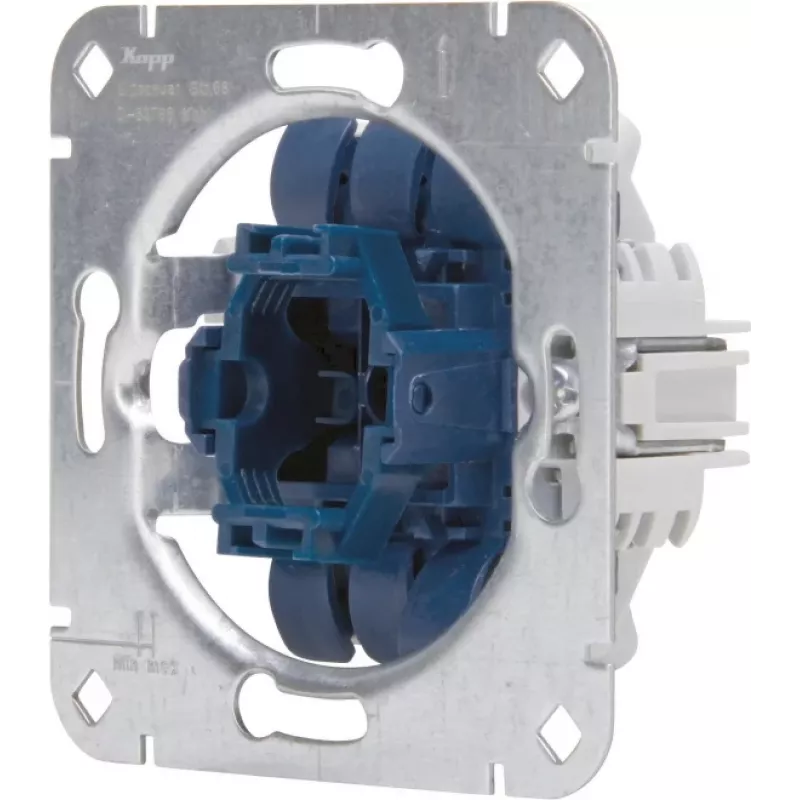

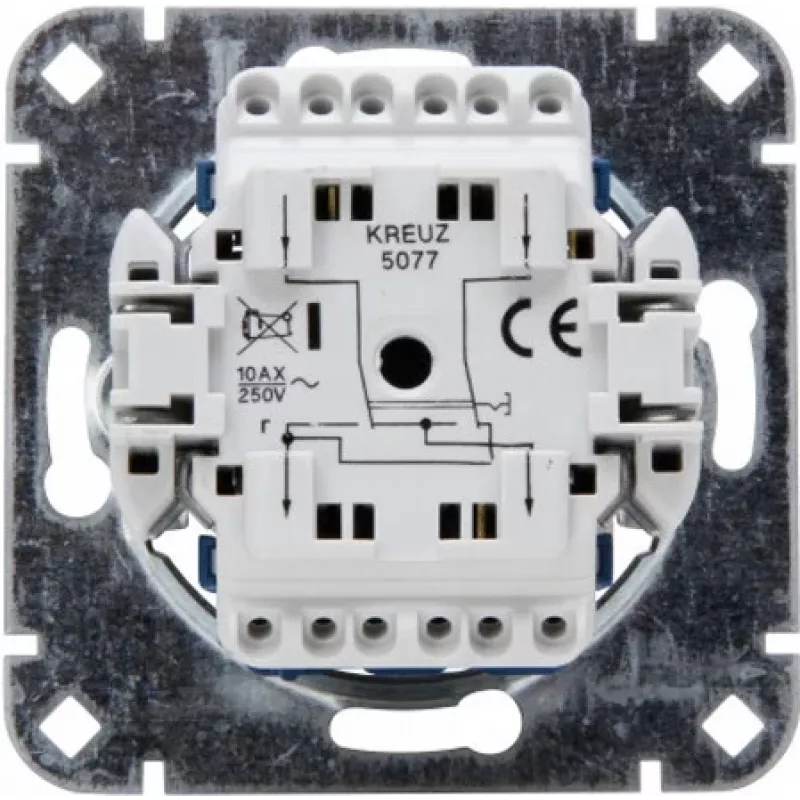

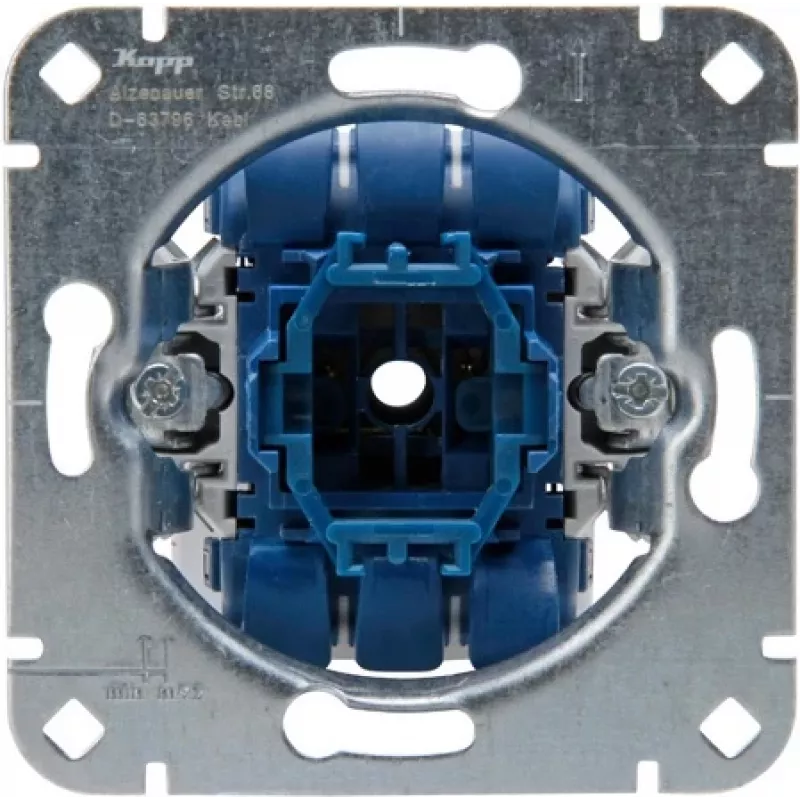

HEINRICH KOPP 507700003 mecanismo de interruptor de comutação para encastrar, alumínio, 250V, 10AX, IP20, terminais de parafuso, cobertura e moldura não incluídas

Electricians and installers replacing or building intermediate switching circuits in residential or commercial buildings can use this flush-mounted base. It supports four-way switching when combined with two changeover switches, making it suitable for controlling a single light from three or more locations such as long corridors, staircases, or large rooms.

Key specifications

• Product type: Intermediate switch base
• Mounting type: Flush-mounted
• Switch function: Intermediate switch
• Rated voltage: 250 V AC
• Rated current: 10 A
• Rated current (inductive load): 10 AX
• Ingress protection: IP20
• Colour: Aluminium
• Cover/rocker included: No
• Frame included: No
• Connection type: Screw terminals
• Number of terminals: 4
• Application environment: Indoor

Why choose it

The base is designed for use with KOPP switch covers and frames from the same design series, allowing a consistent look across the installation. Screw terminals provide a secure and reliable connection for solid or stranded conductors.

Ideal use cases

• Controlling lighting from three or more switch points in hallways and staircases
• Replacing worn or damaged intermediate switch bases in existing installations
• New construction and renovation projects where flush-mounted wiring is used

Good to know

The aluminium finish matches other KOPP aluminium switchgear for a coordinated appearance. The base is intended for indoor use only. A cover plate and rocker must be ordered separately according to the desired design series.
