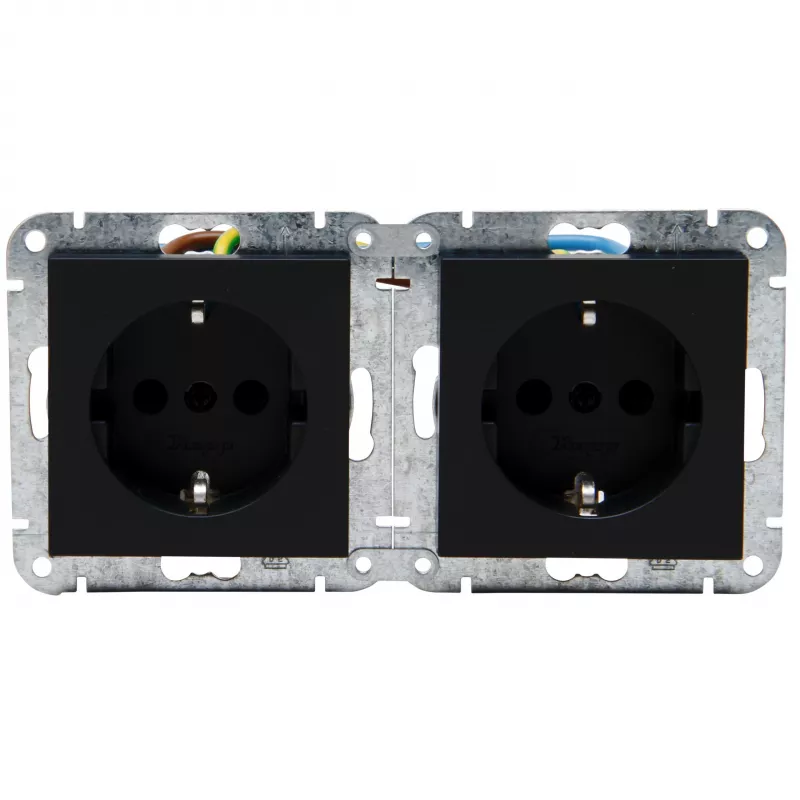

HEINRICH KOPP HK07 KombiQuick tomada Schuko dupla, encastrar, horizontal, preto 133750003

The HK07 KombiQuick double Schuko socket from HEINRICH KOPP offers a space-efficient horizontal design for flush-mounted installation. Unlike standard vertical sockets, this orientation suits installations where wall space is limited or where a low-profile appearance is preferred.

Highlights

• Two Schuko sockets (Type F, CEE 7/3) in a single flush-mounted unit
• Horizontal orientation for discreet integration
• Black finish (RAL 9005 Jet Black) blends with dark wall plates
• Rated for 250 V AC, 16 A

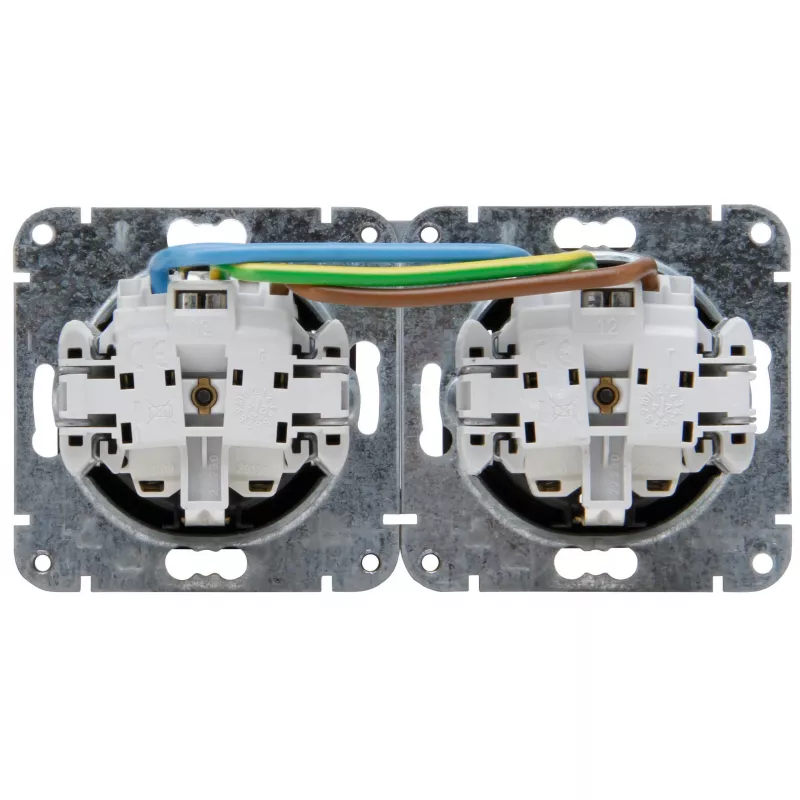

• Screw terminals for secure wiring
• Thermoplastic construction, halogen-free

In daily use

The KombiQuick series is designed for straightforward installation in standard flush-mounted boxes. The screw terminals accept solid or stranded conductors, and the housing is made from durable thermoplastic. With no enhanced contact protection, it is intended for use in areas where child safety is not a primary concern.

Full specifications

• Product type: Double Schuko socket
• Mounting type: Flush-mounted (Unterputz)
• Orientation: Horizontal
• Colour: Black (RAL 9005)
• Rated voltage: 250 V AC
• Rated current: 16 A
• Socket standard: Schuko (Type F, CEE 7/3)
• Number of sockets: 2
• Connection type: Screw terminals
• Material: Thermoplastic
• Protection class: IP20
• Child protection: No
• Series: KombiQuick HK07
• Halogen-free: Yes

Final note

The HK07 KombiQuick is a practical choice for residential and commercial installations where a horizontal double socket is required.
