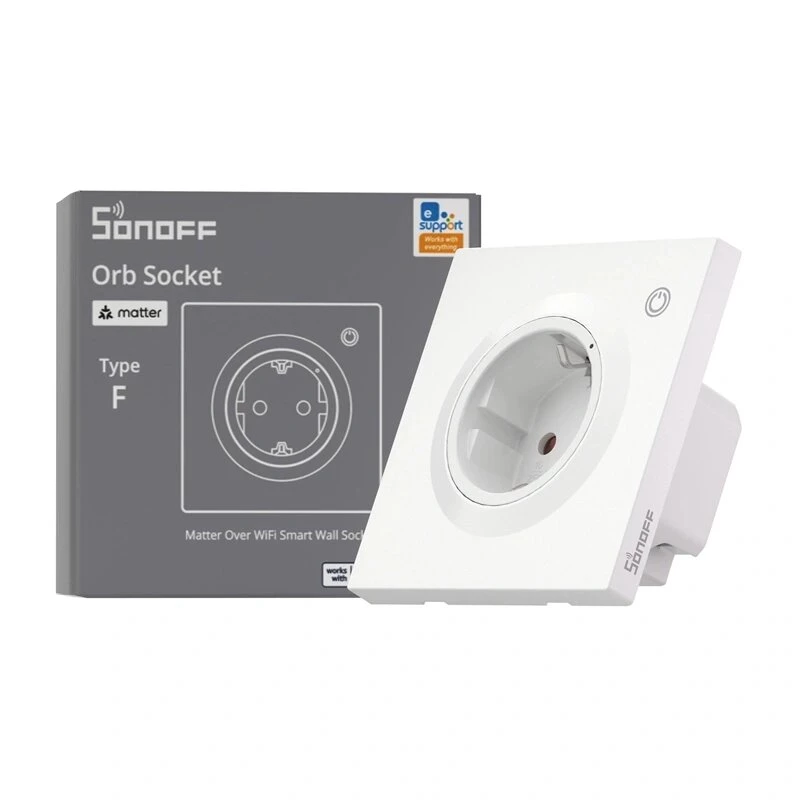

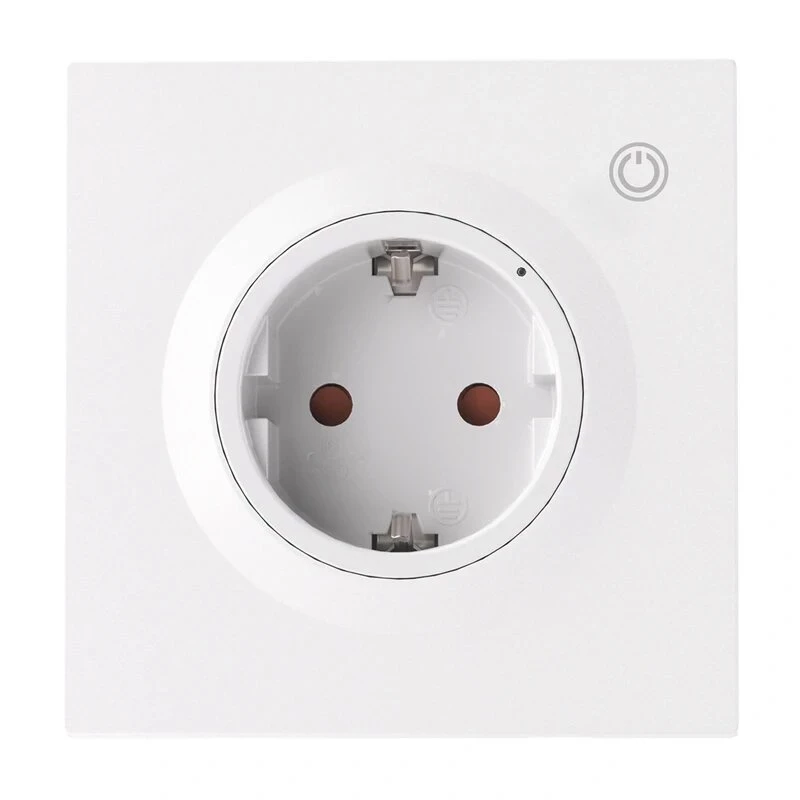

Sonoff WS01TPF-E Tomada de parede inteligente WiFi (tipo F)

The Sonoff WS01TPF-E is a WiFi smart wall socket (Type F) that turns a standard wall socket into a smart hub for managing energy and devices. It supports the Matter standard and 2.4 GHz WiFi, making it compatible with Apple Home, Google Home, Amazon Alexa, and Samsung SmartThings. It offers a maximum load of up to 4000 W and 16 A, and allows you to monitor power consumption and create schedules.

Key features

• Matter support for integration with Apple Home, Google Home, Amazon Alexa, Samsung SmartThings, and Home Assistant
• Remote control via smartphone and voice commands
• Real-time energy consumption monitoring and cost analysis
• Schedules, cyclic mode, random operation, and smart scenes
• Local control works without server connection
• Protection against overload, overvoltage, and overcharging
• Heat-resistant PC casing and child lock
• Durable relay with lifespan up to 20,000 cycles
• Corrosion resistance confirmed by salt spray chamber testing

Specifications

• Brand: Sonoff
• Model: WS01TPF-E
• Color: White
• Wireless connectivity: IEEE 802.11 b/g/n 2.4 GHz
• Rated voltage: 100–250 V ~ 50/60 Hz
• Maximum load: 4000 W
• Maximum current: 16 A
• Standby power consumption: <1 W
• Housing material: PC
• Operating temperature: -10°C to 40°C
• Operating humidity: 5–95% RH (non-condensing)
• Recommended wire gauge: 1.5 mm² to 2.5 mm² (SOL/STR copper wires only)
• Dimensions: 86 × 86 × 42.5 mm
• Compatible mounting boxes: Standard 86-type mounting boxes, European 60 mm diameter
• Compatible plugs: F, C, and F & E (CEE 7/7)
